    • Turnbuckles
    • Body Only - Drop Forged Turnbuckles
    • Body Only Drop Forged Turnbuckles

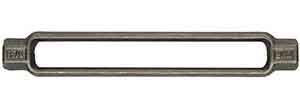

    Body Only Drop Forged Turnbuckles
    • Body Only Drop Forged Turnbuckles Body Only Drop Forged Turnbuckles
    Body Only Drop Forged Turnbuckles

    Body Only Drop Forged Turnbuckles

    • $54.26
    Turnbuckles Meet Performance Requirements of
    ASTM Specification F1145-92 Type 1 Grade 1 (Supercedes FF-T-791B)
    Available with hot galvanized or self-colored finish.


    American Flag
    Made in the USA!

    Hook Turnbuckle



    Maximum load ratings are based on a straight vertical lift in a gradually increasing manner.
    Any deviations as angular lifts, shock loads, modification of the basic part, etc., will result in drastically reduced maximum loads.
    • Weight
      4.0000 lbs
    • SKU
      04026 6
    Diameter &
    Take-up AxC
    Closed
    Length
    Part Number
    Drilled & Tapped
    Self Colored
    Galvanized
    1/4" x 4"
    4-13/16"
    03805 8
    03955 0
    5/16" x 4-1/2"
    5-9/16"
    03810 2
    03960 4
    3/8" x 6"
    7-1/8"
    03815 7
    03965 9
    1/2" x 2"
    3-1/2"
    03820 1
    03970 3
    1/2" x 6"
    7-1/2"
    03823 2
    03973 4
    1/2" x 9"
    10-1/2"
    03826 3
    03976 5
    1/2" x 12"
    13-1/2"
    03829 4
    03979 6
    5/8" x 6"
    7-7/8"
    03834 8
    03984 0
    5/8" x 9"
    10-7/8"
    03837 9
    03987 1
    5/8" x 12"
    13-7/8"
    03840 9
    03990 1
    5/8" x 18"
    20-1/4"
    03843 0
    03993 2
    3/4" x 6"
    8-1/4"
    03848 5
    03998 7
    3/4" x 9"
    11-1/4"
    03851 5
    04001 3
    3/4" x 12"
    14-1/4"
    03854 6
    04004 4
    3/4" x 18"
    20-1/4"
    03857 7
    04007 5
    7/8" x 6"
    8-5/8"
    03862 1
    04012 9
    7/8" x 12"
    14-5/8"
    03865 2
    04015 0
    7/8" x 18"
    20-5/8"
    03868 3
    04018 1
    1" x 6"
    9"
    03873 7
    04023 5
    1" x 12"
    15"
    03876 8
    04026 6
    1" x 18"
    21"
    03879 9
    04029 7
    1-1/8" x 6"
    9"
    03884 3
    04034 1
    1-1/8" x 12"
    15"
    03887 4
    04037 2
    1-1/4" x 6"
    9-3/4"
    03892 8
    04042 6
    1-3/8" x 6"
    9-3/4"
    03897 3
    04047 1
    1-1/2" x 6"
    10-3/8"
    03902 4
    04052 5
    04052 5 03902 4 04047 1 03897 3 04042 6 03892 8 04037 2 03887 4 04034 1 03884 3 04029 7 03879 9 03876 8 04023 5 03873 7 04018 1 03868 3 04015 0 03865 2 04012 9 03862 1 04007 5 03857 7 04004 4 03854 6 04001 3 03851 5 03998 7 03848 5 03993 2 03843 0 03990 1 03840 9 03987 1 03837 9 03984 0 03834 8 03979 6 03829 4 03976 5 03826 3 03973 4 03823 2 03970 3 03820 1 03965 9 03815 7 03960 4 03810 2 03955 0 03805 8 04026 6
    04052 5 03902 4 04047 1 03897 3 04042 6 03892 8 04037 2 03887 4 04034 1 03884 3 04029 7 03879 9 03876 8 04023 5 03873 7 04018 1 03868 3 04015 0 03865 2 04012 9 03862 1 04007 5 03857 7 04004 4 03854 6 04001 3 03851 5 03998 7 03848 5 03993 2 03843 0 03990 1 03840 9 03987 1 03837 9 03984 0 03834 8 03979 6 03829 4 03976 5 03826 3 03973 4 03823 2 03970 3 03820 1 03965 9 03815 7 03960 4 03810 2 03955 0 03805 8 04026 6
    • Part Number
      03862 1, 03810 2, 03960 4, 03815 7, 03965 9, 03851 5, 04001 3, 03848 5, 03998 7, 03857 7, 04007 5, 03854 6, 03990 1, 03840 9, 04012 9, 03868 3, 04018 1, 03865 2, 04015 0, 03837 9, 03987 1, 03834 8, 03984 0, 03843 0, 03993 2, 04004 4, 03902 4, 03823 2, 03973 4, 03820 1, 03970 3, 03829 4, 03979 6, 03873 7, 04023 5, 03879 9, 04029 7, 03876 8, 03976 5, 03826 3, 03897 3, 04052 5, 04047 1, 03884 3, 04034 1, 03887 4, 04037 2, 03892 8, 04042 6, 03805 8, 03955 0, 04026 6
    • Description
      1-1/2" x 6" Self Colored Body Only - Drop Forged Turnbuckle, 1" x 6" Self Colored Body Only - Drop Forged Turnbuckle, 1" x 6" Galvanized Body Only - Drop Forged Turnbuckle, 7/8" x 18" Self Colored Body Only - Drop Forged Turnbuckle, 7/8" x 18" Galvanized Body Only - Drop Forged Turnbuckle, 7/8" x 12" Self Colored Body Only - Drop Forged Turnbuckle, 7/8" x 12" Galvanized Body Only - Drop Forged Turnbuckle, 7/8" x 6" Self Colored Body Only - Drop Forged Turnbuckle, 7/8" x 6" Galvanized Body Only - Drop Forged Turnbuckle, 3/4" x 18" Self Colored Body Only - Drop Forged Turnbuckle, 3/4" x 18" Galvanized Body Only - Drop Forged Turnbuckle, 3/4" x 12" Self Colored Body Only - Drop Forged Turnbuckle, 1" x 12" Galvanized Body Only - Drop Forged Turnbuckle, 1" x 12" Self Colored Body Only - Drop Forged Turnbuckle, 1-1/2" x 6" Galvanized Body Only - Drop Forged Turnbuckle, 1-3/8" x 6" Self Colored Body Only - Drop Forged Turnbuckle, 1-3/8" x 6" Galvanized Body Only - Drop Forged Turnbuckle, 1-1/4" x 6" Self Colored Body Only - Drop Forged Turnbuckle, 1-1/4" x 6" Galvanized Body Only - Drop Forged Turnbuckle, 1-1/8" x 12" Self Colored Body Only - Drop Forged Turnbuckle, 1-1/8" x 12" Galvanized Body Only - Drop Forged Turnbuckle, 1-1/8" x 6" Self Colored Body Only - Drop Forged Turnbuckle, 1-1/8" x 6" Galvanized Body Only - Drop Forged Turnbuckle, 1" x 18" Self Colored Body Only - Drop Forged Turnbuckle, 1" x 18" Galvanized Body Only - Drop Forged Turnbuckle, 3/4" x 12" Galvanized Body Only - Drop Forged Turnbuckle, 3/4" x 9" Self Colored Body Only - Drop Forged Turnbuckle, 1/2" x 9" Self Colored Body Only - Drop Forged Turnbuckle, 1/2" x 9" Galvanized Body Only - Drop Forged Turnbuckle, 1/2" x 6" Self Colored Body Only - Drop Forged Turnbuckle, 1/2" x 6" Galvanized Body Only - Drop Forged Turnbuckle, 1/2" x 2" Self Colored Body Only - Drop Forged Turnbuckle, 1/2" x 2" Galvanized Body Only - Drop Forged Turnbuckle, 3/8" x 6" Self Colored Body Only - Drop Forged Turnbuckle, 3/8" x 6" Galvanized Body Only - Drop Forged Turnbuckle, 5/16" x 4-1/2" Self Colored Body Only - Drop Forged Turnbuckle, 5/16" x 4-1/2" Galvanized Body Only - Drop Forged Turnbuckle, 1/4" x 4" Self Colored Body Only - Drop Forged Turnbuckle, 1/2" x 12" Galvanized Body Only - Drop Forged Turnbuckle, 1/2" x 12" Self Colored Body Only - Drop Forged Turnbuckle, 3/4" x 9" Galvanized Body Only - Drop Forged Turnbuckle, 3/4" x 6" Self Colored Body Only - Drop Forged Turnbuckle, 3/4" x 6" Galvanized Body Only - Drop Forged Turnbuckle, 5/8" x 18" Self Colored Body Only - Drop Forged Turnbuckle, 5/8" x 18" Galvanized Body Only - Drop Forged Turnbuckle, 5/8" x 12" Self Colored Body Only - Drop Forged Turnbuckle, 5/8" x 12" Galvanized Body Only - Drop Forged Turnbuckle, 5/8" x 9" Self Colored Body Only - Drop Forged Turnbuckle, 5/8" x 9" Galvanized Body Only - Drop Forged Turnbuckle, 5/8" x 6" Self Colored Body Only - Drop Forged Turnbuckle, 5/8" x 6" Galvanized Body Only - Drop Forged Turnbuckle, 1/4" x 4" Galvanized Body Only - Drop Forged Turnbuckle
    • Brand
      Chicago Hardware, Made in the USA
    Part Number Description Brand Weight Price Quantity
    04026 6 1" x 12" Galvanized Body Only - Drop Forged Turnbuckle Chicago Hardware 4 lbs $54.26 + -
    03876 8 1" x 12" Self Colored Body Only - Drop Forged Turnbuckle Chicago Hardware 4 lbs $43.40 + -
    04029 7 1" x 18" Galvanized Body Only - Drop Forged Turnbuckle Chicago Hardware 6 lbs $87.99 + -
    03879 9 1" x 18" Self Colored Body Only - Drop Forged Turnbuckle Chicago Hardware 6 lbs $70.45 + -
    04023 5 1" x 6" Galvanized Body Only - Drop Forged Turnbuckle Chicago Hardware 3 lbs $36.22 + -
    03873 7 1" x 6" Self Colored Body Only - Drop Forged Turnbuckle Chicago Hardware 3 lbs $29.02 + -
    03979 6 1/2" x 12" Galvanized Body Only - Drop Forged Turnbuckle Chicago Hardware 1 lbs $23.98 + -
    03829 4 1/2" x 12" Self Colored Body Only - Drop Forged Turnbuckle Chicago Hardware 1 lbs $19.14 + -
    03970 3 1/2" x 2" Galvanized Body Only - Drop Forged Turnbuckle Chicago Hardware 0.35 lbs $13.61 + -
    03820 1 1/2" x 2" Self Colored Body Only - Drop Forged Turnbuckle Chicago Hardware 0.35 lbs $10.89 + -
    03973 4 1/2" x 6" Galvanized Body Only - Drop Forged Turnbuckle Chicago Hardware 0.66 lbs $14.04 + -
    03823 2 1/2" x 6" Self Colored Body Only - Drop Forged Turnbuckle Chicago Hardware 0.66 lbs $11.15 + -
    03976 5 1/2" x 9" Galvanized Body Only - Drop Forged Turnbuckle Chicago Hardware 0.85 lbs $20.58 + -
    03826 3 1/2" x 9" Self Colored Body Only - Drop Forged Turnbuckle Chicago Hardware 0.85 lbs $16.50 + -
    03955 0 1/4" x 4" Galvanized Body Only - Drop Forged Turnbuckle Chicago Hardware 0.15 lbs $8.90 + -
    03805 8 1/4" x 4" Self Colored Body Only - Drop Forged Turnbuckle Chicago Hardware 0.15 lbs $7.08 + -
    04042 6 1-1/4" x 6" Galvanized Body Only - Drop Forged Turnbuckle Chicago Hardware 4.5 lbs $58.91 + -
    03892 8 1-1/4" x 6" Self Colored Body Only - Drop Forged Turnbuckle Chicago Hardware 4.5 lbs $47.14 + -
    04037 2 1-1/8" x 12" Galvanized Body Only - Drop Forged Turnbuckle Chicago Hardware 5 lbs $88.96 + -
    03887 4 1-1/8" x 12" Self Colored Body Only - Drop Forged Turnbuckle Chicago Hardware 5 lbs $71.22 + -
    04034 1 1-1/8" x 6" Galvanized Body Only - Drop Forged Turnbuckle Chicago Hardware 3 lbs $43.80 + -
    03884 3 1-1/8" x 6" Self Colored Body Only - Drop Forged Turnbuckle Chicago Hardware 3 lbs $34.99 + -
    04047 1 1-3/8" x 6" Galvanized Body Only - Drop Forged Turnbuckle Chicago Hardware 4.5 lbs $66.01 + -
    04052 5 1-1/2" x 6" Galvanized Body Only - Drop Forged Turnbuckle Chicago Hardware 7 lbs $92.82 + -
    03897 3 1-3/8" x 6" Self Colored Body Only - Drop Forged Turnbuckle Chicago Hardware 4.5 lbs $52.81 + -
    03902 4 1-1/2" x 6" Self Colored Body Only - Drop Forged Turnbuckle Chicago Hardware 7 lbs $74.26 + -
    04004 4 3/4" x 12" Galvanized Body Only - Drop Forged Turnbuckle Chicago Hardware 2.5 lbs $42.04 + -
    03854 6 3/4" x 12" Self Colored Body Only - Drop Forged Turnbuckle Chicago Hardware 2.5 lbs $33.67 + -
    04007 5 3/4" x 18" Galvanized Body Only - Drop Forged Turnbuckle Chicago Hardware 3.4 lbs $63.10 + -
    03857 7 3/4" x 18" Self Colored Body Only - Drop Forged Turnbuckle Chicago Hardware 3.4 lbs $50.50 + -
    03998 7 3/4" x 6" Galvanized Body Only - Drop Forged Turnbuckle Chicago Hardware 1.5 lbs $23.18 + -
    03848 5 3/4" x 6" Self Colored Body Only - Drop Forged Turnbuckle Chicago Hardware 1.5 lbs $18.60 + -
    04001 3 3/4" x 9" Galvanized Body Only - Drop Forged Turnbuckle Chicago Hardware 2 lbs $27.71 + -
    03851 5 3/4" x 9" Self Colored Body Only - Drop Forged Turnbuckle Chicago Hardware 2 lbs $22.19 + -
    03965 9 3/8" x 6" Galvanized Body Only - Drop Forged Turnbuckle Chicago Hardware 0.4 lbs $12.46 + -
    03815 7 3/8" x 6" Self Colored Body Only - Drop Forged Turnbuckle Chicago Hardware 0.4 lbs $9.94 + -
    03960 4 5/16" x 4-1/2" Galvanized Body Only - Drop Forged Turnbuckle Chicago Hardware 0.25 lbs $11.90 + -
    03810 2 5/16" x 4-1/2" Self Colored Body Only - Drop Forged Turnbuckle Chicago Hardware 0.25 lbs $9.53 + -
    03990 1 5/8" x 12" Galvanized Body Only - Drop Forged Turnbuckle Chicago Hardware 1.75 lbs $28.40 + -
    03840 9 5/8" x 12" Self Colored Body Only - Drop Forged Turnbuckle Chicago Hardware 1.75 lbs $22.66 + -
    03993 2 5/8" x 18" Galvanized Body Only - Drop Forged Turnbuckle Chicago Hardware 3.5 lbs $63.09 + -
    03843 0 5/8" x 18" Self Colored Body Only - Drop Forged Turnbuckle Chicago Hardware 3.5 lbs $50.50 + -
    03984 0 5/8" x 6" Galvanized Body Only - Drop Forged Turnbuckle Chicago Hardware 1 lbs $17.24 + -
    03834 8 5/8" x 6" Self Colored Body Only - Drop Forged Turnbuckle Chicago Hardware 1 lbs $13.84 + -
    03987 1 5/8" x 9" Galvanized Body Only - Drop Forged Turnbuckle Chicago Hardware 1.5 lbs $24.75 + -
    03837 9 5/8" x 9" Self Colored Body Only - Drop Forged Turnbuckle Chicago Hardware 1.5 lbs $19.82 + -
    04015 0 7/8" x 12" Galvanized Body Only - Drop Forged Turnbuckle Chicago Hardware 3.1 lbs $44.87 + -
    03865 2 7/8" x 12" Self Colored Body Only - Drop Forged Turnbuckle Chicago Hardware 3.1 lbs $35.88 + -
    04018 1 7/8" x 18" Galvanized Body Only - Drop Forged Turnbuckle Chicago Hardware 6 lbs $87.99 + -
    03868 3 7/8" x 18" Self Colored Body Only - Drop Forged Turnbuckle Chicago Hardware 6 lbs $70.45 + -
    04012 9 7/8" x 6" Galvanized Body Only - Drop Forged Turnbuckle Chicago Hardware 2 lbs $29.43 + -
    03862 1 7/8" x 6" Self Colored Body Only - Drop Forged Turnbuckle Chicago Hardware 2 lbs $23.55 + -
    • $54.26

    • Privacy Policy
    • Shipping/Returns Policy
    • Covid-19
    • Terms & Conditions
    • Sitemap
    • SiteLock
    • IHS
    • AWRF

    Tulsa Chain.com, LLC

    12820 S. Memorial Dr., #126 Bixby, OK 74008


    TOLL FREE 866.392.2829 * PH 918.392.2829 * F 918.392.2833

    © 2008 - 2023 TulsaChain.com, LLC.. All rights reserved.

    Payment Options - Mastercard, Discover, Visa, American Express, and Paypal
    Mon - Thurs: 8:00 am - 5:00 pm
    Fri: 8:00 am - noon
    Closed for lunch 12:00 to 1:00
    Closed Saturday and Sunday
