Geared Beam Trolley

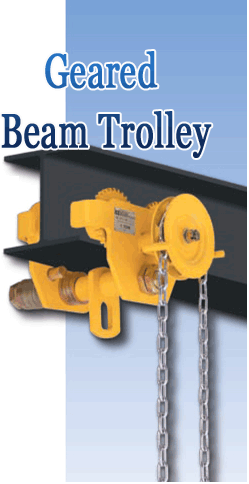

OZ Lifting Products geared beam trolley from Tulsa Chain
Oz Geared Beam Trolley


FEATURES

« Lightweight robust construction
« Adjustable to most I-Beams
    (see measurements below)
« Durable baked enamel paint
    protection
« Precision ball bearing trolley
    wheels
« Gearing provides positive load
    positioning along the beam

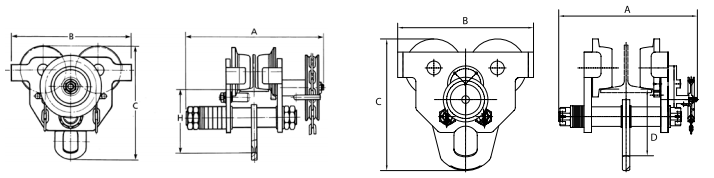

DIMENSIONS

oz lifting products geared beam trolley specifications
SPECIFICATIONS (1, 2, 3, 5 and 10 tons)
* Also available in 20 and 30 tons.
Product Code
OZ1GBT
OZ2GBT
OZ3GBT
OZ5GBT
OZ10GBT
Safe Working Load (lbs)
2,000
4,000
6,000
10,000
20,000
Adjustable Flange Width (in.)
2.52-7.99
3.46-7.99
4.01-7.99
4.49-7.99
4.92-7.99
Dimensional
Information (in.)
A
12.52
13.19
14.05
14.49
15.94
B
10.24
11.81
13.58
15.55
17.91
C
9.41
11.26
13.23
15.47
19.68
H
5.31
6.34
7.28
8.66
11.02
Minimum Radius Curve (ft.)
3.28
3.60
4.26
4.59
5.57
Net Weight (lbs)
44
62
95
136
234
OZ Lifting Products
OZ lifting products beam clamp
Categories | Clamps and Trolleys | Geared Beam Trolley
Displaying 1 through 1 of 1 products.

OZ Lifting Products  Geared Beam Trolley
Oz Lifting Products geared beam trolley from Tulsa Chain
ORDER BELOW
model
number
safe
working
load
adjustable
flange width
(In.)
maximum
radius curve
(Ft.)
dim A
(In.)
dim B
(In.)
dim C
(In.)
dim H
(In.)
ship
weight
(Lbs.)
Price
OZ1GBT
2000 LBS
2.52-7.99
3.28
12.52
10.24
9.41
5.31
44
$282.98
OZ2GBT
4000 LBS
3.46-7.99
3.6
13.19
11.81
11.26
6.34
62
$366.99
OZ3GBT
6000 LBS
4.01-7.99
4.26
14.05
13.58
13.23
7.28
95
$477.54
OZ5GBT
10,000 LBS
4.49-7.99
4.59
14.49
15.55
15.47
8.66
136
$787.06
OZ10GBT
20,000 LBS
4.92-7.99
5.57
15.94
17.91
19.68
11.02
234
$950.68

Price: Based on Selection
FREE Shipping on all orders over $399 This offer is valid in the continental United States only.
Orders Totaling $ .01 - $ 50.00 have a flat shipping rate of $10.00
Orders Totaling $ 50.01 - 398.99 will have exact UPS shipping charges applied
Orders Totaling Over $ 399.00 will have FREE Shipping! Some product exclusions apply.
See freight policy for details. You will receive an email with exact shipping charges after you place your order.
Or you can call 866-392-2829 for a quote on shipping before order is placed.Shipping: Calculated at Checkout
Status: In-Stock
