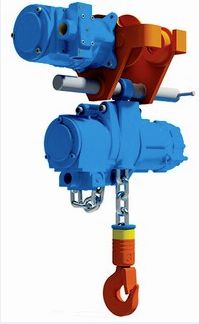

Air Chain Hoist w/ Motorized Trolley

air chain hoist with motorized trolley Pneumatic Air Chain Hoist w/ Motorized Trolley
  • 0.25t - 50 ton
  • A Heat Treated Polished Stainless Steel Cylinder within the Air Motor.
            The Cylinder is NOT Integral to the Housing, Allowing for Trouble-Free Maintenance.
  • Low-maintenance vane motor
  • Hook mount and lug mount
  • Meets ASME B30.16 standards
  • Upper hook with a safety factor of 5x the nominal load
  • A high quality urethane paint
  • Overload protection safety device is standard on 1t capacity and greater
  • Galvanized corrosion resistance load chain is standard
  • Available with spark resistant features : bronze, nickel, and stainless steel components
  • Standard Model ATS Air Chain Hoists are Acceptable for Division 1 & 2 Applications


Division 1
(Spark-Resistant air hoists are required)

Atmospheres containing hazardous concentrations of flammable gases, dusts, or fibers, continuously,
frequently or periodically, under normal operating conditions.

Division 2 (Standard air hoists are required)

Atmospheres, normally non-hazardous, in which a hazardous concentration of flammable gases, dusts,
or fibers, occurs when a container or handling system fails, or the ventilating system which normally
keeps the concentration non-hazardous fails.

PDF Files available for download:
Download Product Catalog
Adobe Reader or Adobe Acrobat are required to view these files.
You may download Adobe Acrobat here.

CALL TO ORDER 866.392.2829
