Body Only - Drop Forged Turnbuckles
|
Turnbuckles Meet Performance Requirements of
ASTM Specification F1145-92 Type 1 Grade 1 (Supercedes FF-T-791B) Available with hot galvanized or self-colored finish. |
|
|
|
|
Maximum load ratings are based on a straight vertical lift in a gradually increasing manner. |
|

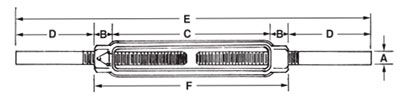

Diameter &
Take-up AxC |
Closed
Length |
Part Number
Drilled & Tapped |
|
|---|---|---|---|
|
Self Colored
|
Galvanized
|
||
|
1/4" x 4"
|
4-13/16"
|
03805 8
|
03955 0
|
|
5/16" x 4-1/2"
|
5-9/16"
|
03810 2
|
03960 4
|
|
3/8" x 6"
|
7-1/8"
|
03815 7
|
03965 9
|
|
1/2" x 2"
|
3-1/2"
|
03820 1
|
03970 3
|
|
1/2" x 6"
|
7-1/2"
|
03823 2
|
03973 4
|
|
1/2" x 9"
|
10-1/2"
|
03826 3
|
03976 5
|
|
1/2" x 12"
|
13-1/2"
|
03829 4
|
03979 6
|
|
5/8" x 6"
|
7-7/8"
|
03834 8
|
03984 0
|
|
5/8" x 9"
|
10-7/8"
|
03837 9
|
03987 1
|
|
5/8" x 12"
|
13-7/8"
|
03840 9
|
03990 1
|
|
5/8" x 18"
|
20-1/4"
|
03843 0
|
03993 2
|
|
3/4" x 6"
|
8-1/4"
|
03848 5
|
03998 7
|
|
3/4" x 9"
|
11-1/4"
|
03851 5
|
04001 3
|
|
3/4" x 12"
|
14-1/4"
|
03854 6
|
04004 4
|
|
3/4" x 18"
|
20-1/4"
|
03857 7
|
04007 5
|
|
7/8" x 6"
|
8-5/8"
|
03862 1
|
04012 9
|
|
7/8" x 12"
|
14-5/8"
|
03865 2
|
04015 0
|
|
7/8" x 18"
|
20-5/8"
|
03868 3
|
04018 1
|
|
1" x 6"
|
9"
|
03873 7
|
04023 5
|
|
1" x 12"
|
15"
|
03876 8
|
04026 6
|
|
1" x 18"
|
21"
|
03879 9
|
04029 7
|
|
1-1/8" x 6"
|
9"
|
03884 3
|
04034 1
|
|
1-1/8" x 12"
|
15"
|
03887 4
|
04037 2
|
|
1-1/4" x 6"
|
9-3/4"
|
03892 8
|
04042 6
|
|
1-3/8" x 6"
|
9-3/4"
|
03897 3
|
04047 1
|
|
1-1/2" x 6"
|
10-3/8"
|
03902 4
|
04052 5
|
