Fixed Spread Lifting Beam (Economy)

PRODUCT FEATURES:

Provides clearance in low headroom applications.
Bent bar bail for easy crane hook attachment.
Eye hooks with hook latches standard.
Fixed spread.
Complies with ASME standards.

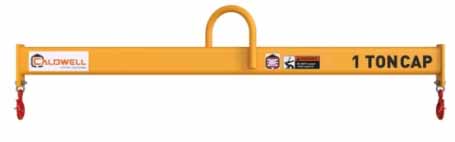

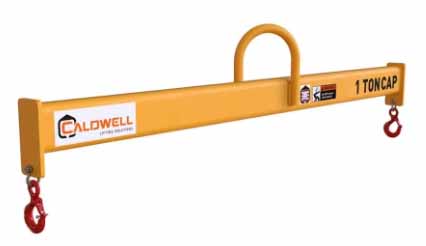

The Caldwell Fixed Spread Lifting Beam is a light weight solution for handling load of the same size.

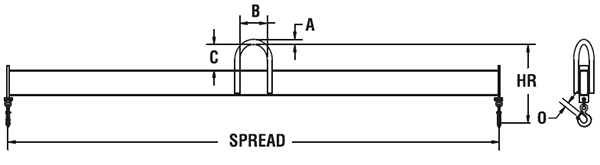

Part Number	Reference Number	Capacity (tons)	Spread (ft.)	A (in.)	B (in.)	C (in.)	O (in.)	Headroom (in.)	Weight (lbs.)
19-1/2-2	34-1917	1/2	2	.75	3	5	.89	13.31	20
19-1/2-3	34-1918	1/2	3	.75	3	5	.89	13.31	26
19-1/2-4	34-1901	1/2	4	.75	3	5	.89	13.31	33
19-1/2-6	34-1902	1/2	6	.75	3	5	.89	13.31	48
19-1/2-8	34-1903	1/2	8	.75	3	5	.89	14.31	75
19-1/2-10	34-1904	1/2	10	.75	3	5	.89	14.31	93
19-1-2	34-1919	1	2	1	6	5	.89	14.31	26
19-1-3	34-1920	1	3	1	6	5	.89	14.31	35
19-1-4	34-1905	1	4	1	6	5	.89	14.31	44
19-1-6	34-1906	1	6	1	6	5	.89	15.31	72
19-1-8	34-1907	1	8	1	6	5	.89	15.31	93
19-1-10	34-1908	1	10	1	6	5	.89	16.31	131
19-2-3	34-1921	2	3	1	6	5	1	16.75	45
19-2-4	34-1909	2	4	1	6	5	1	16.75	55
19-2-6	34-1910	2	6	1	6	5	1	19.75	108
19-2-8	34-1911	2	8	1	6	5	1	19.75	140
19-2-10	34-1912	2	10	1	6	5	1	19.75	188
19-3-3	34-1922	3	3	1.5	6	5	1	18.00	58
19-3-4	34-1913	3	4	1.5	6	5	1	20.00	87
19-3-6	34-1914	3	6	1.5	6	5	1	20.00	118
19-3-8	34-1915	3	8	1.5	6	5	1	20.00	222
19-3-10	34-1916	3	10	1.5	6	5	1	20.00	272

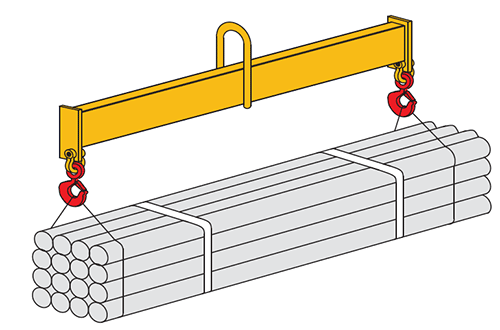

Operation

Caldwell Fixed spread Lifting Beam

Part Number	Description	Brand	Weight	Price	Quantity
19-2-10	2 Ton Cap. Model 19 Fixed Spread Lifting Beam	The Caldwell Group	188 lbs	$2364.00	+ -
19-3-3	3 Ton Cap. Model 19 Fixed Spread Lifting Beam	The Caldwell Group	58 lbs	$1302.00	+ -
19-3-6	3 Ton Cap. Model 19 Fixed Spread Lifting Beam	The Caldwell Group	118 lbs	$2206.00	+ -
19-3-4	3 Ton Cap. Model 19 Fixed Spread Lifting Beam	The Caldwell Group	87 lbs	$1774.00	+ -
19-3-8	3 Ton Cap. Model 19 Fixed Spread Lifting Beam	The Caldwell Group	222 lbs	$2611.00	+ -
19-3-10	3 Ton Cap. Model 19 Fixed Spread Lifting Beam	The Caldwell Group	272 lbs	$2386.00	+ -
19-1/2-2	1/2 Ton Cap. Model 19 Fixed Spread Lifting Beam	The Caldwell Group	20 lbs	$998.00	+ -
19-1/2-3	1/2 Ton Cap. Model 19 Fixed Spread Lifting Beam	The Caldwell Group	26 lbs	$1038.00	+ -
19-1/2-4	1/2 Ton Cap. Model 19 Fixed Spread Lifting Beam	The Caldwell Group	33 lbs	$1083.00	+ -
19-1/2-6	1/2 Ton Cap. Model 19 Fixed Spread Lifting Beam	The Caldwell Group	48 lbs	$1143.00	+ -
19-1/2-8	1/2 Ton Cap. Model 19 Fixed Spread Lifting Beam	The Caldwell Group	75 lbs	$1696.00	+ -
19-1/2-10	1/2 Ton Cap. Model 19 Fixed Spread Lifting Beam	The Caldwell Group	93 lbs	$1897.00	+ -
19-1-2	1 Ton Cap. Model 19 Fixed Spread Lifting Beam	The Caldwell Group	26 lbs	$1038.00	+ -
19-1-3	1 Ton Cap. Model 19 Fixed Spread Lifting Beam	The Caldwell Group	35 lbs	$1083.00	+ -
19-1-4	1 Ton Cap. Model 19 Fixed Spread Lifting Beam	The Caldwell Group	44 lbs	$1180.00	+ -
19-1-6	1 Ton Cap. Model 19 Fixed Spread Lifting Beam	The Caldwell Group	72 lbs	$1345.00	+ -
19-1-8	1 Ton Cap. Model 19 Fixed Spread Lifting Beam	The Caldwell Group	93 lbs	$1775.00	+ -
19-1-10	1 Ton Cap. Model 19 Fixed Spread Lifting Beam	The Caldwell Group	131 lbs	$2021.00	+ -
19-2-3	2 Ton Cap. Model 19 Fixed Spread Lifting Beam	The Caldwell Group	45 lbs	$1177.00	+ -
19-2-4	2 Ton Cap. Model 19 Fixed Spread Lifting Beam	The Caldwell Group	55 lbs	$1506.00	+ -
19-2-6	2 Ton Cap. Model 19 Fixed Spread Lifting Beam	The Caldwell Group	108 lbs	$1710.00	+ -
19-2-8	2 Ton Cap. Model 19 Fixed Spread Lifting Beam	The Caldwell Group	140 lbs	$2178.00	+ -
