Fixed Twin Basket Sling Lifting Beam

PRODUCT FEATURES:

Designed to be used with slings in a basket hitch.
Provides greatest clearance in low headroom applications.
Two sets of bent bar hooks are standard on units with
a spread of 6' and greater.
Spread 2 is 1/2 of spread 1.
Hooks are designed to handle up to a 2” sling eye width.
Complies with ASME standards.

The Model 18 - Fixed Twin Basket Sling Lifting Beam is the ideal solutions as a dedicated lifting beam when handling loads
with lifting slings in a basket hitch. "Bull Horn" style hooks set on top of a lifting beam, helping to reduce the overall
headroom required for this type of lifting beam.

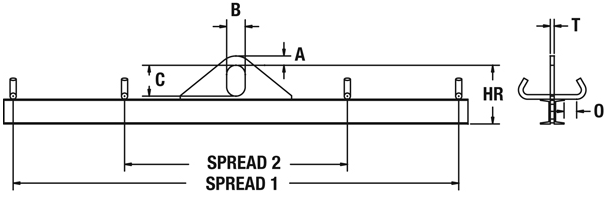

Part Number	Reference Number	Capacity (tons)	Spread (ft.)	HR (in.)	A (in.)	B (in.)	C (in.)	T (in.)	O (in.)	Weight (lbs.)
18-1/2-3	34-1801	1/2	3	8-1/2	7/8	3	5	3/4	2	40
18-1/2-4	34-1802	1/2	4	8-1/2	7/8	3	5	3/4	2	48
18-1/2-6	34-1803	1/2	6	8-1/2	7/8	3	5	3/4	2	78
18-1/2-8	34-1804	1/2	8	8-1/2	7/8	3	5	3/4	2	95
18-1/2-10	34-1805	1/2	10	8-1/2	7/8	3	5	3/4	2	113
18-1/2-12	34-1806	1/2	12	9-1/2	7/8	3	5	3/4	2	171
18-1-3	34-1807	1	3	8-1/2	7/8	3	5	3/4	2	40
18-1-4	34-1808	1	4	8-1/2	7/8	3	5	3/4	2	48
18-1-6	34-1809	1	6	9-1/2	7/8	3	5	3/4	2	93
18-1-8	34-1810	1	8	10-1/2	7/8	3	5	3/4	2	136
18-1-10	34-1811	1	10	10-1/2	7/8	3	5	3/4	2	175
18-1-12	34-1812	1	12	11-1/2	7/8	3	5	3/4	2	239
18-2-3	34-1813	2	3	9-1/2	7/8	3	5	3/4	2	52
18-2-4	34-1814	2	4	10-1/2	7/8	3	5	3/4	2	75
18-2-6	34-1815	2	6	10-1/2	7/8	3	5	3/4	2	139
18-2-8	34-1816	2	8	11-1/2	7/8	3	5	3/4	2	169
18-2-10	34-1817	2	10	12-1/2	7/8	3	5	3/4	2	246
18-2-12	34-1818	2	12	13-1/2	7/8	3	5	3/4	2	326
18-5-3	34-1819	5	3	13-1/2	2	4	7	1-1/4	2	104
18-5-4	34-1820	5	4	14-1/2	2	4	7	1-1/4	2	135
18-5-6	34-1821	5	6	15-1/2	2	4	7	1-1/4	2	211
18-5-8	34-1822	5	8	16-1/2	2	4	7	1-1/4	2	310
18-5-10	34-1823	5	10	17-1/2	2	4	7	1-1/4	2	423
18-5-12	34-1824	5	12	19-1/2	2	4	7	1-1/4	2	618
18-7 1/2-3	34-1825	7 1/2	3	12	2	4	7	1-1/4	2	125
18-7 1/2-4	34-1826	7 1/2	4	14	2	4	7	1-1/4	2	185
18-7 1/2-6	34-1827	7 1/2	6	15	2	4	7	1-1/4	2	315
18-7 1/2-8	34-1828	7 1/2	8	17	2	4	7	1-1/4	2	475
Order below by choosing the model number you would like to order!

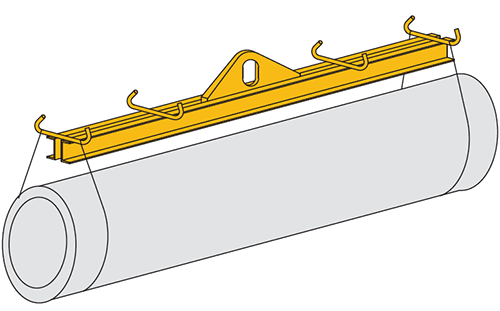

Operation

Caldwell Fixed Twin Lifting Beam

Part Number	Description	Brand	Weight	Price	Quantity
18-5-10	5 Ton Cap. Model 18 Fixed Twin Basket Sling Lifting Beam	The Caldwell Group	423 lbs	$3643.00	+ -
18-5-12	5 Ton Cap. Model 18 Fixed Twin Basket Sling Lifting Beam	The Caldwell Group	618 lbs	$4427.00	+ -
18-7 1/2-3	7-1/2 Ton Cap. Model 18 Fixed Twin Basket Sling Lifting Beam	The Caldwell Group	125 lbs	$2339.00	+ -
18-7 1/2-4	7-1/2 Ton Cap. Model 18 Fixed Twin Basket Sling Lifting Beam	The Caldwell Group	185 lbs	$2447.00	+ -
18-7 1/2-6	7-1/2 Ton Cap. Model 18 Fixed Twin Basket Sling Lifting Beam	The Caldwell Group	315 lbs	$3198.00	+ -
18-7 1/2-8	7-1/2 Ton Cap. Model 18 Fixed Twin Basket Sling Lifting Beam	The Caldwell Group	475 lbs	$3791.00	+ -
18-1/2-3	1/2 Ton Cap. Model 18 Fixed Twin Basket Sling Lifting Beam	The Caldwell Group	40 lbs	$1046.00	+ -
18-1/2-4	1/2 Ton Cap. Model 18 Fixed Twin Basket Sling Lifting Beam	The Caldwell Group	48 lbs	$1136.00	+ -
18-1/2-6	1/2 Ton Cap. Model 18 Fixed Twin Basket Sling Lifting Beam	The Caldwell Group	78 lbs	$1342.00	+ -
18-1/2-8	1/2 Ton Cap. Model 18 Fixed Twin Basket Sling Lifting Beam	The Caldwell Group	95 lbs	$1847.00	+ -
18-1/2-10	1/2 Ton Cap. Model 18 Fixed Twin Basket Sling Lifting Beam	The Caldwell Group	113 lbs	$2070.00	+ -
18-1/2-12	1/2 Ton Cap. Model 18 Fixed Twin Basket Sling Lifting Beam	The Caldwell Group	171 lbs	$2211.00	+ -
18-1-3	1 Ton Cap. Model 18 Fixed Twin Basket Sling Lifting Beam	The Caldwell Group	40 lbs	$1117.00	+ -
18-1-4	1 Ton Cap. Model 18 Fixed Twin Basket Sling Lifting Beam	The Caldwell Group	48 lbs	$1225.00	+ -
18-1-6	1 Ton Cap. Model 18 Fixed Twin Basket Sling Lifting Beam	The Caldwell Group	93 lbs	$1413.00	+ -
18-1-8	1 Ton Cap. Model 18 Fixed Twin Basket Sling Lifting Beam	The Caldwell Group	136 lbs	$1948.00	+ -
18-1-10	1 Ton Cap. Model 18 Fixed Twin Basket Sling Lifting Beam	The Caldwell Group	175 lbs	$2252.00	+ -
18-1-12	1 Ton Cap. Model 18 Fixed Twin Basket Sling Lifting Beam	The Caldwell Group	239 lbs	$2424.00	+ -
18-2-3	2 Ton Cap. Model 18 Fixed Twin Basket Sling Lifting Beam	The Caldwell Group	52 lbs	$1136.00	+ -
18-2-4	2 Ton Cap. Model 18 Fixed Twin Basket Sling Lifting Beam	The Caldwell Group	75 lbs	$1571.00	+ -
18-2-6	2 Ton Cap. Model 18 Fixed Twin Basket Sling Lifting Beam	The Caldwell Group	139 lbs	$1847.00	+ -
18-2-8	2 Ton Cap. Model 18 Fixed Twin Basket Sling Lifting Beam	The Caldwell Group	169 lbs	$2389.00	+ -
18-2-10	2 Ton Cap. Model 18 Fixed Twin Basket Sling Lifting Beam	The Caldwell Group	246 lbs	$2616.00	+ -
18-2-12	2 Ton Cap. Model 18 Fixed Twin Basket Sling Lifting Beam	The Caldwell Group	326 lbs	$3180.00	+ -
18-5-3	5 Ton Cap. Model 18 Fixed Twin Basket Sling Lifting Beam	The Caldwell Group	104 lbs	$1895.00	+ -
18-5-4	5 Ton Cap. Model 18 Fixed Twin Basket Sling Lifting Beam	The Caldwell Group	135 lbs	$1981.00	+ -
18-5-6	5 Ton Cap. Model 18 Fixed Twin Basket Sling Lifting Beam	The Caldwell Group	211 lbs	$2545.00	+ -
18-5-8	5 Ton Cap. Model 18 Fixed Twin Basket Sling Lifting Beam	The Caldwell Group	310 lbs	$3084.00	+ -
