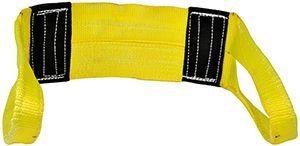

10" Width Wide Body Heavy Duty Cargo Basket Slings

Cargo Integral Eye (CIE)
The Cargo Integral Eye is for applications where a wide sling is needed for load stability or for protection of soft surfaces.
Spreads the load over a greater area.

Tulsa Chain Tag

Identification Tags and Product Warning Information
Tulsa Chain Slings have a heavy duty laser printed and
Vinyl coated tag designed to stay attached for the life of the sling.
In addition, all slings have attached caution labels and printed
warning sheets that include care, inspection and removal criteria.

Red Core Safety Yarns
Tulsa Chain Slings have red core safety yarns that
become visible when outer layers are worn, providing
a signal to remove sling from service. Polyester Round Slings
have red striped white load bearing yarns.

Made in the USA!

Eye Body Wide Body Heavy Duty Cargo Basket

Wide Body Heavy Duty Cargo Basket Slings

All slings shown are manufactured to meet or exceed
current A.N.S.I. and stringent OSHA requirements.

Ply	Part Number	Basket WLL	Eye Width	Eye Length
1	WB1-910	32,000	1.75"	15"
2	WB2-910	60,000	2.5"	18"

To determine Body Length subtract Eye Length x 2 from Overall Length.

EXAMPLE

(IF Eye Length is 24" and Overall Body Length is 10'
24" x 2 = 48" (4 ft.)
10ft - 4ft = 6ft Body Length)

Part Number
WB1-910-10Ft, WB2-910-12Ft, WB2-910-14Ft, WB2-910-16Ft, WB2-910-18Ft, WB2-910-20Ft, WB2-910-22Ft, WB2-910-24Ft, WB2-910-26Ft, WB2-910-28Ft, WB2-910-30Ft, WB2-910-3Ft, WB2-910-4Ft, WB2-910-6Ft, WB2-910-10Ft, WB1-910-8Ft, WB1-910-12Ft, WB1-910-14Ft, WB1-910-16Ft, WB1-910-18Ft, WB1-910-20Ft, WB1-910-22Ft, WB1-910-24Ft, WB1-910-26Ft, WB1-910-28Ft, WB1-910-30Ft, WB1-910-3Ft, WB1-910-4Ft, WB1-910-6Ft, WB2-910-8Ft
Description
10" Wide Body Heavy Duty Cargo Basket Sling x 3 Ft. (1 Ply) Basket: 32,000 lbs, 10" Wide Body Heavy Duty Cargo Basket Sling x 4 Ft. (2 Ply) Basket: 60,000 lbs, 10" Wide Body Heavy Duty Cargo Basket Sling x 6 Ft. (2 Ply) Basket: 60,000 lbs, 10" Wide Body Heavy Duty Cargo Basket Sling x 8 Ft. (2 Ply) Basket: 60,000 lbs, 10" Wide Body Heavy Duty Cargo Basket Sling x 10 Ft. (2 Ply) Basket: 60,000 lbs, 10" Wide Body Heavy Duty Cargo Basket Sling x 12 Ft. (2 Ply) Basket: 60,000 lbs, 10" Wide Body Heavy Duty Cargo Basket Sling x 14 Ft. (2 Ply) Basket: 60,000 lbs, 10" Wide Body Heavy Duty Cargo Basket Sling x 16 Ft. (2 Ply) Basket: 60,000 lbs, 10" Wide Body Heavy Duty Cargo Basket Sling x 18 Ft. (2 Ply) Basket: 60,000 lbs, 10" Wide Body Heavy Duty Cargo Basket Sling x 20 Ft. (2 Ply) Basket: 60,000 lbs, 10" Wide Body Heavy Duty Cargo Basket Sling x 22 Ft. (2 Ply) Basket: 60,000 lbs, 10" Wide Body Heavy Duty Cargo Basket Sling x 24 Ft. (2 Ply) Basket: 60,000 lbs, 10" Wide Body Heavy Duty Cargo Basket Sling x 26 Ft. (2 Ply) Basket: 60,000 lbs, 10" Wide Body Heavy Duty Cargo Basket Sling x 28 Ft. (2 Ply) Basket: 60,000 lbs, 10" Wide Body Heavy Duty Cargo Basket Sling x 3 Ft. (2 Ply) Basket: 60,000 lbs, 10" Wide Body Heavy Duty Cargo Basket Sling x 30 Ft. (1 Ply) Basket: 32,000 lbs, 10" Wide Body Heavy Duty Cargo Basket Sling x 4 Ft. (1 Ply) Basket: 32,000 lbs, 10" Wide Body Heavy Duty Cargo Basket Sling x 6 Ft. (1 Ply) Basket: 32,000 lbs, 10" Wide Body Heavy Duty Cargo Basket Sling x 8 Ft. (1 Ply) Basket: 32,000 lbs, 10" Wide Body Heavy Duty Cargo Basket Sling x 10 Ft. (1 Ply) Basket: 32,000 lbs, 10" Wide Body Heavy Duty Cargo Basket Sling x 12 Ft. (1 Ply) Basket: 32,000 lbs, 10" Wide Body Heavy Duty Cargo Basket Sling x 14 Ft. (1 Ply) Basket: 32,000 lbs, 10" Wide Body Heavy Duty Cargo Basket Sling x 16 Ft. (1 Ply) Basket: 32,000 lbs, 10" Wide Body Heavy Duty Cargo Basket Sling x 18 Ft. (1 Ply) Basket: 32,000 lbs, 10" Wide Body Heavy Duty Cargo Basket Sling x 20 Ft. (1 Ply) Basket: 32,000 lbs, 10" Wide Body Heavy Duty Cargo Basket Sling x 22 Ft. (1 Ply) Basket: 32,000 lbs, 10" Wide Body Heavy Duty Cargo Basket Sling x 24 Ft. (1 Ply) Basket: 32,000 lbs, 10" Wide Body Heavy Duty Cargo Basket Sling x 26 Ft. (1 Ply) Basket: 32,000 lbs, 10" Wide Body Heavy Duty Cargo Basket Sling x 28 Ft. (1 Ply) Basket: 32,000 lbs, 10" Wide Body Heavy Duty Cargo Basket Sling x 30 Ft. (2 Ply) Basket: 60,000 lbs
Brand
Tulsa Chain, Made in the USA
