    • Lifting/Spreader Beams
    • Lifting Beams
    • Adjustable Length with Shackle bottoms
    • Adjustable Length with Shackle bottoms
    Adjustable Length with Shackle bottoms
    • Adjustable Length with Shackle bottoms Adjustable Length with Shackle bottoms
    Adjustable Length with Shackle bottoms

    Adjustable Length with Shackle bottoms

    • $2321.93
    • Manufactured to exceed all ASME B30.20 and OSHA regulations.
    • Painted safety yellow for increased visibility.
    • ALL Lifting Beams proof loaded and shipped with certification paperwork.
    • Durable construction ideally suited to jobsite or warehouse use.
    • Made in U.S.A.
    • Custom lettering available - call for details.
    • Custom designs available - call for engineering.
    • ALL lifting equipment individually proof loaded per OSHA requirements.
    • All dimensions in inches unless otherwise noted.
    • Quick and easy adjustment of unbalanced loads.
    • Ideally suited to low headroom applications.
    • Shackle bottoms standard for rigging connections.
    • Swivel hooks, eye hooks and custom connections available.
    • Weight
      135.0000 lbs
    • SKU
      12453

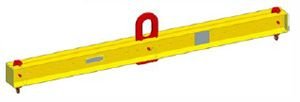

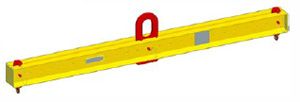

    M & W adjustable lifting beams with shackle bottoms
    American Flag
    Made in the USA!

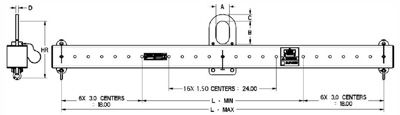

    Part
    Number
    Working Load Limit
    in Pounds*
    L min
    L max
    A
    B
    C
    D
    HR
    Weight
    in Pounds
    15101
    2,000
    36
    72
    3
    5
    0.75
    0.63
    11.8
    85
    14678
    2,000
    72
    144
    3
    5
    0.75
    0.63
    13.8
    285
    12453
    4,000
    36
    72
    3
    5
    1.5
    0.63
    12.6
    135
    12495
    4,000
    72
    144
    3
    5
    1.5
    0.63
    14.6
    331
    14669
    6,000
    36
    72
    3
    5
    1.5
    0.63
    14.8
    170
    14661
    6,000
    72
    144
    3
    5
    1.5
    0.63
    17.8
    535
    12503
    8,000
    36
    72
    4
    7
    2
    0.75
    18.0
    201
    12512
    8,000
    72
    144
    4
    7
    2
    0.75
    20.0
    543
    14651
    10,000
    36
    72
    4
    7
    2
    0.75
    20.0
    310
    15108
    10,000
    72
    144
    4
    7
    2
    0.75
    21.0
    805
    15117
    15,000
    36
    72
    4
    7
    2
    1.00
    20.7
    325
    15128
    15,000
    72
    144
    4
    7
    2
    1.00
    23.7
    830
    * Call for specifications on larger sizes and capacities 866.392.2829
    15128 15117 15108 14651 12512 12503 14661 14669 12495 12453 14678 15101
    15128 15117 15108 14651 12512 12503 14661 14669 12495 12453 14678 15101
    • Part Number
      12453, 15117, 15108, 15101, 14678, 14669, 14661, 14651, 12512, 12503, 12495, 15128
    • Description
      2,000 lb. WLL Adjustable Length with Shackle bottoms, 15,000 lb. WLL 36"-72" Adjustable Length with Shackle bottoms, 10,000 lb. WLL 72"-144" Adjustable Length with Shackle bottoms, 10,000 lb. WLL 36"-72" Adjustable Length with Shackle bottoms, 8,000 lb. WLL 72"-144" Adjustable Length with Shackle bottoms, 8,000 lb. WLL 36"-72" Adjustable Length with Shackle bottoms, 6,000 lb. WLL 72"-144" Adjustable Length with Shackle bottoms, 6,000 lb. WLL 36"-72" Adjustable Length with Shackle bottoms, 4,000 lb. WLL 72"-144" Adjustable Length with Shackle bottoms, 4,000 lb. WLL 36"-72" Adjustable Length with Shackle bottoms, 2,000 lb. WLL 72"-144" Adjustable Length with Shackle bottoms, 2,000 lb. WLL 36"-72" Adjustable Length with Shackle bottoms, 15,000 lb. WLL Adjustable Length with Shackle bottoms, 10,000 lb. WLL Adjustable Length with Shackle bottoms, 8,000 lb. WLL Adjustable Length with Shackle bottoms, 6,000 lb. WLL Adjustable Length with Shackle bottoms, 4,000 lb. WLL Adjustable Length with Shackle bottoms, 15,000 lb. WLL 72"-144" Adjustable Length with Shackle bottoms
    • Brand
      M&W, Made in the USA
    Part Number Description Brand Weight Price Quantity
    12453 4,000 lb. WLL 36"-72" Adjustable Length with Shackle bottoms M&W 135 lbs $2321.93 + -
    12495 4,000 lb. WLL 72"-144" Adjustable Length with Shackle bottoms M&W 331 lbs $3269.93 + -
    12503 8,000 lb. WLL 36"-72" Adjustable Length with Shackle bottoms M&W 201 lbs $3269.93 + -
    12512 8,000 lb. WLL 72"-144" Adjustable Length with Shackle bottoms M&W 543 lbs $4053.07 + -
    14651 10,000 lb. WLL 36"-72" Adjustable Length with Shackle bottoms M&W 310 lbs $3792.02 + -
    14661 6,000 lb. WLL 72"-144" Adjustable Length with Shackle bottoms M&W 535 lbs $3792.02 + -
    14669 6,000 lb. WLL 36"-72" Adjustable Length with Shackle bottoms M&W 170 lbs $2418.10 + -
    14678 2,000 lb. WLL 72"-144" Adjustable Length with Shackle bottoms M&W 285 lbs $2679.15 + -
    15101 2,000 lb. WLL 36"-72" Adjustable Length with Shackle bottoms M&W 85 lbs $2143.32 + -
    15108 10,000 lb. WLL 72"-144" Adjustable Length with Shackle bottoms M&W 805 lbs $4918.64 + -
    15117 15,000 lb. WLL 36"-72" Adjustable Length with Shackle bottoms M&W 325 lbs $4011.85 + -
    15128 15,000 lb. WLL 72"-144" Adjustable Length with Shackle bottoms M&W 830 lbs $5536.91 + -
    • $2321.93
