    • Lifting/Spreader Beams
    • Lifting Beams
    • Adjustable Length with Swivel Hook bottoms
    • Adjustable Length with Swivel Hook bottoms

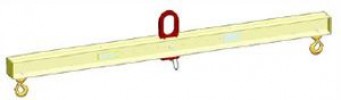

    Adjustable Length with Swivel Hook bottoms
    • Adjustable Length with Swivel Hook bottoms Adjustable Length with Swivel Hook bottoms
    Adjustable Length with Swivel Hook bottoms

    Adjustable Length with Swivel Hook bottoms

    • $2143.32
    • Manufactured to exceed all ASME B30.20 and OSHA regulations.
    • Painted safety yellow for increased visibility.
    • ALL Lifting Beams proof loaded and shipped with certification paperwork.
    • Durable construction ideally suited to jobsite or warehouse use.
    • Made in U.S.A.
    • Custom lettering available - call for details.
    • Custom designs available - call for engineering.
    • ALL lifting equipment individually proof loaded per OSHA requirements.
    • All dimensions in inches unless otherwise noted.
    • Quick and easy adjustment of unbalanced loads.
    • Ideally suited to low headroom applications.
    • Pictured with standard alloy swivel latch hooks.
    • Eye hooks and custom connections available - call for ordering assistance
    • Weight
      85.0000 lbs
    • SKU
      16410
    adjustable length lifting beams with swivel bottoms M&W
    American Flag
    Made in the USA!

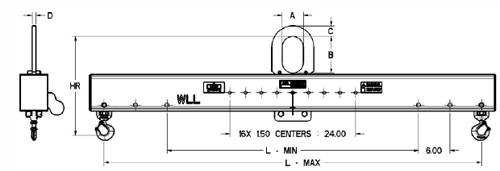

    Part
    Number
    Working Load Limit
    in Pounds*
    L min
    L max
    A
    B
    C
    D
    HR
    Weight
    in Pounds
    16410
    2,000
    48
    72
    3
    5
    0.75
    0.63
    13.8
    85
    16411
    2,000
    120
    144
    3
    5
    0.75
    0.63
    15.7
    285
    16412
    4,000
    48
    72
    3
    5
    1.5
    0.63
    14.6
    135
    16413
    4,000
    120
    144
    3
    5
    1.5
    0.63
    16.6
    330
    16414
    6,000
    48
    72
    3
    5
    1.5
    0.63
    16.2
    160
    16415
    6,000
    120
    144
    3
    5
    1.5
    0.63
    19.1
    530
    16416
    8,000
    48
    72
    4
    7
    2
    0.75
    18.9
    200
    16417
    8,000
    120
    144
    4
    7
    2
    0.75
    20.9
    540
    16418
    10,000
    48
    72
    4
    7
    2
    0.75
    21.2
    300
    16419
    10,000
    120
    144
    4
    7
    2
    0.75
    22.2
    795
    16420
    15,000
    48
    72
    4
    7
    2
    1.00
    22.1
    315
    16421
    15,000
    120
    144
    4
    7
    2
    1.00
    25.1
    815
    * Call for specifications on larger sizes and capacities 866.392.2829
    16421 16420 16419 16418 16417 16416 16415 16414 16413 16412 16411 16410
    16421 16420 16419 16418 16417 16416 16415 16414 16413 16412 16411 16410
    • Part Number
      16410, 16420, 16419, 16418, 16417, 16416, 16415, 16414, 16413, 16412, 16411, 16421
    • Description
      2,000 lb. WLL Adjustable Length with Swivel Hook bottoms, 15,000 lb. WLL 48"-72" Adjustable Length with Swivel Hook bottoms, 10,000 lb. WLL 120"-144" Adjustable Length with Swivel Hook bottoms, 10,000 lb. WLL 48"-72" Adjustable Length with Swivel Hook bottoms, 8,000 lb. WLL 120"-144" Adjustable Length with Swivel Hook bottoms, 8,000 lb. WLL 48"-72" Adjustable Length with Swivel Hook bottoms, 6,000 lb. WLL 120"-144" Adjustable Length with Swivel Hook bottoms, 6,000 lb. WLL 48"-72" Adjustable Length with Swivel Hook bottoms, 4,000 lb. WLL 120"-144" Adjustable Length with Swivel Hook bottoms, 4,000 lb. WLL 48"-72" Adjustable Length with Swivel Hook bottoms, 2,000 lb. 120"-144" WLL Adjustable Length with Swivel Hook bottoms, 2,000 lb. 48"-72" WLL Adjustable Length with Swivel Hook bottoms, 15,000 lb. WLL Adjustable Length with Swivel Hook bottoms, 10,000 lb. WLL Adjustable Length with Swivel Hook bottoms, 8,000 lb. WLL Adjustable Length with Swivel Hook bottoms, 6,000 lb. WLL Adjustable Length with Swivel Hook bottoms, 4,000 lb. WLL Adjustable Length with Swivel Hook bottoms, 15,000 lb. WLL 120"-144" Adjustable Length with Swivel Hook bottoms
    • Brand
      M&W, Made in the USA
    Part Number Description Brand Weight Price Quantity
    16410 2,000 lb. 48"-72" WLL Adjustable Length with Swivel Hook bottoms M&W 85 lbs $2143.32 + -
    16411 2,000 lb. 120"-144" WLL Adjustable Length with Swivel Hook bottoms M&W 285 lbs $2679.15 + -
    16412 4,000 lb. WLL 48"-72" Adjustable Length with Swivel Hook bottoms M&W 135 lbs $2321.93 + -
    16413 4,000 lb. WLL 120"-144" Adjustable Length with Swivel Hook bottoms M&W 330 lbs $3269.93 + -
    16414 6,000 lb. WLL 48"-72" Adjustable Length with Swivel Hook bottoms M&W 160 lbs $2418.10 + -
    16415 6,000 lb. WLL 120"-144" Adjustable Length with Swivel Hook bottoms M&W 530 lbs $3792.02 + -
    16416 8,000 lb. WLL 48"-72" Adjustable Length with Swivel Hook bottoms M&W 200 lbs $3269.93 + -
    16417 8,000 lb. WLL 120"-144" Adjustable Length with Swivel Hook bottoms M&W 540 lbs $4053.07 + -
    16418 10,000 lb. WLL 48"-72" Adjustable Length with Swivel Hook bottoms M&W 300 lbs $3792.02 + -
    16419 10,000 lb. WLL 120"-144" Adjustable Length with Swivel Hook bottoms M&W 795 lbs $4918.64 + -
    16420 15,000 lb. WLL 48"-72" Adjustable Length with Swivel Hook bottoms M&W 315 lbs $4011.85 + -
    16421 15,000 lb. WLL 120"-144" Adjustable Length with Swivel Hook bottoms M&W 815 lbs $5536.91 + -
