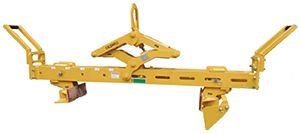

Adjustable Lifting Grab

The new Caldwell Model ALG - Adjustable Lifting Grab is the variable
solution you need on your worksite to handle a wide range of loads.
Ideal for blocks of concrete, stone, rough marble, granite, or any
other solid material. The Adjustable Lifting Grab can handle loads
as narrow as 3", as wide as 60" and any size in between.
Custom configurations are also available.

Designed and manufactured to ASME B30.20 and BTH-1,
design category B, service class 3 standards.

PRODUCT FEATURES:

Heavy-duty design to withstand rugged, high-cycle environments.
Infinitely adjustable within range.
Fully adjustable stainless steel Auto-Latch.
Locating assembly orientates grab on load without operator intervention.
Replaceable polyurethane pads protect load from lifter damage.
Color-coded decal indicates the amount of travel remaining for each adjustment
Position indicating decals for easy adjustment
Extended handles keep operator away from load and can be adjusted as needed.
Optional hardened alloy steel dog points available.
Lifting eye allows for easy hook attachment, self-centers rigging, and will accommodate a fork.
Designed and manufactured to ASME B30.20, BTH-1, service class 3.

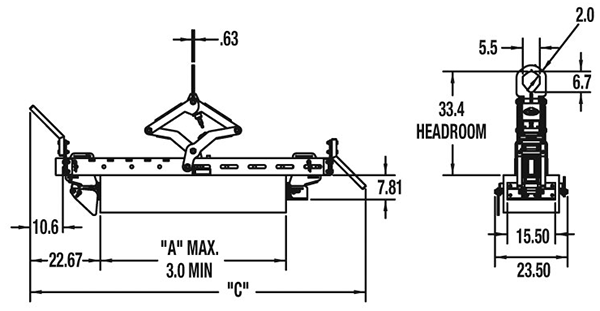

Caldwell Group Adjustable Lifting Grab Specifications

Part Number	Reference Number	Rated Capacity (lbs.)	A (in.)	C (in.)	Weight (lbs.)
ALG-3-3/24	67-1501	6000	24	72.5	600
ALG-3-3/42	67-1502	6000	42	90.5	650
ALG-3-3/60	67-1503	6000	60	108.5	700

Part Number	Description	Brand	Weight	Price	Quantity
ALG-3-3/24	67-1501 Adjustable Lifting Grab (Rated Cap. 6000 lbs.)	The Caldwell Group	600 lbs	$5918.00	+ -
ALG-3-3/42	67-1502 Adjustable Lifting Grab (Rated Cap. 6000 lbs.)	The Caldwell Group	650 lbs	$7172.00	+ -
ALG-3-3/60	67-1503 Adjustable Lifting Grab (Rated Cap. 6000 lbs.)	The Caldwell Group	700 lbs	$8738.00	+ -

Adjustable Lifting Grab
