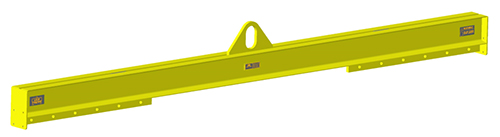

Adjustable Low Headroom

Manufactured to exceed all ASME B30.20 and OSHA regulations.
Painted safety yellow for increased visibility.
ALL Lifting Beams proof loaded and shipped with certification paperwork.
Durable construction ideally suited to jobsite or warehouse use.
Made in U.S.A.
Custom lettering available - call for details.
Custom designs available - call for engineering.
ALL lifting equipment individually proof loaded per OSHA requirements.
Beams supplied standard with shackle connections. "Shackles NOT Included"
Quick and easy adjustment of unbalanced loads.
Ideally suited to low headroom applications.
Swivel hooks, eye hooks and custom connections available.
Call for ordering assistance.

ORDER BELOW

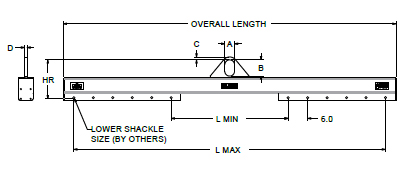

Part Number	L Min / L Max (1’ Spread ADJ)	Overall Length	Working Load Limit in Pounds*	A	B	C	D	HR	Lower Shackle Size	Weight
22148	3’ - 5’	66.5	2,000	3	5	0.88	0.75	12	1/2”	140
22149	5’ - 10’	126.5	2,000	3	5	0.88	0.75	12	1/2”	255
22150	10’ - 15’	186.5	2,000	3	5	0.88	0.75	14	1/2”	578
22151	15’ - 20’	246.5	2,000	3	5	0.88	0.75	14	1/2”	575
24506	20' - 25'	306.5	2,000	3	5	0.88	0.75	17	1/2"	1365
24507	25' - 30'	366.5	2,000	3	5	0.88	0.75	17	1/2"	1610
22152	3’ - 5’	66.5	4,000	3	5	0.88	0.75	12	1/2”	145
22153	5’ - 10’	126.5	4,000	3	5	0.88	0.75	13	1/2”	346
22154	10’ - 15’	186.5	4,000	3	5	0.88	0.75	17	1/2”	864
22155	15’ - 20’	246.5	4,000	3	5	0.88	0.75	17	1/2”	1,115
24508	20' - 25'	306.5	4,000	3	5	0.88	0.75	17	1/2"	1365
24509	25' - 30'	366.5	4,000	3	5	0.88	0.75	17	1/2"	1925
22156	3’ - 5’	66.5	6,000	3	5	1.25	1	13.75	5/8”	217
22157	5’ - 10’	126.5	6,000	3	5	1.25	1	15.75	5/8”	385
22158	10’ - 15’	186.5	6,000	3	5	1.25	1	17.75	5/8”	1,062
22159	15’ - 20’	246.5	6,000	3	5	1.25	1	17.75	5/8”	1,365
24510	20' - 25'	306.5	6,000	3	5	1.25	1	19.75	5/8"	1925
24511	25' - 30'	366.5	6,000	3	5	1.25	1	19.75	5/8"	1985
22160	3’ - 5’	66.5	10,000	4	7	2	1.25	19.62	7/8”	348
22161	5’ - 10’	126.5	10,000	4	7	2	1.25	19.62	7/8”	608
22162	10’ - 15’	186.5	10,000	4	7	2	1.25	21.62	7/8”	1,123
22163	15’ - 20’	246.5	10,000	4	7	2	1.25	21.62	7/8”	1,426
24152	20' - 25'	306.5	10,000	4	7	2	1.25	24.62	7/8"	1,928
24153	25' - 30'	366.5	10,000	4	7	2	1.25	24.62	7/8"	2270
22164	3’ - 5’	66.5	15,000	4	7	2	1.25	19.62	7/8”	348
22165	5’ - 10’	126.5	15,000	4	7	2	1.25	19.62	7/8”	810
22166	10’ - 15’	186.5	15,000	4	7	2	1.25	24.62	7/8”	1,237
22167	15’ - 20’	246.5	15,000	4	7	2	1.25	24.62	7/8"	1,577
24514	20' - 25'	307	15,000	4	7	2	1.25	23.2	7/8"	2,489
24515	25' - 30'	367	15,000	4	7	2	1.25	23.2	7/8"	2,925
22168	3’ - 5’	66.5	20,000	4	7	2	1.25	19.62	7/8”	348
22169	5’ - 10’	126.5	20,000	4	7	2	1.25	21.62	7/8”	815
22170	10’ - 15’	186.5	20,000	4	7	2	1.25	24.62	7/8”	1,248
22171	15’ - 20’	247	20,000	4	7	2	1.25	23.2	7/8”	2,055
24516	20' - 25'	307	20,000	4	7	2	1.25	23.2	7/8"	2489
24517	25' - 30'	367	20,000	4	7	2	1.25	24.9	7/8"	3,645
22172	3’ - 5’	67	40,000	5	9	2.5	1.5	26.2	1 1/8"	706
22173	5’ - 10’	127	40,000	5	9	2.5	1.5	26.2	1 1/8"	1,574
22174	10’ - 15’	187	40,000	5	9	2.5	1.5	27.9	1 1/8"	2,098
22175	15’ - 20’	247	40,000	5	9	2.5	1.5	27.9	1 1/8"	2,643
24518	20' - 25'	307	40,000	5	9	2.5	1.5	35.1	1 1/8"	3,325
24519	25' - 30'	367	40,000	5	9	2.5	1.5	35.1	1 1/8"	3,880
22176	3’ - 5’	67	60,000	7	16	3.5	2	36	1 1/2”	1,023
22177	5’ - 10’	127	60,000	7	16	3.5	2	36	1 1/2”	1,574
22178	10’ - 15’	187	60,000	7	16	3.5	2	37.8	1 1/2”	2,389
22179	15’ - 20’	247	60,000	7	16	3.5	2	45	1 1/2”	3,058
24520	20' - 25'	307	60,000	7	16	3.5	2	48.2	1 1/2"	4,535
24521	25' - 30'	367	60,000	7	16	3.5	2	51.1	1 1/2"	5,783
22180	3’ - 5’	67	80,000	7	16	3.5	2.5	39.5	1 3/4”	1,443
22181	5’ - 10’	127	80,000	7	16	3.5	2.5	39.5	1 3/4”	2,248
22182	10’ - 15’	187	80,000	7	16	3.5	2.5	46.5	1 3/4”	2,763
22183	15’ - 20’	247	80,000	7	16	3.5	2.5	49.5	1 3/4”	3,761
24522	20' - 14'	307	80,000	7	16	3.5	2	48.2	1 1/2"	4,535
24523	25' - 30'	367	80,000	7	16	3.5	2.5	52.8	1 3/4"	6,570

Part Number
22148, 22149, 22150, 22151, 22152, 22153, 22154, 22155, 22156, 22157, 22158, 22159, 22160, 22161, 22162, 22163, 22164, 22165, 22166, 22167, 22168, 22169, 22170, 22171, 22172, 22173, 22174, 22175, 22176, 22177, 22178, 22179, 22180, 22181, 22182, 22183, 24506, 24507, 24508, 24510, 24511, 24512, 24513, 24514, 24515, 24516, 24517, 24518, 24519, 24520, 24521, 24522, 24523, 24509
Description
2,000 lb. WLL 3'-5' Adjustable Low Headroom, 2,000 lb. WLL 5'-10' Adjustable Low Headroom, 2,000 lb. WLL 10'-15' Adjustable Low Headroom, 2,000 lb. WLL 15'-20' Adjustable Low Headroom, 4,000 lb. WLL 3'-5' Adjustable Low Headroom, 4,000 lb. WLL 5'-10' Adjustable Low Headroom, 4,000 lb. WLL 10'-15' Adjustable Low Headroom, 4,000 lb. WLL 15'-20' Adjustable Low Headroom, 6,000 lb. WLL 3'-5' Adjustable Low Headroom, 6,000 lb. WLL 5'-10' Adjustable Low Headroom, 6,000 lb. WLL 10'-15' Adjustable Low Headroom, 6,000 lb. WLL 15'-20' Adjustable Low Headroom, 10,000 lb. WLL 3'-5' Adjustable Low Headroom, 10,000 lb. WLL 5'-10' Adjustable Low Headroom, 10,000 lb. WLL 10'-15' Adjustable Low Headroom, 10,000 lb. WLL 15'-20' Adjustable Low Headroom, 15,000 lb. WLL 3'-5' Adjustable Low Headroom, 15,000 lb. WLL 5'-10' Adjustable Low Headroom, 15,000 lb. WLL 10'-15' Adjustable Low Headroom, 15,000 lb. WLL 15'-20' Adjustable Low Headroom, 20,000 lb. WLL 3'-5' Adjustable Low Headroom, 20,000 lb. WLL 5'-10' Adjustable Low Headroom, 20,000 lb. WLL 10'-15' Adjustable Low Headroom, 20,000 lb. WLL 15'-20' Adjustable Low Headroom, 40,000 lb. WLL 3'-5' Adjustable Low Headroom, 40,000 lb. WLL 5'-10' Adjustable Low Headroom, 40,000 lb. WLL 10'-15' Adjustable Low Headroom, 40,000 lb. WLL 15'-20' Adjustable Low Headroom, 60,000 lb. WLL 3'-5' Adjustable Low Headroom, 60,000 lb. WLL 5'-10' Adjustable Low Headroom, 60,000 lb. WLL 10'-15' Adjustable Low Headroom, 60,000 lb. WLL 15'-20' Adjustable Low Headroom, 80,000 lb. WLL 3'-5' Adjustable Low Headroom, 80,000 lb. WLL 5'-10' Adjustable Low Headroom, 80,000 lb. WLL 10'-15' Adjustable Low Headroom, 80,000 lb. WLL 15'-20' Adjustable Low Headroom, 2,000 lb. WLL 20'-25' Adjustable Low Headroom, 2,000 lb. WLL 25'-30' Adjustable Low Headroom, 4,000 lb. WLL 20'-25' Adjustable Low Headroom, 4,000 lb. WLL 25'-30' Adjustable Low Headroom, 6,000 lb. WLL 20'-25' Adjustable Low Headroom, 6,000 lb. WLL 25'-30' Adjustable Low Headroom, 10,000 lb. WLL 20'-25' Adjustable Low Headroom, 10,000 lb. WLL 25'-30' Adjustable Low Headroom, 15,000 lb. WLL 20'-25' Adjustable Low Headroom, 15,000 lb. WLL 25'-30' Adjustable Low Headroom, 20,000 lb. WLL 20'-25' Adjustable Low Headroom, 20,000 lb. WLL 25'-30' Adjustable Low Headroom, 40,000 lb. WLL 20'-25' Adjustable Low Headroom, 40,000 lb. WLL 25'-30' Adjustable Low Headroom, 60,000 lb. WLL 20'-25' Adjustable Low Headroom, 60,000 lb. WLL 25'-30' Adjustable Low Headroom, 80,000 lb. WLL 20'-25' Adjustable Low Headroom, 80,000 lb. WLL 25'-30' Adjustable Low Headroom
Brand
M&W, Tulsa Chain

Part Number	Description	Brand	Weight	Price	Quantity
22148	2,000 lb. WLL 3'-5' Adjustable Low Headroom	M&W	140 lbs	$1511.31	+ -
22149	2,000 lb. WLL 5'-10' Adjustable Low Headroom	M&W	255 lbs	$1868.53	+ -
22150	2,000 lb. WLL 10'-15' Adjustable Low Headroom	M&W	578 lbs	$2376.88	+ -
22151	2,000 lb. WLL 15'-20' Adjustable Low Headroom	M&W	575 lbs	$2871.50	+ -
22152	4,000 lb. WLL 3'-5' Adjustable Low Headroom	M&W	145 lbs	$1662.45	+ -
22153	4,000 lb. WLL 5'-10' Adjustable Low Headroom	M&W	346 lbs	$2143.32	+ -
22154	4,000 lb. WLL 10'-15' Adjustable Low Headroom	M&W	864 lbs	$2898.98	+ -
22155	4,000 lb. WLL 15'-20' Adjustable Low Headroom	M&W	1115 lbs	$4877.42	+ -
22156	6,000 lb. WLL 3'-5' Adjustable Low Headroom	M&W	217 lbs	$1909.75	+ -
22157	6,000 lb. WLL 5'-10' Adjustable Low Headroom	M&W	385 lbs	$2637.93	+ -
22158	6,000 lb. WLL 10'-15' Adjustable Low Headroom	M&W	1062 lbs	$4492.72	+ -
22159	6,000 lb. WLL 15'-20' Adjustable Low Headroom	M&W	1365 lbs	$5646.82	+ -
22160	10,000 lb. WLL 3'-5' Adjustable Low Headroom	M&W	348 lbs	$2775.32	+ -
22161	10,000 lb. WLL 5'-10' Adjustable Low Headroom	M&W	608 lbs	$3682.11	+ -
22162	10,000 lb. WLL 10'-15' Adjustable Low Headroom	M&W	1123 lbs	$5275.86	+ -
22163	10,000 lb. WLL 15'-20' Adjustable Low Headroom	M&W	1426 lbs	$6223.87	+ -
22164	15,000 lb. WLL 3'-5' Adjustable Low Headroom	M&W	348 lbs	$3105.06	+ -
22165	15,000 lb. WLL 5'-10' Adjustable Low Headroom	M&W	810 lbs	$4108.03	+ -
22166	15,000 lb. WLL 10'-15' Adjustable Low Headroom	M&W	1237 lbs	$6127.69	+ -
22167	15,000 lb. WLL 15'-20' Adjustable Low Headroom	M&W	1577 lbs	$7584.05	+ -
22168	20,000 lb. WLL 3'-5' Adjustable Low Headroom	M&W	348 lbs	$3407.33	+ -
22169	20,000 lb. WLL 5'-10' Adjustable Low Headroom	M&W	815 lbs	$5220.90	+ -
22170	20,000 lb. WLL 10'-15' Adjustable Low Headroom	M&W	1248 lbs	$5797.95	+ -
22171	20,000 lb. WLL 15'-20' Adjustable Low Headroom	M&W	2055 lbs	$10551.72	+ -
22172	40,000 lb. WLL 3'-5' Adjustable Low Headroom	M&W	706 lbs	$5426.99	+ -
22173	40,000 lb. WLL 5'-10' Adjustable Low Headroom	M&W	1574 lbs	$10015.89	+ -
22174	40,000 lb. WLL 10'-15' Adjustable Low Headroom	M&W	2098 lbs	$13491.91	+ -
22175	40,000 lb. WLL 15'-20' Adjustable Low Headroom	M&W	2643 lbs	$15511.58	+ -
22176	60,000 lb. WLL 3'-5' Adjustable Low Headroom	M&W	1023 lbs	$10950.16	+ -
22177	60,000 lb. WLL 5'-10' Adjustable Low Headroom	M&W	1574 lbs	$15442.88	+ -
22178	60,000 lb. WLL 10'-15' Adjustable Low Headroom	M&W	2389 lbs	$17393.85	+ -
22179	60,000 lb. WLL 15'-20' Adjustable Low Headroom	M&W	3058 lbs	$21570.57	+ -
22180	80,000 lb. WLL 3'-5' Adjustable Low Headroom	M&W	1443 lbs	$15827.58	+ -
22181	80,000 lb. WLL 5'-10' Adjustable Low Headroom	M&W	2248 lbs	$20993.53	+ -
22182	80,000 lb. WLL 10'-15' Adjustable Low Headroom	M&W	2763 lbs	$22683.45	+ -
22183	80,000 lb. WLL 15'-20' Adjustable Low Headroom	M&W	3761 lbs	$26296.87	+ -
24506	2,000 lb. WLL 20'-25' Adjustable Low Headroom	M&W	1365 lbs	$5534.16	+ -
24507	2,000 lb. WLL 25'-30' Adjustable Low Headroom	M&W	1610 lbs	$6056.25	+ -
24508	4,000 lb. WLL 20'-25' Adjustable Low Headroom	M&W	1365 lbs	$6031.39	+ -
24509	4,000 lb. WLL 25'-30' Adjustable Low Headroom	M&W	1925 lbs	$8112.29	+ -
24510	6,000 lb. WLL 20'-25' Adjustable Low Headroom	M&W	1925 lbs	$6516.18	+ -
24511	6,000 lb. WLL 25'-30' Adjustable Low Headroom	M&W	1985 lbs	$8298.75	+ -
24512	10,000 lb. WLL 20'-25' Adjustable Low Headroom	M&W	1928 lbs	$10556.17	+ -
24513	10,000 lb. WLL 25'-30' Adjustable Low Headroom	M&W	2270 lbs	$11587.92	+ -
24514	15,000 lb. WLL 20'-25' Adjustable Low Headroom	M&W	2489 lbs	$17124.56	+ -
24515	15,000 lb. WLL 25'-30' Adjustable Low Headroom	M&W	2925 lbs	$19014.03	+ -
24516	20,000 lb. WLL 20'-25' Adjustable Low Headroom	M&W	2489 lbs	$17621.79	+ -
24517	20,000 lb. WLL 25'-30' Adjustable Low Headroom	M&W	3645 lbs	$19603.25	+ -
24518	40,000 lb. WLL 20'-25' Adjustable Low Headroom	M&W	3325 lbs	$21656.80	+ -
24519	40,000 lb. WLL 25'-30' Adjustable Low Headroom	M&W	3880 lbs	$24041.02	+ -
24520	60,000 lb. WLL 20'-25' Adjustable Low Headroom	M&W	4535 lbs	$23705.39	+ -
24521	60,000 lb. WLL 25'-30' Adjustable Low Headroom	M&W	5783 lbs	$31489.50	+ -
24522	80,000 lb. WLL 20'-25' Adjustable Low Headroom	M&W	5255 lbs	$29803.90	+ -
24523	80,000 lb. WLL 25'-30' Adjustable Low Headroom	M&W	6570 lbs	$44994.24	+ -
