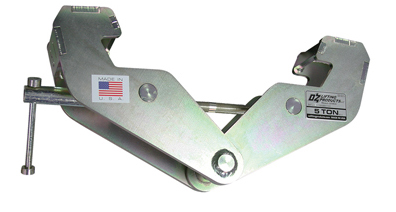

OZ Beam Clamp (USA)

Name: OZ Beam Clamp (USA)
Price: 548.53 USD
Availability: InStock

OZ Lifting Products

Download Operators Manual
A .pdf reader is required.
adobe

FEATURES:

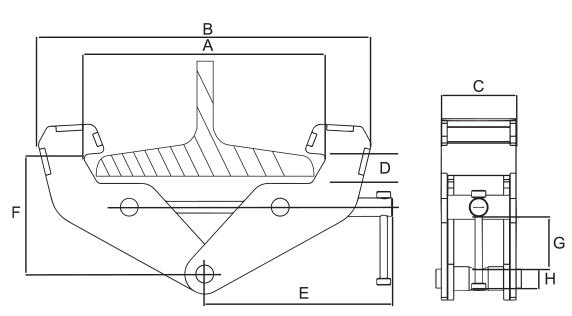

DIMENSIONS

Beam Clamp USA

SPECIFICATIONS (1, 2, 3, 5 and 10 tons)

American Flag
Made in the USA!

Watch OZ Beam Clamp Features:

Part Number	Working Load Limit	Flange Width (A) Inches	Dim B Inches	Dim C Inches	Dim D Inches	Dim E Inches	Dim F Inches	Dim G Inches	Dim H Inches	Ship Weight
OZ1BCA	2,000 LBS	3-9	14.75	2.51	.90	9.5	4.75-5.75	1.75	.75	9
OZ2BCA	4,000 LBS	3-9	14.75	2.91	.90	9.5	4.75-5.75	1.75	0.875	11
OZ3BCA	6,000 LBS	3.5-13	20.5	3.94	1.50	11	7.5-9	2.5	0.975	22
OZ5BCA	10,000 LBS	3.5-13	19.5	4.41	1.50	11	7.5-9	2.5	1.125	26
OZ10BCA	20,000 LBS	3.5-13	22	4.72	1.50	11.50	5.5-9.375	4	1.625	39

Part Number	Description	Brand	Weight	Price	Quantity
OZ1BCA	WLL 2000 Lbs. OZ Beam Clamp (USA)	OZ Lifting Products	9 lbs	$228.40	+ -
OZ2BCA	WLL 4000 Lbs. OZ Beam Clamp (USA)	OZ Lifting Products	11 lbs	$248.57	+ -
OZ3BCA	WLL 6000 Lbs. OZ Beam Clamp (USA)	OZ Lifting Products	22 lbs	$310.57	+ -
OZ5BCA	WLL 10,000 Lbs. OZ Beam Clamp (USA)	OZ Lifting Products	26 lbs	$330.73	+ -
OZ10BCA	WLL 20,000 Lbs. OZ Beam Clamp (USA)	OZ Lifting Products	39 lbs	$548.53	+ -
