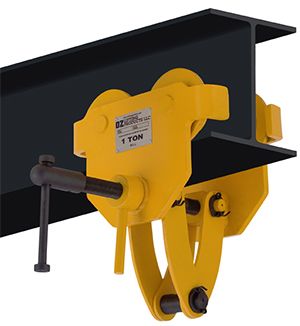

OZ Quick Adjust Trolley

Name: OZ Quick Adjust Trolley
Price: 192.94 USD
Availability: InStock

OZ Lifting Products

Download Operators Manual
A .pdf reader is required.
adobe

FEATURES:

Lightweight robust construction
Super-quick adjustment to most I, S, and W-Beams (see measurements below)
Safety handle lock
Durable baked-enamel paint protection
Precision ball bearing trolley wheels
Anti-drop plate
Stainless steel ID tag
Individual test certificate and serial number
Meet or exceed the following standards - CE, AS1418.2, ANSI B30.10
"for use with manual or powered hoists"

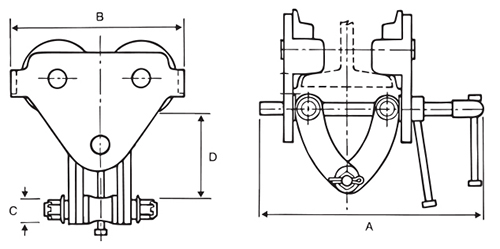

DIMENSIONS:

Quick Adjust Trolley

SPECIFICATIONS (1, 2, 3 and 5 tons)

Part Number	Working Load Limit	Flange Width Inches	Dim A Inches	Dim B Inches	Dim C Inches	Dim D Inches	Minimum Radius Curve	Ship Weight
OZ05QAT	1,000 Lbs	3.63-7.12	11.75	8.00	0.75	5.87-7.12	3.28 Ft.	13 Lbs
OZ1QAT	2,000 LBS	2.48-8.27	13.98	9.53	0.88	5.72-7.22	3.28 Ft.	25 Lbs
OZ2QAT	4,000 LBS	2.99-8.27	14.71	11.06	0.88	6.06-7.22	3.61 Ft.	38 Lbs
OZ3QAT	6,000 LBS	2.99-8.27	14.17	12.91	0.97	6.35-7.97	4.26 Ft.	57 Lbs
OZ5QAT	10,000 LBS	3.94-12.01	18.50	14.84	1.11	8.81-10.61	4.60 Ft.	102 Lbs
OZ10QAT	20,000 LBS	6.89-12.01	18.90	17.91	1.65	9.00-10.51	5.57 Ft.	205 Lbs

Part Number	Description	Brand	Weight	Price	Quantity
OZ05QAT	WLL 1,000 Lbs. OZ Quick Adjust Trolley	OZ Lifting Products	13 lbs	$192.94	+ -
OZ10QAT	WLL 20,000 Lbs. OZ Quick Adjust Trolley	OZ Lifting Products	205 lbs	$1280.00	+ -
OZ1QAT	WLL 2,000 Lbs. OZ Quick Adjust Trolley	OZ Lifting Products	25 lbs	$210.48	+ -
OZ2QAT	WLL 4,000 Lbs. OZ Quick Adjust Trolley	OZ Lifting Products	38 lbs	$316.84	+ -
OZ3QAT	WLL 6,000 Lbs. OZ Quick Adjust Trolley	OZ Lifting Products	57 lbs	$552.83	+ -
OZ5QAT	WLL 10,000 Lbs. OZ Quick Adjust Trolley	OZ Lifting Products	102 lbs	$693.38	+ -
