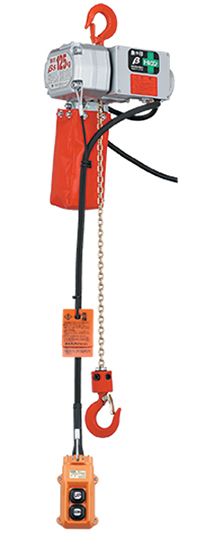

BETA Series Electric Chain Hoist (Single Speed) Hook to Hook

Single Phase, 115V/60Hz, Galvanized Load Chain, Double Brake, Overload & Overwind Safety Device, Chain Container. MADE IN JAPAN

Part Number	WLL (lbs)	Motor Output (H.P.)	Short Time Rating (Min.)	%ED	Maximum Starting Frequency (times/h)	Voltage	Ampare (A)	Lifting Speed (ft./min.)	Headroom (in)	Load Chain (Dia. X Pitch)	Weight (lbs)
BS-012	275	0.25	25	30%	180	Single Phase 115V	4	21	11	3mm x 9mm	17
BS-020	440	0.25	25	30%	180	Single Phase 115V	4	12.5	11	3mm x 9mm	17

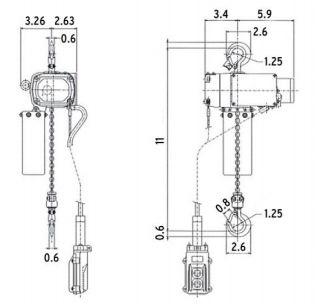

Beta Spec

* Standard pendant hangs approximately 1' less than the lift
* For lifts or PB control lengths other than standard lift, use the base adder prices above -start at standard lift
* Contact customer service for lift and pendant length limitations
* Standard power supply cord is 9'8"
* Hoist comes standard with chain container suitable for lifting length

Part Number	Description	Brand	Weight	Price	Quantity
BS-012	10' Beta Series Electric Chain	Elephant Lifting Products	17 lbs	$2324.46	+ -
BS-020	10' Beta Series Electric Chain	Elephant Lifting Products	17 lbs	$2538.78	+ -

BETA Series Electric Chain Hoist (Single Speed) Hook to Hook

Tulsa Chain.com, LLC
