Grade 100 Clevis Foundry Hook Pewag

Pewag Chain Logo

Pewag Winner Pro Grade 100

Pewag Grade 100 Alloy Steel
Tough Powder Coat Finish
4:1 Design Factor
Proof Tested
Embossed with Grade & Size
Designed for General Purpose Lifting When a Large Throat Opening is Needed
For applications where jaw size "g" of the KHS hook is inadequate; mainly in foundries.
Before using the hook, check whether hooks without safety catch are allowed to be used
for this particular application
Spare Parts Always Available
Made in Europe

grade 100 winner clevis foundry hook Pewag

According to EN 1677-4 with increased load capacity

For Pewag clevis system

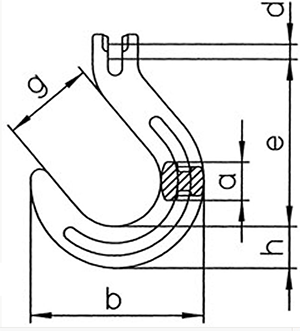

Part Number	Reference Number	Working Load Limit 4:1	For Chain Size	Dimensions						Weight Ea.
Part Number	Reference Number	Working Load Limit 4:1	For Chain Size	e	h	a	g	d		Weight Ea.
60779	KFW7	4,300	9/32"	4.76	1.14	0.98	2.52	0.35	4.65	2.24
60780	KFW8	5,700	5/16"	4.76	1.14	0.98	2.52	0.39	4.65	2.29
60781	KFW10	8,800	3/8"	5.51	1.38	1.25	2.99	0.49	5.62	3.83
60782	KFW13	15,000	1/2"	6.69	1.65	1.57	3.5	0.62	6.69	7.44

Part Number	Description	Brand	Weight	Price	Quantity
60779	9/32" (KFW7) Grade 100 Clevis Foundry Hook	Pewag	2.24 lbs	$97.37	+ -
60780	5/16" (KFW8) Grade 100 Clevis Foundry Hook	Pewag	2.29 lbs	$102.42	+ -
60781	3/8" (KFW10) Grade 100 Clevis Foundry Hook	Pewag	3.83 lbs	$139.87	+ -
60782	1/2" (KFW13) Grade 100 Clevis Foundry Hook	Pewag	7.44 lbs	$211.69	+ -
