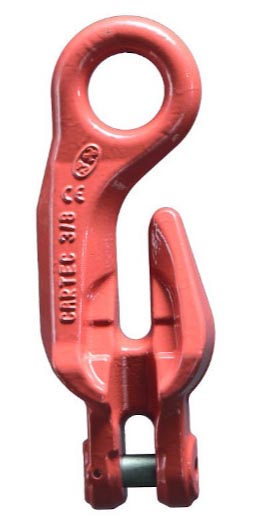

Clevis Shortening Hook

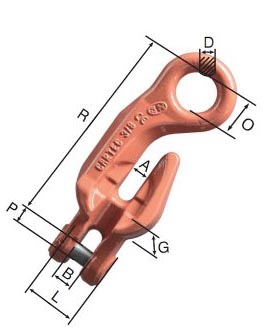

clevis shortening hook spec image

Part Number	For Chain Size	A"	B"	D"	G"	H"	O"	R"	PxL	Weight (lbs)	WLL (lbs)
CDFX06	7/32-1/4	0.31	0.30	0.35	1.14	1.46	0.71	3.35	0.30 x 0.69	0.66	3,000
CDFX07	9/32	0.37	0.39	0.47	1.54	2.13	0.94	4.82	0.35 x 0.89	1.48	4,300
CDFX08	5/16	0.37	0.39	0.47	1.54	2.13	0.94	4.80	0.39 x 0.89	1.48	5,700
CDFX10	3/8	0.51	0.47	0.57	1.97	2.76	1.22	6.30	0.51 x 1.24	2.87	8,800
CDFX13	1/2	0.63	0.61	0.71	2.52	3.62	1.46	8.03	0.63 x 1.65	6.61	15,000
CDFX16	5/8	0.79	0.73	0.94	3.15	4.01	1.89	9.13	0.83 x 2.03	11.46	22,600

Part Number	Description	Brand	Weight	Price	Quantity
CDFX06	7/32" - 1/4" Grade 100 Clevis Shortening Hook	Cartec	0.66 lbs	$39.29	+ -
CDFX07	9/32" Grade 100 Clevis Shortening Hook	Cartec	1.48 lbs	$48.97	+ -
CDFX08	5/16" Grade 100 Clevis Shortening Hook	Cartec	1.48 lbs	$49.17	+ -
CDFX10	3/8" Grade 100 Clevis Shortening Hook	Cartec	2.87 lbs	$72.74	+ -
CDFX13	1/2" Grade 100 Clevis Shortening Hook	Cartec	6.61 lbs	$146.95	+ -
CDFX16	5/8" Grade 100 Clevis Shortening Hook	Cartec	11.46 lbs	$212.40	+ -
