Pewag Winner Pro Grade 100

Pewag Grade 100 Alloy Steel
Tough Powder Coat Finish
4:1 Design Factor
Proof Tested
Embossed with Grade & Size
Designed for General Connecting Master Links to Chain,
Chain to Chain or Hook to Chain
Made in Europe
Spare Parts Always Available

grade 100 winner connecting link non removable

According to EN 1677-4 with increased load capacity
For pewag connex system

Connecting link for:
Applications where the pin must not be removed
or must be secured by positive locking.
Only for straight pull

Part Number	Reference Number	Working Load Limit (Lbs.)	For Chain Size	Dimensions						Weight Ea.

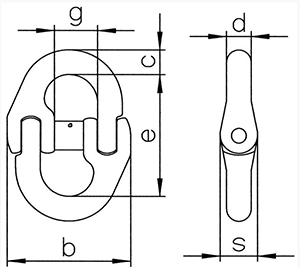

Part Number	Reference Number	Working Load Limit (Lbs.)	For Chain Size	e	c	s	d	b	g	Weight Ea.
57547	CLW7	4,300	9/32"	2.01	0.39	0.51	0.35	1.83	0.67	0.26
93058	CLW10	8,800	3/8"	2.83	0.50	0.70	0.50	2.48	0.91	0.93
40698	CLW13	15,000	1/2"	3.46	0.75	0.87	0.66	3.11	1.09	1.85
74337	CLW16	22,600	5/8"	4.06	0.83	1.14	0.83	4.17	1.30	2.51

Part Number	Description	Brand	Weight	Price	Quantity
57547	9/32" (CLW7) Grade 100 Connecting Link - Non Removable	Pewag	0.26 lbs	$41.67	+ -
93058	3/8" (CLW10) Grade 100 Connecting Link - Non Removable	Pewag	0.96 lbs	$39.77	+ -
40698	1/2" (CLW13) Grade 100 Connecting Link - Non Removable	Pewag	1.85 lbs	$62.65	+ -
74337	5/8" (CLW16) Grade 100 Connecting Link - Non Removable	Pewag	2.51 lbs	$98.88	+ -
