Custom Spreader Beam HD End Cap - Pair

Manufactured to exceed all ASME B30.20 and OSHA regulations
when assembled to specifications using A53 Grade B Schedule 80 pipe.
Painted safety yellow for increased visibility.
ALL End Caps shipped with proof load certification paperwork.
Durable construction ideally suited to jobsite or warehouse use.
Made in U.S.A
Top rigging available - call for details.
ALL lifting equipment individually proof loaded per OSHA requirements.
Minimum horizontal top rigging angle of 45° - recommend a minimum angle of 60°.

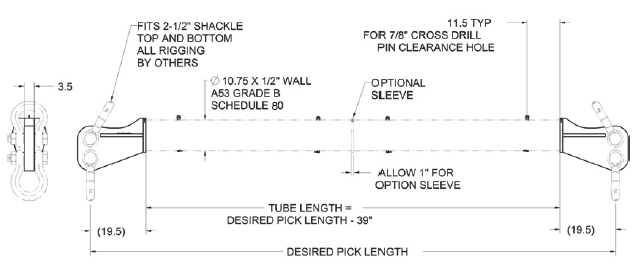

custom spreader beam

Outside spread in feet / WLL in pounds ***45 or 60 Degree Top Rigging
Part Number	Weight	6'	8'	10'	15'	20'	25'	30'	35'	40'
22525	425 lbs. each	160,000	160,000	160,000	160,000	160,000	160,000	160,000	150,000	100,000
22524	185 lbs.	Optional Sleeve

Part Number	Description	Brand	Weight	Price	Quantity
22525	Custom Spreader Beam HD End Cap Kit Pair	M&W	850 lbs	$13544.25	+ -
22524	Optional Sleeve - Custom Spreader Beam HD End Cap Kit	M&W	185 lbs	$4505.16	+ -
