DynamicLift™ Magnet

These lightweight and powerful Rare Earth permanent lift magnets can
be used on flat or round surfaces and contain an internal release
On/Off device that does not contact or damage the surface of the part
being lifted. DynamicLifts™ also offer excellent holding on thin gauge
ferrous metals to comparable Rare Earth lift magnets.

On/Off actuated Rare Earth design
Lifts flat or round loads horizontally and flat loads vertically
Heat resistant up to 180°F (82°C)
Top rotating and Locking On/Off handle
3:1 Design Factor
ASME B30.20 BHT-1 Design Category B Service Class 3

Click here to view Medical Disclaimer

Part Number	Overall			Magnet			Bail			Weight (lbs)
Rare Earth DynamicLift® Magnets
Part Number	WLL (lbs)	Ht. (in)	Ln. (in)	Ht. (in)	Wd. (in)	Ln. (in)	Th. (in)	Ht. (in)	Wd. (in)	Weight (lbs)

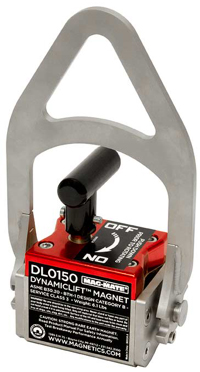

DL0150	150	9.00	4.25	2.75	2.50	3.00	0.25	2.25	3.00	6.1

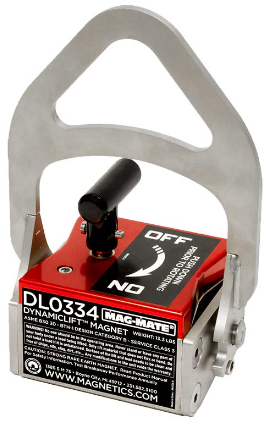

DL0334	334	9.75	5.75	3.00	4.00	4.25	0.25	2.25	4.00	13.3

Part Number	Horizontal Flat Part / Sheet Lifting Applications			Vertical Flat Part / Sheet Lifting Applications		Horizontal Round Part Lifting Applications
*Working Load Limit (WLL) in lbs & Maximum Sheet Length For Single Magnet Use**
Part Number	WLL 1/4" (6' Lg)	WLL 3/8" (8' Lg)	WLL 1/2" (8' Lg)	WLL (lbs)	Minimum Thickness (in)	WLL (lbs)	Minimum Diameter (in)	Minimum Wall Thickness (in)	Max. WLL (kbs) at Min. Dia. & Thickness
DL0150	150	150	150	37.5	1.00	75	2.00	0.125	65
DL0334	275	320	334	83.5	1.00	167	4.00	0.125	100
NOTE: the Working Load Limit (WLL) values for the DynamicLift™ Magnets are stated at 33% of the actual value. We recommend when lifting sheets over 8 feet in length, use 2 or more lifts on a spreader bar to prevent sheet flexing, sagging or peel-off. Thin material is susceptible to magnetic bleed through, resulting in two sheets being lifted at once. Consult the factory before specifying these magnets for use on round materials. Round Item WLL Values are based on ideal conditions. Length, wall thickness, diameter and surface can all affect the magnet's performance. *Maximum sheet lengths are selected due to the sag characteristics of the specified sheet. The item to be lifted must cover the entire length and width of the magnetic poles to properly engage and release.

Part Number	Description	Brand	Weight	Price	Quantity
DL0150	Rare Earth DynamicLift™ Magnets - WLL 150 lbs.	Industrial Magnetics	6.1 lbs	$646.35	+ -
DL0334	Rare Earth DynamicLift™ Magnets - WLL 334 lbs.	Industrial Magnetics	13.3 lbs	$1250.00	+ -
