FBM Series Electric Chain Hoist (Dual Speed) w/ Single Speed Electric Trolley

Single Voltage 3-Phase, 460V Only, 60Hz, Galvanized Load Chain, Standard Emergency Stop Button, Chain Container MADE IN JAPAN

Part Number	WLL (lbs)	WLL (mt)	Standard Lift (ft)	Lifting Speed (ft/min) (FB) High:Low Speed		Traversing Speed (ft/min)	Min. Distance H (in) Hook : Lug	Traversing I-Beam Width	Trolley Min. Radius (in)	Net Weight
Part Number	WLL (lbs)	WLL (mt)	Standard Lift (ft)	50Hz	60Hz	50Hz/60Hz	Min. Distance H (in) Hook : Lug	Traversing I-Beam Width	Trolley Min. Radius (in)	Net Weight
FBM-0.5	1100	0.5	10	23 / 6	27.5 / 7	65 / 78 MAF type 32 / 20 MAS type	27.36 (23.62)	2.95-5.91	43.31	171
FBM-1	2200	1	10	20 / 5	24.5 / 6		28.74 (24.61)	2.95-5.91	43.31	199
FBM-2	4400	2	10	10 / 1.6	12.5 / 3		35.83 (29.53)	3.94-5.91	59.06	241
FBM-3	6600	3	10	7 / 1.6	8 / 2		40.16 (33.86)	3.94-5.91	59.06	339

FAM Series Specifications

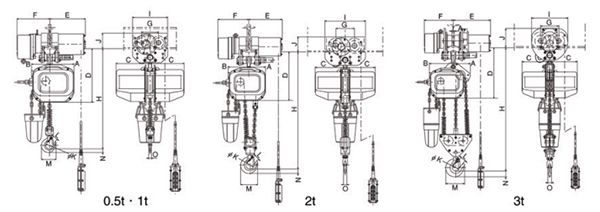

Dimensions

Part Number	WLL (lbs)	WLL (mt)	A	B	C	*D	*E	*F	G	I	*J	K	L	M	N	O	P (dia. of wheel)
FBM-0.5	1100	0.5	6.34	4.88	8.82	17.97	9.88 (10.94)	8.6	4.72	9.69	4.49	1.69	1.04	3.31	0.75	0.55	2.68
FBM-1	2200	1	6.69	5.04	9.41	19.25	9.88 (10.94)	8.6	4.72	9.69	4.49	1.97	1.22	4..06	0.98	0.75	2.68
FBM-2	4400	2	5.24	6.50	9.41	21.65	10.51 (11.57)	9.72	5.83	12.76	5.39	2.56	1.5	5.33	1.38	1.08	3.29
FBM-3	6600	3	5.83	8.19	9.41	22.91	12.76 (15.75)	9.92	6.3	12.44	7.13	2.36	1.69	6.5	1.93	1.26	3.86

* Standard pendant hangs approximately 2' less than the lift
* For lifts or PB control lengths other than standard lift, use the base adder prices above -start at standard lift
* Contact customer service for lift and pendant length limitations
* Standard power supply cord is 16.4'
* Standard power supply for electric trolley is 1.6"
* S= single part chain
* hoist comes standard with chain container suitable for lifting length

Part Number	Description	Brand	Weight	Price	Quantity
FBM-0.5x10	1/2" ton 10' FBM Series Dual Speed Electric Chain Hoist	Elephant Lifting Products	165 lbs	$8969.52	+ -
FBM-0.5x15	1/2" ton 15' FBM Series Dual Speed Electric Chain Hoist	Elephant Lifting Products	171 lbs	$9241.98	+ -
FBM-0.5x20	1/2" ton 20' FBM Series Dual Speed Electric Chain Hoist	Elephant Lifting Products	176 lbs	$9520.14	+ -
FBM-1x10	1" ton 10' FBM Series Dual Speed Electric Chain Hoist	Elephant Lifting Products	194 lbs	$10144.90	+ -
FBM-1x15	1" ton 15' FBM Series Dual Speed Electric Chain Hoist	Elephant Lifting Products	199 lbs	$10434.40	+ -
FBM-1x20	1" ton 20' FBM Series Dual Speed Electric Chain Hoist	Elephant Lifting Products	204 lbs	$10720.60	+ -
FBM-2x10	2" ton 10' FBM Series Dual Speed Electric Chain Hoist	Elephant Lifting Products	232 lbs	$10604.30	+ -
FBM-2x15	2" ton 15' FBM Series Dual Speed Electric Chain Hoist	Elephant Lifting Products	241 lbs	$10991.90	+ -
FBM-2x20	2" ton 20' FBM Series Dual Speed Electric Chain Hoist	Elephant Lifting Products	250 lbs	$11381.80	+ -
FBM-3x10	3" ton 10' FBM Series Dual Speed Electric Chain Hoist	Elephant Lifting Products	326 lbs	$12791.90	+ -
FBM-3x15	3" ton 15' FBM Series Dual Speed Electric Chain Hoist	Elephant Lifting Products	339 lbs	$13322.00	+ -
FBM-3x20	3" ton 20' FBM Series Dual Speed Electric Chain Hoist	Elephant Lifting Products	351 lbs	$13869.20	+ -
