Grade 100 Eye Self Locking Hook

Name: Grade 100 Eye Self Locking Hook
Price: 84.57 USD
Availability: InStock

Stamperia

Cartec Fittings are manufactured by Stamperia Carcano Giuseppe, spa in Italy.
They have been producing first class forgings since 1960.
All the Cartec forgings are approved by the German standards company BG Holz und Metall.
This can be identified with the quality mark "H92" on every piece.
This ISO 9001-2008 plant ensures complete material traceability on each product.

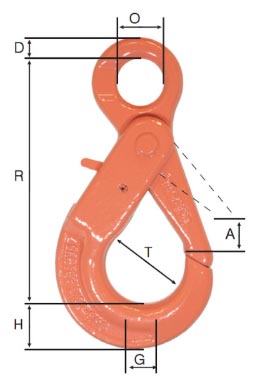

Grade 100 eye self locking hook specifications image

The latch on this hook automatically closes when pulling force is applied to the sling
Designed to be attached directly to a length of chain via a connecting link.
Grade 100 alloy steel
Increase in working load limit by at least 25% as compared to a similar product in Grade 80
Tough powder coat finish
Replacement parts always available
Proof tested and certified

PART NUMBER	FOR CHAIN (in)	A (in)	D (in)	G (in)	H (in)	O (in)	R (in)	T (in)	WORKING LOAD LIMIT	WEIGHT (lbs)
CROX06	7/32"-1/4"	1.10	0.43	0.63	0.83	0.83	4.29	1.38	3,000	1.10
CROX08	9/32"-5/16"	1.34	0.47	0.79	1.02	1.06	5.31	1.69	5,700	2.12
CROX10	3/8"	1.77	0.63	0.98	1.18	1.34	6.61	2.20	8,800	3.64
CROX13	1/2"	2.01	0.79	1.38	1.57	1.57	8.07	2.72	15,000	7.17
CROX16	5/8"	2.36	1.06	1.42	1.97	1.97	9.88	3.15	22,600	13.45
CROX20	3/4"	2.76	1.18	2.36	2.64	2.36	11.42	3.54	35,300	21.61
CROX22	7/8"	3.15	1.26	2.44	2.76	2.76	12.68	3.94	42,700	31.75

Part Number	Description	Brand	Weight	Price	Quantity
CROX08	9/32"-5/16" Grade 100 Eye Self Locking Hook	Cartec	2.12 lbs	$84.57	+ -
CROX10	3/8" Grade 100 Eye Self Locking Hook	Cartec	3.64 lbs	$108.17	+ -
CROX13	1/2" Grade 100 Eye Self Locking Hook	Cartec	7.16 lbs	$169.13	+ -
CROX16	5/8" Grade 100 Eye Self Locking Hook	Cartec	13.45 lbs	$293.03	+ -
CROX20	3/4" Grade 100 Eye Self Locking Hook	Cartec	21.61 lbs	$511.24	+ -
CROX22	7/8" Grade 100 Eye Self Locking Hook	Cartec	31.75 lbs	$724.44	+ -
CROX06	7/32"-1/4" Grade 100 Eye Self Locking Hook	Cartec	1.1 lbs	$72.51	+ -

Grade 100 Eye Self Locking Hook
