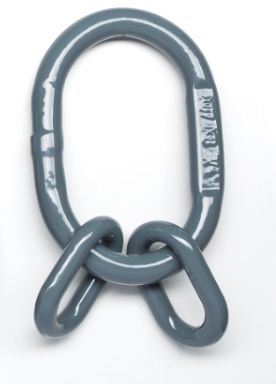

Grade 80/100 Quad Master Links

Cartec Fittings are manufactured by Stamperia Carcano Giuseppe, spa in Italy.
They have been producing first class forgings since 1960.
All the Cartec forgings are approved by the German standards company BG Holz und Metall.
This can be identified with the quality mark "H92" on every piece.
This ISO 9001-2008 plant ensures complete material traceability on each product.

Engineered to work with Grade 80 and Grade 100 Alloy Steel
Increased working load limit by at least 25% as compared to a similar product in Grade 80
Designed to make a three or four leg chain or wire rope sling
Raised letter embossing of size and grade for easy identification
Proof Tested & Certified
Master Links Made in Germany

Product Number	Trade Size	WLL 4:1 lbs	WLL 5:1 lbs	Inside Dim. Masters (inches)			Inside Dim. Subs (inches)			For Chain	Weight lbs
Product Number	Trade Size	WLL 4:1 lbs	WLL 5:1 lbs	i-length	i-width	dia	i-length	i-width	dia	For Chain	Weight lbs
AKX1813W	3/4''	11,200	8,960	5.91	3.54	0.71	2.13	0.98	0.51	9/32"	2.90
AKX2216	7/8''	15,200	12,160	6.30	3.54	0.87	2.76	1.34	0.63	9/32"+5/16"	4.88
AKX2618	1''	26,000	20,800	7.09	3.94	1.02	3.35	1.57	0.71	3/8"	7.39
AKX3222	1 1/4''	39,000	31,200	7.87	4.33	1.26	4.53	1.97	0.87	1/2"	13.24
AKX3626	1 1/2''	58,700	46,960	10.24	5.51	1.42	5.51	2.56	1.02	5/8"	21.98
AKX4532	1 3/4"	105,900	84,720	13.39	7.09	1.75	5.91	2.76	1.26	3/4"	41.56
AKX5136	2"	110,900	88,720	13.78	7.48	2.01	6.69	2.95	1.42	7/8"	56.76
AKX5740	2 1/4"	155,100	124,080	15.75	7.87	2.24	6.69	3.15	1.57	1"	77.44
AKX7150	2 3/4"	271,200	216,960	18.11	9.84	2.80	7.87	3.94	1.97	1-1/4"	149.00

Part Number	Description	Brand	Weight	Price	Quantity
AKX1813W	3/4" Grade 100 Quad Master Links	Cartec	2.9 lbs	$48.77	+ -
AKX2216	7/8" Grade 100 Quad Master Links	Cartec	4.88 lbs	$70.41	+ -
AKX2618	1" Grade 100 Quad Master Links	Cartec	7.39 lbs	$87.91	+ -
AKX3222	1 1/4" Grade 100 Quad Master Links	Cartec	13.24 lbs	$155.96	+ -
AKX3626	1 1/2" Grade 100 Quad Master Links	Cartec	21.98 lbs	$235.61	+ -
AKX4532	1 3/4" Grade 100 Quad Master Links	Cartec	41.56 lbs	$627.37	+ -
AKX5740	2 1/4" Grade 100 Quad Master Links	Cartec	77.44 lbs	$1101.33	+ -
AKX7150	2 3/4" Grade 100 Quad Master Links	Cartec	149 lbs	$3142.73	+ -
AKX5136	2" Grade 100 Quad Master Links	Cartec	56.76 lbs	$686.37	+ -
