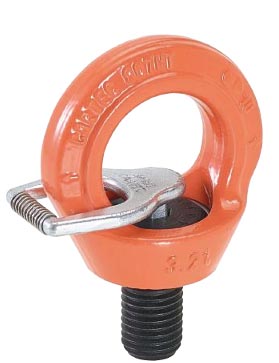

Grade 100 Rotating Eyebolt with Hex Key

Name: Grade 100 Rotating Eyebolt with Hex Key
Price: 72.77 USD
Availability: InStock

Cartec Fittings are manufactured by Stamperia Carcano Giuseppe, spa in Italy.
They have been producing first class forgings since 1960.
All the Cartec forgings are approved by the German standards company BG Holz und Metall.
This can be identified with the quality mark "H92" on every piece.
This ISO 9001-2008 plant ensures complete material traceability on each product.

Heavy Lift Swivel Hoist Ring

Stainless Steel Available - Call to order 866-392-2829

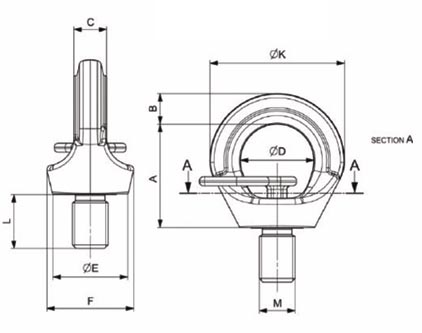

Part Number	Thread Size	Working Load Limit	Dimensions (mm)									Weight (Lbs)
Part Number	Thread Size	Working Load Limit	A	B	C	D	E	F	K	L	CH	Weight (Lbs)
C807XCHT06	M6	0.10	27	9.5	7	20	23	28	37	9	6	0.17
C807XCHT08	M8	0.30	35	11	9	25	25.5	30	46	12	6	0.26
C807XCHT10	M10	0.40	33.7	10	9.8	25	25.5	30	46	15	6	0.26
C807XCHT12	M12	0.75	41.5	12.5	11.5	30	30.6	36.5	55.5	18	8	0.44
C807XCHT14	M14	0.75	41.5	12.5	11.5	30	30.6	36.5	55.5	18	8	0.44
C807XCHT16	M16	1.50	49.5	14.5	15.7	35	36.5	42	64.5	24	10	0.77
C807XCHT18	M18	1.50	49.5	14.5	15.7	35	36.5	42	64.5	24	10	0.77
C807XCHT20	M20	2.30	58	16	18	40	42	52.5	74.5	30	12	1.32
C807XCHT22	M22	2.30	58	16	18	40	42	52.5	74.5	30	12	1.32
C807XCHT24	M24	3.20	69	20.5	22	49	50	61	90	36	12	2.20
C807XCHT27	M27	3.20	69	20.5	22	49	50	61	90	36	12	2.20
C807XCHT30	M30	4.50	86	25.5	28	60	66	75	111	45	17	4.40
C807XCHT33	M33	4.50	86	25.5	28	60	66	75	111	45	17	4.40
C807XCHT36	M36	7.00	105	32	30	74	77	96.5	135	55	22	7.49
C807XCHT42	M42	9.00	118	38	37	82	87	110	158	65	24	12.56
C807XCHT48	M48	12.00	137	43	38	95	102	124.5	180	72	27	18.73

Part Number	Description	Brand	Weight	Price	Quantity
C807XCHT06	M6 - 0.1 ton Rotating Eyebolt w/ Hex Key Grade 100	Cartec	0.17 lbs	$72.77	+ -
C807XCHT08	M8 - 0.3 ton Rotating Eyebolt w/ Hex Key Grade 100	Cartec	0.26 lbs	$74.73	+ -
C807XCHT10	M10 - 0.4 ton Rotating Eyebolt w/ Hex Key Grade 100	Cartec	0.26 lbs	$74.73	+ -
C807XCHT12	M12 - 0.75 ton Rotating Eyebolt w/ Hex Key Grade 100	Cartec	0.44 lbs	$82.60	+ -
C807XCHT14	M14 - 0.75 ton Rotating Eyebolt w/ Hex Key Grade 100	Cartec	0.44 lbs	$94.40	+ -
C807XCHT16	M16 - 1.5 ton Rotating Eyebolt w/ Hex Key Grade 100	Cartec	0.77 lbs	$96.37	+ -
C807XCHT18	M18 - 1.5 ton Rotating Eyebolt w/ Hex Key Grade 100	Cartec	0.77 lbs	$106.20	+ -
C807XCHT20	M20 - 2.3 ton Rotating Eyebolt w/ Hex Key Grade 100	Cartec	1.32 lbs	$110.13	+ -
C807XCHT22	M22 - 2.3 ton Rotating Eyebolt w/ Hex Key Grade 100	Cartec	1.32 lbs	$123.90	+ -
C807XCHT24	M24 - 3.2 ton Rotating Eyebolt w/ Hex Key Grade 100	Cartec	2.2 lbs	$135.70	+ -
C807XCHT27	M27 - 3.2 ton Rotating Eyebolt w/ Hex Key Grade 100	Cartec	2.2 lbs	$216.33	+ -
C807XCHT30	M30 - 4.5 ton Rotating Eyebolt w/ Hex Key Grade 100	Cartec	4.4 lbs	$236.00	+ -
C807XCHT33	M33 - 4.5 ton Rotating Eyebolt w/ Hex Key Grade 100	Cartec	4.4 lbs	$354.00	+ -
C807XCHT36	M36 - 7 ton Rotating Eyebolt w/ Hex Key Grade 100	Cartec	7.49 lbs	$373.67	+ -
C807XCHT42	M42 - 9 ton Rotating Eyebolt w/ Hex Key Grade 100	Cartec	12.56 lbs	$527.07	+ -
C807XCHT48	M48 - 12 ton Rotating Eyebolt w/ Hex Key Grade 100	Cartec	18.73 lbs	$649.00	+ -

Grade 100 Rotating Eyebolt with Hex Key
