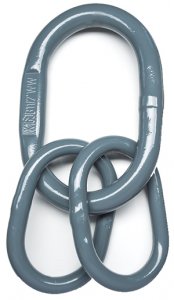

Grade 100 Welded Master Link Assemblies with Extra Large Sub-Links

Cartec Fittings are manufactured by Stamperia Carcano Giuseppe, spa in Italy.
They have been producing first class forgings since 1960.
All the Cartec forgings are approved by the German standards company BG Holz und Metall.
This can be identified with the quality mark "H92" on every piece.
This ISO 9001-2008 plant ensures complete material traceability on each product.

Product Number	Trade Size	WLL 4:1 lbs	WLL 5:1 lbs	Inside Dim. Masters (inches)			Inside Dim. Subs (inches)			For Chain	Weight lbs
Product Number	Trade Size	WLL 4:1 lbs	WLL 5:1 lbs	i-length	i-width	dia	i-length	i-width	dia	For Chain	Weight lbs
AWX1813	3/4''	12,900	10,320	5.91	3.54	0.71	4.33	2.36	0.51	7/32"-9/32"	3.52
AWX2216	7/8''	17,100	13,680	6.30	3.54	0.87	4.33	2.36	0.63	9/32"-5/16"	5.63
AWX2618	1''	26,400	21,120	7.09	3.94	1.02	5.31	2.95	0.71	3/8"	8.58
AWX3222	1 1/4''	45,000	36,000	7.87	4.33	1.26	6.30	3.55	0.87	1/2"	15.18
AWX3626	1 1/2''	67,800	54,240	10.24	5.51	1.42	7.09	3.94	1.02	5/8"	24.09
AWX4540	1 3/4"	105,900	84,720	13.39	7.09	1.75	11.81	6.3	1.63	3/4"	67.24

Part Number	Description	Brand	Weight	Price	Quantity
AWX1813	3/4" Grade 100 Welded Master Link Assemblies with Extra Large Sub-Links	Cartec	3.52 lbs	$60.58	+ -
AWX2216	7/8" Grade 100 Welded Master Link Assemblies with Extra Large Sub-Links	Cartec	5.63 lbs	$88.11	+ -
AWX2618	1" Grade 100 Welded Master Link Assemblies with Extra Large Sub-Links	Cartec	8.58 lbs	$125.87	+ -
AWX3222	1 1/4" Grade 100 Welded Master Link Assemblies with Extra Large Sub-Links	Cartec	15.18 lbs	$194.70	+ -
AWX3626	1 1/2" Grade 100 Welded Master Link Assemblies with Extra Large Sub-Links	Cartec	24.09 lbs	$306.80	+ -
AWX4540	1 3/4" Grade 100 Welded Master Link Assemblies with Extra Large Sub-Links	Cartec	67.24 lbs	$865.33	+ -

Grade 100 Welded Master Link Assemblies with Extra Large Sub-Links
