High Security Padlock NE12LE1 Grade 5, 12mm

Application
High Security padlock, for general use.

Operation
The shackle is locked by a double ball bearing mechanism.
Rotate key 90˚ to unlock

Materials
Body: steel
Shackle: hardened boron alloy steel

Additional features
Key retaining
Drainage holes prevent freezing

Finishes
Black electrophoretic

Cylinder mechanism
Mul‑T‑Lock's unique high precision pin tumbler system.
Pick and drill resistant for High Security needs.

Keys
Reversible nickel silver key with plastic key head
and colored insert for identification.
Also available in all nickel silver.

Cylinder platforms
7x7®; Interactive®+; MT5®

Cylinder options
Keyed different
Keyed alike
Master keyed

Standards
EN12320

Comes standard with 2 Keys (multiple keys are available. Please call for details and cost)

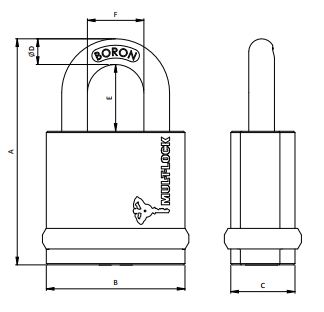

NE Series padlock specifications

Part Number		Body			Shackle			Standard Grade
Part Number		A	B	C	D	E	F	Standard Grade
NE12LE1	mm	101	66	28	12	25	30	5
NE12LE1	Inch	3.97	2.60	1.10	0.47	1	1.18	5
