    • Lifting/Spreader Beams
    • Lifting Beams
    • Low Headroom, Multiple Length Standard
    • Low Headroom, Multiple Length Standard Lifting Beam 15,000 lbs. WLL
    • Low Headroom, Multiple Length Standard Lifting Beam 15,000 lbs. WLL

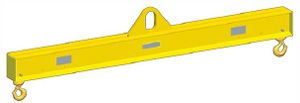

    Low Headroom, Multiple Length Standard Lifting Beam 15,000 lbs. WLL
    • Low Headroom, Multiple Length Standard Lifting Beam 15,000 lbs. WLL Low Headroom, Multiple Length Standard Lifting Beam 15,000 lbs. WLL
    Low Headroom, Multiple Length Standard Lifting Beam 15,000 lbs. WLL

    Low Headroom, Multiple Length Standard Lifting Beam 15,000 lbs. WLL

    • $3462.28
    • Manufactured to exceed all ASME B30.20 and OSHA regulations.
    • Painted safety yellow for increased visibility.
    • ALL Lifting Beams proof loaded and shipped with certification paperwork.
    • Durable construction ideally suited to jobsite or warehouse use.
    • Made in U.S.A.
    • Machined to exacting tolerances.
    • Custom lettering available - call for details.
    • Custom designs available - call for engineering.
    • ALL lifting equipment individually proof loaded per OSHA requirements.
    • Pictured with standard alloy swivel latch hooks.
    • Ideally suited for low headroom lifting applications.
    • Multiple latch hooks, eye latch hooks and shackle plates available.


    American Flag
    Made in the USA!

                    M&W low headroom lifting beams
    • Weight
      265.0000 lbs
    • SKU
      12162
    Working
    Load Limit in Pounds
    Part Number
    Headroom (in)
    Weight (lbs)
    Outside Length (L) in Feet
    Other
    Dimensions
    4
    6
    8
    10
    12
    14
    16
    18
    20
    15,000
    Part Number
    HR =
    LBS =
    12162
    24.27
    265
    12165
    24.28
    365
    12168
    25.28
    450
    12171
    25.28
    640
    12174
    25.28
    870
    12177
    27.28
    1,000
    12180
    30.28
    1,265
    12183
    30.28
    1,405
    12186
    30.28
    1,785
    C=2.0
    A=4.0
    B=7.0
    D=1.25
    E=1.56
    * Call for specifications on larger sizes and capacities 866.392.2829
    12186 12183 12180 12177 12174 12171 12168 12165 12162
    12186 12183 12180 12177 12174 12171 12168 12165 12162
    • Part Number
      12162, 12165, 12168, 12171, 12174, 12177, 12180, 12183, 12186
    • Description
      4 Ft. 15,000 lbs. WLL Low Headroom, Multiple Length Standard Lifting Beam, 6 Ft. 15,000 lbs. WLL Low Headroom, Multiple Length Standard Lifting Beam, 8 Ft. 15,000 lbs. WLL Low Headroom, Multiple Length Standard Lifting Beam, 10 Ft. 15,000 lbs. WLL Low Headroom, Multiple Length Standard Lifting Beam, 12 Ft. 15,000 lbs. WLL Low Headroom, Multiple Length Standard Lifting Beam, 14 Ft. 15,000 lbs. WLL Low Headroom, Multiple Length Standard Lifting Beam, 16 Ft. 15,000 lbs. WLL Low Headroom, Multiple Length Standard Lifting Beam, 18 Ft. 15,000 lbs. WLL Low Headroom, Multiple Length Standard Lifting Beam, 20 Ft. 15,000 lbs. WLL Low Headroom, Multiple Length Standard Lifting Beam
    • Brand
      M&W, Made in the USA
    Part Number Description Brand Weight Price Quantity
    12162 4 Ft. 15,000 lbs. WLL Low Headroom, Multiple Length Standard Lifting Beam M&W 265 lbs $3462.28 + -
    12165 6 Ft. 15,000 lbs. WLL Low Headroom, Multiple Length Standard Lifting Beam M&W 365 lbs $3792.02 + -
    12168 8 Ft. 15,000 lbs. WLL Low Headroom, Multiple Length Standard Lifting Beam M&W 450 lbs $4080.55 + -
    12171 10 Ft. 15,000 lbs. WLL Low Headroom, Multiple Length Standard Lifting Beam M&W 640 lbs $4588.90 + -
    12174 12 Ft. 15,000 lbs. WLL Low Headroom, Multiple Length Standard Lifting Beam M&W 870 lbs $5358.30 + -
    12177 14 Ft. 15,000 lbs. WLL Low Headroom, Multiple Length Standard Lifting Beam M&W 1000 lbs $5701.78 + -
    12180 16 Ft. 15,000 lbs. WLL Low Headroom, Multiple Length Standard Lifting Beam M&W 1265 lbs $6306.30 + -
    12183 18 Ft. 15,000 lbs. WLL Low Headroom, Multiple Length Standard Lifting Beam M&W 1405 lbs $6718.48 + -
    12186 20 Ft. 15,000 lbs. WLL Low Headroom, Multiple Length Standard Lifting Beam M&W 1785 lbs $8435.88 + -
    • $3462.28
