    • Lifting/Spreader Beams
    • Lifting Beams
    • Low Headroom, Multiple Length Standard
    • Low Headroom, Multiple Length Standard Lifting Beam 2,000 lbs. WLL
    • Low Headroom, Multiple Length Standard Lifting Beam 2,000 lbs. WLL
    Low Headroom, Multiple Length Standard Lifting Beam 2,000 lbs. WLL
    • Low Headroom, Multiple Length Standard Lifting Beam 2,000 lbs. WLL Low Headroom, Multiple Length Standard Lifting Beam 2,000 lbs. WLL
    Low Headroom, Multiple Length Standard Lifting Beam 2,000 lbs. WLL

    Low Headroom, Multiple Length Standard Lifting Beam 2,000 lbs. WLL

    • $1703.66
    • Manufactured to exceed all ASME B30.20 and OSHA regulations.
    • Painted safety yellow for increased visibility.
    • ALL Lifting Beams proof loaded and shipped with certification paperwork.
    • Durable construction ideally suited to jobsite or warehouse use.
    • Made in U.S.A.
    • Machined to exacting tolerances.
    • Custom lettering available - call for details.
    • Custom designs available - call for engineering.
    • ALL lifting equipment individually proof loaded per OSHA requirements.

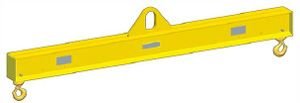

    • Pictured with standard alloy swivel latch hooks.
    • Ideally suited for low headroom lifting applications.
    • Multiple latch hooks, eye latch hooks and shackle plates available.


    American Flag
    Made in the USA!

                    M&W low headroom lifting beams
    • Weight
      56.0000 lbs
    • SKU
      11983

    Working
    Load Limit in Pounds
    Part Number
    Headroom(in)
    Weight(lbs)
    Outside Length (L) in Feet
    		  Other
    Dimensions
    4
    6
    8
    10
    12
    14
    16
    18
    20
    24
    2,000
    Part Number
    HR =
    LBS =
    11983
    13.11
    56
    11984
    13.11
    75
    11985
    14.11
    167
    11989
    14.11
    205
    11990
    14.11
    240
    12017
    15.11
    320
    12018
    15.11
    365
    12019
    15.11
    500
    12020
    16.11
    525
    12024
    17.11
    945
    C=.875
    A=3.0
    B=5.0
    D=.75
    E=.91
    * Call for specifications on larger sizes and capacities 866.392.2829
    12024 12020 12019 12018 12017 11990 11989 11985 11984 11983
    12024 12020 12019 12018 12017 11990 11989 11985 11984 11983
    • Part Number
      11983, 12020, 12019, 12018, 12017, 11990, 11989, 11985, 11984, 12024
    • Description
      4 Ft. 2,000 lbs. WLL Low Headroom, Multiple Length Standard Lifting Beam, 20 Ft. 2,000 lbs. WLL Low Headroom, Multiple Length Standard Lifting Beam, 18 Ft. 2,000 lbs. WLL Low Headroom, Multiple Length Standard Lifting Beam, 16 Ft. 2,000 lbs. WLL Low Headroom, Multiple Length Standard Lifting Beam, 14 Ft. 2,000 lbs. WLL Low Headroom, Multiple Length Standard Lifting Beam, 12 Ft. 2,000 lbs. WLL Low Headroom, Multiple Length Standard Lifting Beam, 10 Ft. 2,000 lbs. WLL Low Headroom, Multiple Length Standard Lifting Beam, 8 Ft. 2,000 lbs. WLL Low Headroom, Multiple Length Standard Lifting Beam, 6 Ft. 2,000 lbs. WLL Low Headroom, Multiple Length Standard Lifting Beam, 24 Ft. 2,000 lbs. WLL Low Headroom, Multiple Length Standard Lifting Beam
    • Brand
      M&W, Made in the USA
    Part Number Description Brand Weight Price Quantity
    11983 4 Ft. 2,000 lbs. WLL Low Headroom, Multiple Length Standard Lifting Beam M&W 56 lbs $1703.66 + -
    11984 6 Ft. 2,000 lbs. WLL Low Headroom, Multiple Length Standard Lifting Beam M&W 75 lbs $1744.88 + -
    11985 8 Ft. 2,000 lbs. WLL Low Headroom, Multiple Length Standard Lifting Beam M&W 167 lbs $2005.93 + -
    11989 10 Ft. 2,000 lbs. WLL Low Headroom, Multiple Length Standard Lifting Beam M&W 205 lbs $2074.62 + -
    11990 12 Ft. 2,000 lbs. WLL Low Headroom, Multiple Length Standard Lifting Beam M&W 240 lbs $2335.67 + -
    12017 14 Ft. 2,000 lbs. WLL Low Headroom, Multiple Length Standard Lifting Beam M&W 320 lbs $2541.76 + -
    12018 16 Ft. 2,000 lbs. WLL Low Headroom, Multiple Length Standard Lifting Beam M&W 365 lbs $2665.41 + -
    12019 18 Ft. 2,000 lbs. WLL Low Headroom, Multiple Length Standard Lifting Beam M&W 500 lbs $2995.15 + -
    12020 20 Ft. 2,000 lbs. WLL Low Headroom, Multiple Length Standard Lifting Beam M&W 525 lbs $3022.63 + -
    12024 24 Ft. 2,000 lbs. WLL Low Headroom, Multiple Length Standard Lifting Beam M&W 945 lbs $4121.77 + -
    • $1703.66
