    • Lifting/Spreader Beams
    • Lifting Beams
    • Low Headroom, Multiple Length Standard
    • Low Headroom, Multiple Length Standard Lifting Beam 30,000 lbs. WLL
    • Low Headroom, Multiple Length Standard Lifting Beam 30,000 lbs. WLL

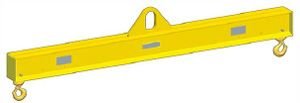

    Low Headroom, Multiple Length Standard Lifting Beam 30,000 lbs. WLL
    • Low Headroom, Multiple Length Standard Lifting Beam 30,000 lbs. WLL Low Headroom, Multiple Length Standard Lifting Beam 30,000 lbs. WLL
    Low Headroom, Multiple Length Standard Lifting Beam 30,000 lbs. WLL

    Low Headroom, Multiple Length Standard Lifting Beam 30,000 lbs. WLL

    • $6842.13
    • Manufactured to exceed all ASME B30.20 and OSHA regulations.
    • Painted safety yellow for increased visibility.
    • ALL Lifting Beams proof loaded and shipped with certification paperwork.
    • Durable construction ideally suited to jobsite or warehouse use.
    • Made in U.S.A.
    • Machined to exacting tolerances.
    • Custom lettering available - call for details.
    • Custom designs available - call for engineering.
    • ALL lifting equipment individually proof loaded per OSHA requirements.
    • Pictured with standard alloy swivel latch hooks.
    • Ideally suited for low headroom lifting applications.
    • Multiple latch hooks, eye latch hooks and shackle plates available.


    American Flag
    Made in the USA!

                    M&W low headroom lifting beams
    • Weight
      345.0000 lbs
    • SKU
      12223
    Working
    Load Limit in
    Pounds
    Part Number
    Headroom(in)
    Weight(lbs)
    Outside Length (L) in Feet
    		  Other
    Dimensions
    4
    6
    8
    10
    12
    14
    16
    18
    20
    30,000
    Part Number
    HR =
    LBS =
    12223
    29.00
    345
    12229
    29.00
    555
    12232
    34.00
    675
    12236
    34.00
    1,235
    12263
    40.20
    1,185
    12267
    40.48
    1,540
    12270
    40.66
    1,865
    12274
    40.84
    2,250
    12277
    41.07
    2,750
    C=2.5
    A=5.0
    B=9.0
    D=1.50
    E=2.08
    * Call for specifications on larger sizes and capacities 866.392.2829
    12277 12274 12270 12267 12263 12236 12232 12229 12223
    12277 12274 12270 12267 12263 12236 12232 12229 12223
    • Part Number
      12223, 12229, 12232, 12236, 12263, 12267, 12270, 12274, 12277
    • Description
      4 Ft. 30,000 lbs. WLL Low Headroom, Multiple Length Standard Lifting Beam, 6 Ft. 30,000 lbs. WLL Low Headroom, Multiple Length Standard Lifting Beam, 8 Ft. 30,000 lbs. WLL Low Headroom, Multiple Length Standard Lifting Beam, 10 Ft. 30,000 lbs. WLL Low Headroom, Multiple Length Standard Lifting Beam, 12 Ft. 30,000 lbs. WLL Low Headroom, Multiple Length Standard Lifting Beam, 14 Ft. 30,000 lbs. WLL Low Headroom, Multiple Length Standard Lifting Beam, 16 Ft. 30,000 lbs. WLL Low Headroom, Multiple Length Standard Lifting Beam, 18 Ft. 30,000 lbs. WLL Low Headroom, Multiple Length Standard Lifting Beam, 20 Ft. 30,000 lbs. WLL Low Headroom, Multiple Length Standard Lifting Beam
    • Brand
      M&W, Made in the USA
    Part Number Description Brand Weight Price Quantity
    12223 4 Ft. 30,000 lbs. WLL Low Headroom, Multiple Length Standard Lifting Beam M&W 345 lbs $6842.13 + -
    12229 6 Ft. 30,000 lbs. WLL Low Headroom, Multiple Length Standard Lifting Beam M&W 555 lbs $6416.22 + -
    12232 8 Ft. 30,000 lbs. WLL Low Headroom, Multiple Length Standard Lifting Beam M&W 675 lbs $7144.39 + -
    12236 10 Ft. 30,000 lbs. WLL Low Headroom, Multiple Length Standard Lifting Beam M&W 1235 lbs $8106.14 + -
    12263 12 Ft. 30,000 lbs. WLL Low Headroom, Multiple Length Standard Lifting Beam M&W 1185 lbs $10908.94 + -
    12267 14 Ft. 30,000 lbs. WLL Low Headroom, Multiple Length Standard Lifting Beam M&W 1540 lbs $12351.56 + -
    12270 16 Ft. 30,000 lbs. WLL Low Headroom, Multiple Length Standard Lifting Beam M&W 1865 lbs $13450.70 + -
    12274 18 Ft. 30,000 lbs. WLL Low Headroom, Multiple Length Standard Lifting Beam M&W 2250 lbs $15690.19 + -
    12277 20 Ft. 30,000 lbs. WLL Low Headroom, Multiple Length Standard Lifting Beam M&W 2750 lbs $16555.76 + -
    • $6842.13
