    • Lifting/Spreader Beams
    • Lifting Beams
    • Low Headroom, Multiple Length Standard
    • Low Headroom, Multiple Length Standard Lifting Beam 40,000 lbs. WLL
    • Low Headroom, Multiple Length Standard Lifting Beam 40,000 lbs. WLL

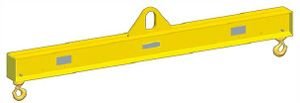

    Low Headroom, Multiple Length Standard Lifting Beam 40,000 lbs. WLL
    • Low Headroom, Multiple Length Standard Lifting Beam 40,000 lbs. WLL Low Headroom, Multiple Length Standard Lifting Beam 40,000 lbs. WLL
    Low Headroom, Multiple Length Standard Lifting Beam 40,000 lbs. WLL

    Low Headroom, Multiple Length Standard Lifting Beam 40,000 lbs. WLL

    • $6031.52
    • Manufactured to exceed all ASME B30.20 and OSHA regulations.
    • Painted safety yellow for increased visibility.
    • ALL Lifting Beams proof loaded and shipped with certification paperwork.
    • Durable construction ideally suited to jobsite or warehouse use.
    • Made in U.S.A.
    • Machined to exacting tolerances.
    • Custom lettering available - call for details.
    • Custom designs available - call for engineering.
    • ALL lifting equipment individually proof loaded per OSHA requirements.
    • Pictured with standard alloy swivel latch hooks.
    • Ideally suited for low headroom lifting applications.
    • Multiple latch hooks, eye latch hooks and shackle plates available.


    American Flag
    Made in the USA!



                    M&W low headroom lifting beams
    • Weight
      445.0000 lbs
    • SKU
      12250
    Working
    Load Limit in
    Pounds
    Part Number
    Headroom(in)
    Weight(lbs)
    Outside Length (L) in Feet
    		  Other
    Dimensions
    4
    6
    8
    10
    12
    14
    16
    18
    20
    40,000
    Part Number
    HR =
    LBS =
    12250
    33.81
    445
    12254
    33.81
    850
    12257
    33.81
    1,050
    12287
    41.79
    1,195
    12292
    41.97
    1,540
    12295
    42.15
    1,850
    12300
    43.58
    2,130
    12304
    43.74
    2,555
    12307
    43.92
    3,045
    C=2.5
    A=5.0
    B=9.0
    D=1.50
    E=2.08
    * Call for specifications on larger sizes and capacities 866.392.2829
    12307 12304 12300 12295 12292 12287 12257 12254 12250
    12307 12304 12300 12295 12292 12287 12257 12254 12250
    • Part Number
      12250, 12254, 12257, 12287, 12292, 12295, 12300, 12304, 12307
    • Description
      4 Ft. 40,000 lbs. WLL Low Headroom, Multiple Length Standard Lifting Beam, 6 Ft. 40,000 lbs. WLL Low Headroom, Multiple Length Standard Lifting Beam, 8 Ft. 40,000 lbs. WLL Low Headroom, Multiple Length Standard Lifting Beam, 10 Ft. 40,000 lbs. WLL Low Headroom, Multiple Length Standard Lifting Beam, 12 Ft. 40,000 lbs. WLL Low Headroom, Multiple Length Standard Lifting Beam, 14 Ft. 40,000 lbs. WLL Low Headroom, Multiple Length Standard Lifting Beam, 16 Ft. 40,000 lbs. WLL Low Headroom, Multiple Length Standard Lifting Beam, 18 Ft. 40,000 lbs. WLL Low Headroom, Multiple Length Standard Lifting Beam, 20 Ft. 40,000 lbs. WLL Low Headroom, Multiple Length Standard Lifting Beam
    • Brand
      M&W, Made in the USA
    Part Number Description Brand Weight Price Quantity
    12250 4 Ft. 40,000 lbs. WLL Low Headroom, Multiple Length Standard Lifting Beam M&W 445 lbs $6031.52 + -
    12254 6 Ft. 40,000 lbs. WLL Low Headroom, Multiple Length Standard Lifting Beam M&W 850 lbs $6993.26 + -
    12257 8 Ft. 40,000 lbs. WLL Low Headroom, Multiple Length Standard Lifting Beam M&W 1050 lbs $7625.27 + -
    12287 10 Ft. 40,000 lbs. WLL Low Headroom, Multiple Length Standard Lifting Beam M&W 1195 lbs $11128.77 + -
    12292 12 Ft. 40,000 lbs. WLL Low Headroom, Multiple Length Standard Lifting Beam M&W 1540 lbs $11980.60 + -
    12295 14 Ft. 40,000 lbs. WLL Low Headroom, Multiple Length Standard Lifting Beam M&W 1850 lbs $14165.13 + -
    12300 16 Ft. 40,000 lbs. WLL Low Headroom, Multiple Length Standard Lifting Beam M&W 2130 lbs $9029.81 + -
    12304 18 Ft. 40,000 lbs. WLL Low Headroom, Multiple Length Standard Lifting Beam M&W 2555 lbs $15607.75 + -
    12307 20 Ft. 40,000 lbs. WLL Low Headroom, Multiple Length Standard Lifting Beam M&W 3045 lbs $17228.98 + -
    • $6031.52
