    • Lifting/Spreader Beams
    • Lifting Beams
    • Low Headroom, Multiple Length Standard
    • Low Headroom, Multiple Length Standard Lifting Beam 6,000 lbs. WLL
    • Low Headroom, Multiple Length Standard Lifting Beam 6,000 lbs. WLL

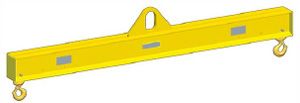

    Low Headroom, Multiple Length Standard Lifting Beam 6,000 lbs. WLL
    • Low Headroom, Multiple Length Standard Lifting Beam 6,000 lbs. WLL Low Headroom, Multiple Length Standard Lifting Beam 6,000 lbs. WLL
    Low Headroom, Multiple Length Standard Lifting Beam 6,000 lbs. WLL

    Low Headroom, Multiple Length Standard Lifting Beam 6,000 lbs. WLL

    • $2225.75
    • Manufactured to exceed all ASME B30.20 and OSHA regulations.
    • Painted safety yellow for increased visibility.
    • ALL Lifting Beams proof loaded and shipped with certification paperwork.
    • Durable construction ideally suited to jobsite or warehouse use.
    • Made in U.S.A.
    • Machined to exacting tolerances.
    • Custom lettering available - call for details.
    • Custom designs available - call for engineering.
    • ALL lifting equipment individually proof loaded per OSHA requirements.
    • Pictured with standard alloy swivel latch hooks.
    • Ideally suited for low headroom lifting applications.
    • Multiple latch hooks, eye latch hooks and shackle plates available.


    American Flag
    Made in the USA!

                    M&W low headroom lifting beams
    • Weight
      120.0000 lbs
    • SKU
      12069
    Working
    Load Limit
    in Pounds
    Part Number
    Headroom(in)
    Weight(lbs)
    Outside Length (L) in Feet
    Other
    Dimensions
    4
    6
    8
    10
    12
    14
    16
    18
    20
    24
    6,000
    Part Number
    HR =
    LBS =
    12069
    15.25
    120
    12084
    16.25
    180
    12087
    17.25
    255
    12090
    18.25
    380
    12094
    18.25
    440
    12098
    19.25
    635
    12102
    19.25
    715
    12106
    20.25
    990
    12109
    20.25
    1,295
    12112
    22.25
    1,310
    C=1.25
    A=3.0
    B=5.0
    D=1.00
    E=1.00
    * Call for specifications on larger sizes and capacities 866.392.2829
    12112 12109 12106 12102 12098 12094 12090 12087 12084 12069
    12112 12109 12106 12102 12098 12094 12090 12087 12084 12069
    • Part Number
      12069, 12109, 12106, 12102, 12098, 12094, 12090, 12087, 12084, 12112
    • Description
      4 Ft. 6,000 lbs. WLL Low Headroom, Multiple Length Standard Lifting Beam, 20 Ft. 6,000 lbs. WLL Low Headroom, Multiple Length Standard Lifting Beam, 18 Ft. 6,000 lbs. WLL Low Headroom, Multiple Length Standard Lifting Beam, 16 Ft. 6,000 lbs. WLL Low Headroom, Multiple Length Standard Lifting Beam, 14 Ft. 6,000 lbs. WLL Low Headroom, Multiple Length Standard Lifting Beam, 12 Ft. 6,000 lbs. WLL Low Headroom, Multiple Length Standard Lifting Beam, 10 Ft. 6,000 lbs. WLL Low Headroom, Multiple Length Standard Lifting Beam, 8 Ft. 6,000 lbs. WLL Low Headroom, Multiple Length Standard Lifting Beam, 6 Ft. 6,000 lbs. WLL Low Headroom, Multiple Length Standard Lifting Beam, 24 Ft. 6,000 lbs. WLL Low Headroom, Multiple Length Standard Lifting Beam
    • Brand
      M&W, Made in the USA
    Part Number Description Brand Weight Price Quantity
    12069 4 Ft. 6,000 lbs. WLL Low Headroom, Multiple Length Standard Lifting Beam M&W 120 lbs $2225.75 + -
    12084 6 Ft. 6,000 lbs. WLL Low Headroom, Multiple Length Standard Lifting Beam M&W 180 lbs $2363.15 + -
    12087 8 Ft. 6,000 lbs. WLL Low Headroom, Multiple Length Standard Lifting Beam M&W 255 lbs $2555.49 + -
    12090 10 Ft. 6,000 lbs. WLL Low Headroom, Multiple Length Standard Lifting Beam M&W 380 lbs $2665.41 + -
    12094 12 Ft. 6,000 lbs. WLL Low Headroom, Multiple Length Standard Lifting Beam M&W 440 lbs $2940.19 + -
    12098 14 Ft. 6,000 lbs. WLL Low Headroom, Multiple Length Standard Lifting Beam M&W 635 lbs $4671.33 + -
    12102 16 Ft. 6,000 lbs. WLL Low Headroom, Multiple Length Standard Lifting Beam M&W 715 lbs $5014.81 + -
    12106 18 Ft. 6,000 lbs. WLL Low Headroom, Multiple Length Standard Lifting Beam M&W 990 lbs $5550.64 + -
    12109 20 Ft. 6,000 lbs. WLL Low Headroom, Multiple Length Standard Lifting Beam M&W 1295 lbs $6196.39 + -
    12112 24 Ft. 6,000 lbs. WLL Low Headroom, Multiple Length Standard Lifting Beam M&W 1310 lbs $6704.74 + -
    • $2225.75
