Model AC Lifting Clamp

Locking Screw-Type

These clamps may be used for Drifting Loads when used in pairs or multiples.
The Models AC and ACP are light weight, portable clamps that provide quick
easy attachment to structural members for the use of chain falls, hoists and
wire rope pullers. These clamps are of single unit construction with a quick
acting hand screw to secure the clamp.

The Model AC has a fixed Shackle Eye and the Model ACP has a pivoting Shackle Eye.
These clamps are especially useful in the construction and
maintenance for shipbuilding and other industries.

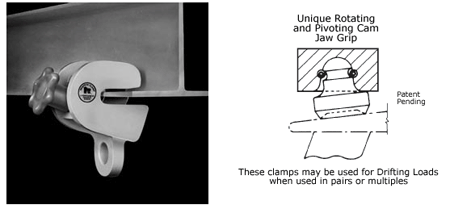

In Use
model AC lifting clamp in use

Rated Capacity Tons (each clamp)	Jaw Opening A	B	C	D	E	F	G	H	J	K	L
2	1/4-5/8"	3 1/4	5 1/4	7	1 1/4	6 3/4	3	1 13/16	3/4	3 9/16	3/4
	3/8-3/4"
	1/2-7/8"
No operator should engage or attempt to engage in the use of any RENFROE® product until the applicable manual has been read and fully understood. Failure to review and utilize recommended applications, operating and maintenance instructions could result in serious injury to the operator and others. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE. OTHER CAPACITIES AVAILABLE UPON REQUEST. CALL FOR PARTS 866.392.2829

Part Number	Description	Brand	Weight	Price	Quantity
AC-02.00-A	2 ton - Jaw 1/4-5/8" Model AC Lifting Clamp	J.C. Renfroe	11.5 lbs	$1908.00	+ -
AC-02.00-B	2 ton - Jaw 3/8-3/4" Model AC Lifting Clamp	J.C. Renfroe	11.5 lbs	$2259.00	+ -
AC-02.00-C	2 ton - Jaw 1/2-7/8" Model AC Lifting Clamp	J.C. Renfroe	11.5 lbs	$2324.00	+ -
