Model B-1 Lifting Clamp

Locking Suspension

The Model B-1 is a portable beam clamp that provides easy
suspension of hoists from beams or girders thereby eliminating
the need for nuts, bolts, shackles and so on.

The Model B-1 is intended for use on the American standard or

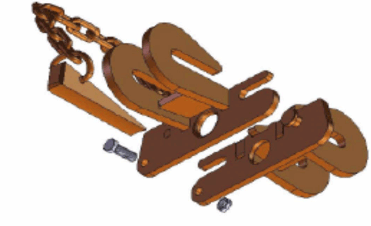

wide flange beams. This model is furnished with a fluted tool steel
locking wedge which holds the clamp in place on a beam.
When the load is attached to the clamp body,
the tool cannot be removed from the beam.

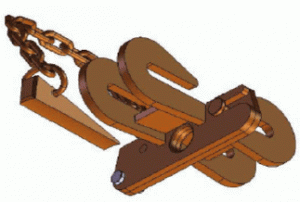

lifting clamp model B1

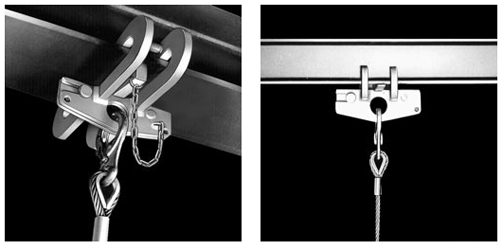

In Use

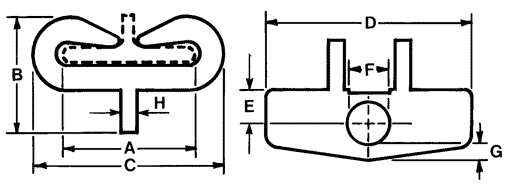

Rated Capacity Tons (each clamp)	Flange Width A	B	C	D	E	F	G	H
1	1 1/2-4"	4 21/32	6 3/4	8 3/4	1 9/16	1 1/2	5/8	3/4
	2-6"	5 1/4	9 1/2	8 3/4	1 9/16	1 1/2	5/8	3/4
	4-12"	6 3/16	18 7/8	8 3/4	1 9/16	1 1/2	5/8	3/4
3	4-6"	6 11/16	10 1/8	11 1/4	2	2 1/4	7/8	3/4
3	4-12"	7 11/16	18 5/8	11 1/4	2	2 1/4	7/8	3/4
5	4-8"	9 7/16	15	14 1/4	3	3 1/8	1	1
5	4-14"	9 13/16	21 3/8	14 1/4	3	3 1/8	1	1
8	6-12"	11 7/16	18 3/8	18 5/8	4	3 1/2x4 5/8	1 7/16	1
	6-17"	15 1/8	26 1/4	18 5/8	4	3 1/2x4 5/8	1 7/16	1
	6-24"	15 5/16	34 3/8	18 5/8	4	3 1/2x4 5/8	1 7/16	1
12	6-12"	11 15/16	19 3/8	18 5/8	4	3 1/2x4 5/8	1 7/16	1 1/4
	6-17"	15 5/16	26 7/8	18 5/8	4	3 1/2x4 5/8	1 7/16	1 1/4
	6-24"	15 13/16	34 7/8	18 5/8	4	3 1/2x4 5/8	1 7/16	1 1/4

No operator should engage or attempt to engage in the use of any RENFROE® product until the applicable manual has been
read and fully understood. Failure to review and utilize recommended applications, operating and
maintenance instructions could result in serious injury to the operator and others.

SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE. OTHER CAPACITIES AVAILABLE UPON REQUEST.
(HOT LIFT) CLAMPS AVAILABLE- CALL FOR PARTS 866.392.2829

Part Number	Description	Brand	Weight	Price	Quantity
B-1-01.00-A	1 ton - Flange 1 1/2-4" Model B-1 Lifting Clamp	J.C. Renfroe	12 lbs	$698.00	+ -
B-1-01.00-B	1 ton - Flange 2-6" Model B-1 Lifting Clamp	J.C. Renfroe	13 lbs	$964.00	+ -
B-1-01.00-C	1 ton - Flange 4-12" Model B-1 Lifting Clamp	J.C. Renfroe	22 lbs	$1292.00	+ -
B-1-03.00-A	3 ton - Flange 4-6" Model B-1 Lifting Clamp	J.C. Renfroe	20 lbs	$994.00	+ -
B-1-03.00-B	3 ton - Flange 4-12" Model B-1 Lifting Clamp	J.C. Renfroe	38 lbs	$2067.00	+ -
B-1-05.00-A	5 ton - Flange 4-8" Model B-1 Lifting Clamp	J.C. Renfroe	45 lbs	$1432.00	+ -
B-1-05.00-B	5 ton - Flange 4-14" Model B-1 Lifting Clamp	J.C. Renfroe	62 lbs	$2251.00	+ -
B-1-08.00-A	8 ton - Flange 6-12" Model B-1 Lifting Clamp	J.C. Renfroe	96 lbs	$2625.00	+ -
B-1-08.00-B	8 ton - Flange 6-17" Model B-1 Lifting Clamp	J.C. Renfroe	151 lbs	$4659.00	+ -
B-1-08.00-C	8 ton - Flange 6-24" Model B-1 Lifting Clamp	J.C. Renfroe	207 lbs	$5597.00	+ -
B-1-12.00-A	12 ton - Flange 6-12" Model B-1 Lifting Clamp	J.C. Renfroe	98 lbs	$2895.00	+ -
B-1-12.00-B	12 ton - Flange 6-17" Model B-1 Lifting Clamp	J.C. Renfroe	153 lbs	$5141.00	+ -
B-1-12.00-C	12 ton - Flange 6-24" Model B-1 Lifting Clamp	J.C. Renfroe	209 lbs	$6208.00	+ -
