Model BC Lifting Clamp

Name: Model BC Lifting Clamp
Price: 705.00 USD
Availability: InStock

Locking Type Suspension

The Model BC is a multi-purpose beam clamp that can lift or
provide suspension of hoists from beams or girders thereby
eliminating the need for nuts, bolts and shackles.
The Model "BC" is intended for use on the American Standard or wide flange beams.

Model BC may be used to suspend hoists, chain falls,
and platforms from beams, or lift beams.

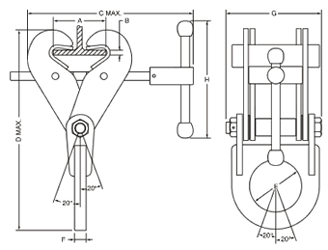

Working Load Limit at 0°-20° Vertical Tons (each clamp)	Flange Width A	Flange Thickness B	C	D	E	F	G	H
1 1/2 ton	3 - 7 1/2"	1/4 - 5/8	11 7/8	11 3/4	3	1/2	5 3/8	5 3/4
3 ton	3 - 7 1/2"	1/4 - 5/8	12	12	3	5/8	5 7/16	6 3/4
5 ton	6 - 10"	1/2 - 7/8	14 7/8	14 7/8	3 1/4	3/4	6 1/2	6 3/4
10 ton	6 - 12"	1/2 - 1 1/4	21 1/4	19 1/8	4	1 1/2	7 1/8	9
15 ton	8 - 18"	7/8 - 2	32	26 1/2	4 1/2	1 3/4	8 3/8	12
25 ton	18 - 40"	2 - 3	61	40 1/2	5	2	15	15
No operator should engage or attempt to engage in the use of any RENFROE® product until the applicable manual has been read and fully understood. Failure to review and utilize recommended applications, operating and maintenance instructions could result in serious injury to the operator and others. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE. OTHER CAPACITIES AVAILABLE UPON REQUEST. (HOT LIFT) CLAMPS AVAILABLE- CALL FOR PARTS 866.392.2829

Part Number	Description	Brand	Weight	Price	Quantity
BC-01.50-A	1 1/2 ton - Flange 3-7 1/2" Model BC Lifting Clamp	J.C. Renfroe	9.5 lbs	$705.00	+ -
BC-03.00-A	3 ton - Flange 3-7 1/2" Model BC Lifting Clamp	J.C. Renfroe	13.5 lbs	$1071.00	+ -
BC-05.00-A	5 ton - Flange 6-10" Model BC Lifting Clamp	J.C. Renfroe	22.5 lbs	$1319.00	+ -
BC-10.00-A	10 ton - Flange 6-12" Model BC Lifting Clamp	J.C. Renfroe	53 lbs	$2224.00	+ -
BC-15.00-A	15 ton - Flange 8-18" Model BC Lifting Clamp	J.C. Renfroe	120 lbs	$3743.00	+ -
BC-25.00-A	25 ton - Flange 18-40" Model BC Lifting Clamp	J.C. Renfroe	450 lbs	$14192.00	+ -
