Model DG Lifting Clamp

Name: Model DG Lifting Clamp
Price: 693.00 USD
Availability: InStock

Vertical Lifting, Locking

The Model DG rail clamp is used for lifting and transporting
crane rails and railroad rails. Lightness of weight allows it to
be hand applied and hand removed.

The Model DG possesses all the features of the Model FR.
All the repair parts are identical to same tonnage of the
FR, except the swivel jaw has been eliminated.

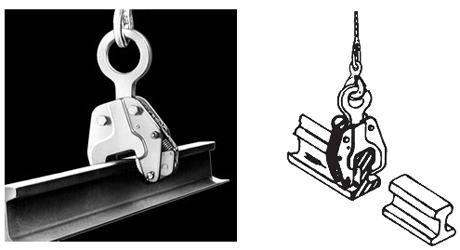

In Use

model DG lifting clamps

model DG lifting clamp in use

Rated Capacity Tons (each clamp)	Model	Capacity Std. Rail A	Capacity Crane Rail A	B	C	D	E	F	G	H	J
1/2	25	12-25 LB.	NONE	1 5/16	6 11/16	11 1/4	2 3/8	5 3/8	2 1/2	1 5/8	1/2
1/2	50	30-50 LB.	NONE	1 3/8	6 11/16	11 1/4	2 3/8	6	2 1/2	1 5/8	1/2
1	132	85-155 LB.	NONE	2 1/2	8 1/8	13 1/2	2 5/8	8 5/8	3 1/4	1 7/8	5/8
2	105	60-155 LB.	104 & 106 LB.	2 5/8	9	16	3 5/8	9 1/8	3 1/4	2 1/2	3/4
2	175	NONE	135, 171, 175 LB.	2 5/8	9 1/2	16	3 5/8	10 3/8	3 1/4	2 1/2	3/4
No operator should engage or attempt to engage in the use of any RENFROE® product until the applicable manual has been read and fully understood. Failure to review and utilize recommended applications, operating and maintenance instructions could result in serious injury to the operator and others. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE. OTHER CAPACITIES AVAILABLE UPON REQUEST. (HOT LIFT) CLAMPS AVAILABLE- CALL FOR PARTS 866.392.2829

Part Number	Description	Brand	Weight	Price	Quantity
DG-00.50-A	1/2 ton - # 25 Model DG Lifting Clamp	J.C. Renfroe	10 lbs	$693.00	+ -
DG-00.50-B	1/2 ton - # 50 Model DG Lifting Clamp	J.C. Renfroe	11 lbs	$901.00	+ -
DG-01.00-A	1 ton - # 132 Model DG Lifting Clamp	J.C. Renfroe	16 lbs	$940.00	+ -
DG-02.00-A	2 ton - # 105 Model DG Lifting Clamp	J.C. Renfroe	26 lbs	$1063.00	+ -
DG-02.00-B	2 ton - # 175 Model DG Lifting Clamp	J.C. Renfroe	26 lbs	$1480.00	+ -

Model DG Lifting Clamp
