Model HRS Lifting Clamp

Name: Model HRS Lifting Clamp
Price: 1118.00 USD
Availability: InStock

Horizontal Lifting, Non-Locking

The Model HRS is a horizontal lifting clamp that has
a spring loaded open and closed position. The spring
closed position allows 1 man operation of multiple clamps.
The clamps stay in position where they're attached until
spring opened is actuated.

Clamps must be used in multiples or sets of multiples.

In Use

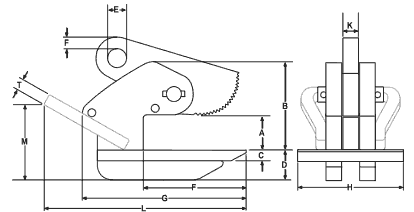

Rated Capacity Tons (per clamp)	Jaw Opening A	B	C	D	E	F	G	H	J	K	L	M	T
1/4	1/16-3/4	2 9/16	3/8	+	1/2	3	4 3/4	3	1/4	1/2	+	+	+
1/2	1/16-1	3 5/16	1/2	+	1/2	3 3/4	5 15/16	3 1/4	5/16	1/2	+	+	+
1	1/16-1 1/4	3 11/16	5/8	+	5/8	4	6 3/16	3 1/2	7/16	5/8	+	+	+
2	1/16-1 1/2	4 1/2	3/4	+	1 1/16	5 3/8	8 5/8	5	9/16	3/4	10 15/16	3 1/4	5/8
3	1/16-1 3/4	5 3/4	1	+	1 1/4	6 3/4	10 3/4	7	3/4	1	13	4	5/8
4	1/16-2	5 3/4	3/4	2	1 1/4	6 3/4	10 3/4	7	3/4	1	13 5/16	5	3/4
No operator should engage or attempt to engage in the use of any RENFROE® product until the applicable manual has been read and fully understood. Failure to review and utilize recommended applications, operating and maintenance instructions could result in serious injury to the operator and others. + No backpad on 1/4, 1/2, 1, 2 and 3 ton models. Also no handles on 1/2 and 1 ton models WARNING Always use in pairs or multiples Refer to Operators Manual. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE. OTHER CAPACITIES AVAILABLE UPON REQUEST. (HOT LIFT) CLAMPS AVAILABLE- CALL FOR PARTS 866.392.2829

Part Number	Description	Brand	Weight	Price	Quantity
HRS-00.50-A	1/2 ton - Jaw 1/16-1" Model HRS Lifting Clamp	J.C. Renfroe	4 lbs	$1118.00	+ -
HRS-00.25-A	1/4 ton - Jaw 1/16-3/4" Model HRS Lifting Clamp	J.C. Renfroe	5 lbs	$1092.00	+ -
HRS-01.00-A	1 ton - Jaw 1/16-1 1/4" Model HRS Lifting Clamp	J.C. Renfroe	7 lbs	$1267.00	+ -
HRS-02.00-A	2 ton - Jaw 1/16-1 1/2" Model HRS Lifting Clamp	J.C. Renfroe	20 lbs	$1504.00	+ -
HRS-03.00-A	3 ton - Jaw 1/16-1 3/4" Model HRS Lifting Clamp	J.C. Renfroe	34 lbs	$1729.00	+ -
HRS-04.00-A	4 ton - Jaw 1/16-2" Model HRS Lifting Clamp	J.C. Renfroe	44 lbs	$2847.00	+ -
