Model JA Lifting Clamp

Name: Model JA Lifting Clamp
Price: 854.00 USD
Availability: InStock

Vertical Lifting, Locking

The Model JA is a vertical lifting clamp capable of
turning a single plate or member from horizontal
to vertical to horizontal through a 180 degree arc.
Incorporates a push button auxiliary lock.

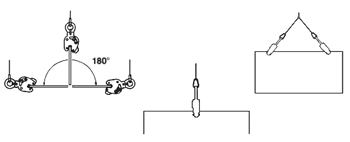

In Use
model JA lifting clamp in use

Rated Capacity Tons (each clamp)	Plate Thickness A	B	C	MAX. D	E	MAX. F	G	H	J
1/2	0-5/8	2 3/4	6 1/2	12	2 3/8	5 5/8	3 1/4	2 1/4	1/2
	1/2-1	2 3/4	6 1/2	12	2 3/8	6	3 1/4	2 1/4	1/2
	3/4-1 1/4	2 3/4	6 1/2	12	2 3/8	6 1/4	3 1/4	2 1/4	1/2
	1 1/4-1 3/4	2 3/4	6 1/2	12	2 3/8	6 3/4	3 1/4	2 1/4	1/2
1	0-3/4	3 3/8	7 3/4	13 3/4	2 5/8	7	3 1/2	2 5/8	5/8
	1/2-1	3 3/8	7 3/4	13 3/4	2 5/8	7 1/4	3 1/2	2 5/8	5/8
	3/4-1 1/4	3 3/8	7 3/4	13 3/4	2 5/8	8	3 1/2	2 5/8	5/8
	1-1 1/2	3 3/8	7 3/4	13 3/4	2 5/8	8 1/4	3 1/2	2 5/8	5/8
	1 1/2-2	3 3/8	7 3/4	13 3/4	2 5/8	8 3/4	3 1/2	2 5/8	5/8
2	0-1	3 5/8	9 1/2	17 3/8	3 1/2	8 3/4	4 1/2	3	3/4
	3/4-1 1/2	3 5/8	9 1/2	17 3/8	3 1/2	9 1/4	4 1/2	3	3/4
	1 1/4-2	3 5 /8	9 1/2	17 3/8	3 1/2	9 3/4	4 1/2	3	3/4
	2-2 3/4	3 5/8	9 1/2	17 3/8	3 1/2	10 1/2	4 1/2	3	3/4
4	3/16-1 1/4	4 3/8	11 1/2	20 1/8	3 1/2	9 1/4	4 1/2	3 1/4	1 1/2
	1-2	4 3/8	11 1/2	20 1/8	3 1/2	10	4 1/2	3 1/4	1 1/2
	2-3	4 3/8	11 1/2	20 1/8	3 1/2	11	4 1/2	3 1/4	1 1/2
	3-4	4 3/8	11 1/2	20 1/8	3 1/2	12	4 1/2	3 1/4	1 1/2
6	1/4-1 3/8	4 7/8	12 3/8	20 7/8	3 1/2	10 3/4	4 3/4	3 3/4	1 1/2
	1-2 1/8	4 7/8	12 3/8	20 7/8	31 /2	11 1/2	4 3/4	3 3/4	1 1/2
	2-3 1/8	4 7/8	12 3/8	20 7/8	3 1/2	12 1/2	4 3/4	3 3/4	1 1/2
	3-4 1/8	4 7/8	12 3/8	20 7/8	3 1/2	13 1/2	4 3/4	3 3/4	11/2
8	3/8-1 1/2	5 3/8	12 3/4	22 5/8	3 3/4	12 3/8	5 1/4	4 1/4	2
	1-2 1/8	5 3/8	12 3/4	22 5/8	3 3/4	13	5 1/4	4 1/4	2
	2-3 1/8	5 3/8	12 3/4	22 5/8	3 3/4	14 5/8	5 1/4	4 1/4	2
	3-4 1/8	5 3/8	12 3/4	22 5/8	3 3/4	15 5/8	5 1/4	4 1/4	2
12	1/2-2 1/2	7 1/4	17 3/8	28 1/8	3 7/8	15 15/16	7 1/16	5 3/8	2
	2-4	7 1/4	17 3/8	28 1/8	3 7/8	17 7/16	7 1/16	5 3/8	2
	4-6	7 1/4	17 3/8	28 1/8	3 7/8	19 7/16	7 1/16	5 3/8	2
	5 1/2-7 1/2
16	1/2-2 1/2	8	19 13/16	32 5/16	4 1/2	19 13/16	8 11/16	6 1/4	2 1/4
	2-3
	4-6
	5 1/2-7 1/2
20	1/2-3	8 5/8	21 13/16	35 7/8	5	21	11 1/2	6 7/8	2 3/4
	3-5
	5-7
	7-9
25	1/2-2 1/2	8 5/8	23 5/8	35 7/8	5	19 1/16	9 5/8	6 3/4	3
	3-5	8 5/8	23 5/8	35 7/8	5	21 9/16	9 5/8	6 3/4	3
	4-6	8 5/8	23 5/8	35 7/8	5	22 9/16	9 5/8	6 3/4	3
30	1/2-3	9 9/16	24 1/4	39 7/8	5	22 13/16	14 9/16	7 5/8	3
50	3-5	10 7/8	30 7/8	46 7/16	5	29 3/16	11 1/8	9 1/4	3 1/2
No operator should engage or attempt to engage in the use of any RENFROE® product until the applicable manual has been read and fully understood. Failure to review and utilize recommended applications, operating and maintenance instructions could result in serious injury to the operator and others. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE. OTHER CAPACITIES AVAILABLE UPON REQUEST. CALL FOR PARTS 866.392.2829

Part Number
JA-00.50-A, JA-20.00-D, JA-02.00-A, JA-02.00-C, JA-02.00-D, JA-02.00-B, JA-04.00-B, JA-04.00-C, JA-04.00-A, JA-04.00-D, JA-06.00-A, JA-06.00-B, JA-06.00-C, JA-06.00-D, JA-08.00-B, JA-08.00-C, JA-08.00-A, JA-20.00-C, JA-20.00-B, JA-20.00-A, JA-00.50-D, JA-00.50-B, JA-00.50-C, JA-12.00-A, JA-12.00-B, JA-12.00-C, JA-12.00-D, JA-16.00-A, JA-16.00-B, JA-16.00-C, JA-16.00-D, JA-01.00-A, JA-01.00-E, JA-01.00-B, JA-01.00-D, JA-01.00-C, JA-08.00-D
Description
1/2 ton - Plate Thickness 0-5/8" Model JA Lifting Clamp, 6 ton - Plate Thickness 3-4 1/8" Model JA Lifting Clamp, 8 ton - Plate Thickness 3/8-1 1/2" Model JA Lifting Clamp, 8 ton - Plate Thickness 1-2 1/8" Model JA Lifting Clamp, 8 ton - Plate Thickness 2-3 1/8" Model JA Lifting Clamp, 8 ton - Plate Thickness 3-4 1/8" Model JA Lifting Clamp, 12 ton - Plate Thickness 1/2 -2 1/2" Model JA Lifting Clamp, 12 ton - Plate Thickness 2-4" Model JA Lifting Clamp, 12 ton - Plate Thickness 4-6" Model JA Lifting Clamp, 12 ton - Plate Thickness 5 1/2 - 7 1/2" Model JA Lifting Clamp, 16 ton - Plate Thickness 1/2 -2 1/2" Model JA Lifting Clamp, 16 ton - Plate Thickness 2-3" Model JA Lifting Clamp, 16 ton - Plate Thickness 4-6" Model JA Lifting Clamp, 16 ton - Plate Thickness 5 1/2-7 1/2" Model JA Lifting Clamp, 20 ton - Plate Thickness 1/2-3" Model JA Lifting Clamp, 20 ton - Plate Thickness 3-5" Model JA Lifting Clamp, 20 ton - Plate Thickness 5-7" Model JA Lifting Clamp, 6 ton - Plate Thickness 2-3 1/8" Model JA Lifting Clamp, 6 ton - Plate Thickness 1-2 1/8" Model JA Lifting Clamp, 6 ton - Plate Thickness 1/4-1 3/8" Model JA Lifting Clamp, 1/2 ton - Plate Thickness 1/2-1" Model JA Lifting Clamp, 1/2 ton - Plate Thickness 3/4-1 1/4" Model JA Lifting Clamp, 1/2 ton - Plate Thickness 1 1/4-1 3/4" Model JA Lifting Clamp, 1 ton - Plate Thickness 0-3/4" Model JA Lifting Clamp, 1 ton - Plate Thickness 1/2-1" Model JA Lifting Clamp, 1 ton - Plate Thickness 3/4-1 1/4" Model JA Lifting Clamp, 1 ton - Plate Thickness 1 1/4 -2" Model JA Lifting Clamp, 1 ton - Plate Thickness 2-2 3/4" Model JA Lifting Clamp, 2 ton - Plate Thickness 0-1" Model JA Lifting Clamp, 2 ton - Plate Thickness 3/4-1 1/2" Model JA Lifting Clamp, 2 ton - Plate Thickness 1 1/4-2" Model JA Lifting Clamp, 2 ton - Plate Thickness 2-2 3/4" Model JA Lifting Clamp, 4 ton - Plate Thickness 3/16-1 1/4" Model JA Lifting Clamp, 4 ton - Plate Thickness 1-2" Model JA Lifting Clamp, 4 ton - Plate Thickness 2-3" Model JA Lifting Clamp, 4 ton - Plate Thickness 3-4" Model JA Lifting Clamp, 20 ton - Plate Thickness 7-9" Model JA Lifting Clamp
Brand
J.C. Renfroe, Made in the USA

Part Number	Description	Brand	Weight	Price	Quantity
JA-00.50-A	1/2 ton - Plate Thickness 0-5/8" Model JA Lifting Clamp	J.C. Renfroe	10 lbs	$854.00	+ -
JA-00.50-B	1/2 ton - Plate Thickness 1/2-1" Model JA Lifting Clamp	J.C. Renfroe	10 lbs	$1048.00	+ -
JA-00.50-C	1/2 ton - Plate Thickness 3/4-1 1/4" Model JA Lifting Clamp	J.C. Renfroe	10 lbs	$1083.00	+ -
JA-00.50-D	1/2 ton - Plate Thickness 1 1/4-1 3/4" Model JA Lifting Clamp	J.C. Renfroe	10 lbs	$1132.00	+ -
JA-01.00-A	1 ton - Plate Thickness 0-3/4" Model JA Lifting Clamp	J.C. Renfroe	15 lbs	$1104.00	+ -
JA-01.00-B	1 ton - Plate Thickness 1/2-1" Model JA Lifting Clamp	J.C. Renfroe	15 lbs	$1530.00	+ -
JA-01.00-C	1 ton - Plate Thickness 3/4-1 1/4" Model JA Lifting Clamp	J.C. Renfroe	15 lbs	$1577.00	+ -
JA-01.00-D	1 ton - Plate Thickness 1 1/4 -2" Model JA Lifting Clamp	J.C. Renfroe	15 lbs	$1620.00	+ -
JA-01.00-E	1 ton - Plate Thickness 2-2 3/4" Model JA Lifting Clamp	J.C. Renfroe	15 lbs	$1659.00	+ -
JA-02.00-A	2 ton - Plate Thickness 0-1" Model JA Lifting Clamp	J.C. Renfroe	36 lbs	$1418.00	+ -
JA-02.00-B	2 ton - Plate Thickness 3/4-1 1/2" Model JA Lifting Clamp	J.C. Renfroe	36 lbs	$1934.00	+ -
JA-02.00-C	2 ton - Plate Thickness 1 1/4-2" Model JA Lifting Clamp	J.C. Renfroe	36 lbs	$2030.00	+ -
JA-02.00-D	2 ton - Plate Thickness 2-2 3/4" Model JA Lifting Clamp	J.C. Renfroe	36 lbs	$2089.00	+ -
JA-04.00-A	4 ton - Plate Thickness 3/16-1 1/4" Model JA Lifting Clamp	J.C. Renfroe	42 lbs	$2229.00	+ -
JA-04.00-B	4 ton - Plate Thickness 1-2" Model JA Lifting Clamp	J.C. Renfroe	42 lbs	$3166.00	+ -
JA-04.00-C	4 ton - Plate Thickness 2-3" Model JA Lifting Clamp	J.C. Renfroe	42 lbs	$3269.00	+ -
JA-04.00-D	4 ton - Plate Thickness 3-4" Model JA Lifting Clamp	J.C. Renfroe	42 lbs	$3352.00	+ -
JA-06.00-A	6 ton - Plate Thickness 1/4-1 3/8" Model JA Lifting Clamp	J.C. Renfroe	64 lbs	$2596.00	+ -
JA-06.00-B	6 ton - Plate Thickness 1-2 1/8" Model JA Lifting Clamp	J.C. Renfroe	64 lbs	$3636.00	+ -
JA-06.00-C	6 ton - Plate Thickness 2-3 1/8" Model JA Lifting Clamp	J.C. Renfroe	64 lbs	$3921.00	+ -
JA-06.00-D	6 ton - Plate Thickness 3-4 1/8" Model JA Lifting Clamp	J.C. Renfroe	64 lbs	$4024.00	+ -
JA-08.00-A	8 ton - Plate Thickness 3/8-1 1/2" Model JA Lifting Clamp	J.C. Renfroe	83 lbs	$3889.00	+ -
JA-08.00-B	8 ton - Plate Thickness 1-2 1/8" Model JA Lifting Clamp	J.C. Renfroe	83 lbs	$5495.00	+ -
JA-08.00-C	8 ton - Plate Thickness 2-3 1/8" Model JA Lifting Clamp	J.C. Renfroe	83 lbs	$5759.00	+ -
JA-08.00-D	8 ton - Plate Thickness 3-4 1/8" Model JA Lifting Clamp	J.C. Renfroe	83 lbs	$6010.00	+ -
JA-12.00-A	12 ton - Plate Thickness 1/2 -2 1/2" Model JA Lifting Clamp	J.C. Renfroe	203 lbs	$4813.00	+ -
JA-12.00-B	12 ton - Plate Thickness 2-4" Model JA Lifting Clamp	J.C. Renfroe	212 lbs	$6715.00	+ -
JA-12.00-C	12 ton - Plate Thickness 4-6" Model JA Lifting Clamp	J.C. Renfroe	222 lbs	$6980.00	+ -
JA-12.00-D	12 ton - Plate Thickness 5 1/2 - 7 1/2" Model JA Lifting Clamp	J.C. Renfroe	222 lbs	$7253.00	+ -
JA-16.00-A	16 ton - Plate Thickness 1/2 -2 1/2" Model JA Lifting Clamp	J.C. Renfroe	350 lbs	$6469.00	+ -
JA-16.00-B	16 ton - Plate Thickness 2-3" Model JA Lifting Clamp	J.C. Renfroe	350 lbs	$9150.00	+ -
JA-16.00-C	16 ton - Plate Thickness 4-6" Model JA Lifting Clamp	J.C. Renfroe	350 lbs	$9566.00	+ -
JA-16.00-D	16 ton - Plate Thickness 5 1/2-7 1/2" Model JA Lifting Clamp	J.C. Renfroe	350 lbs	$9978.00	+ -
JA-20.00-A	20 ton - Plate Thickness 1/2-3" Model JA Lifting Clamp	J.C. Renfroe	456 lbs	$7429.00	+ -
JA-20.00-B	20 ton - Plate Thickness 3-5" Model JA Lifting Clamp	J.C. Renfroe	456 lbs	$10367.00	+ -
JA-20.00-C	20 ton - Plate Thickness 5-7" Model JA Lifting Clamp	J.C. Renfroe	456 lbs	$10809.00	+ -
JA-20.00-D	20 ton - Plate Thickness 7-9" Model JA Lifting Clamp	J.C. Renfroe	456 lbs	$11265.00	+ -
