Model JP Lifting Clamp

Vertical Lifting, Locking

The Model JP is a vertical lifting clamp capable
of turning a single plate or member from horizontal
to vertical and back to horizontal through the same
90 degree arc. Permits side loading of lifting shackle
up to 90 degrees by derating of clamp's rated capacity.
Refer to specifications below for derated capacities.

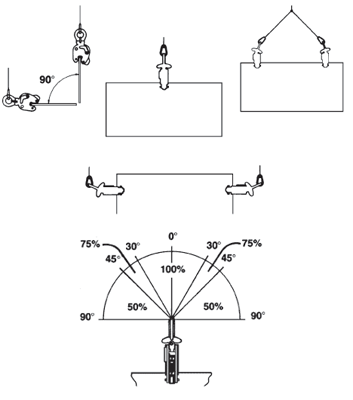

Model JP incorporates a pivoting shackle that permits
side loading of the lifting shackle at 100 percent of rated
capacity from vertical to 30 degrees, 75 percent of rated
capacity between 30 and 45 degrees and 50 percent of
rated capacity between 45 and 90 degrees.
