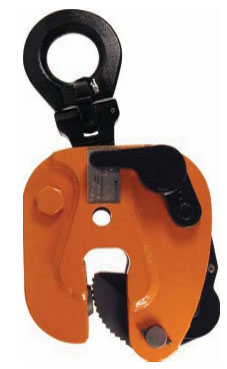

Model LP Lifting Clamp

The Model LP is an ergonomic vertical lifting clamp
capable of turning a single plate or member from
horizontal to vertical and back to horizontal through the same 90
degree arc. Permits side loading of lifting shackle to 90

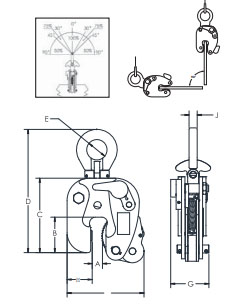

degrees by de-rating of clamp’s capacity. Refer to FIGURE
1 for de-rated capaci- ties. The “Lock Open – Lock Closed”
feature facilitates attaching and removing the clamp from
the plate.
Model LP incorporates a pivoting shackle that permits
side loading of the lifting shackle at 100 percent of rated
capacity from vertical to 30 degrees, 75 percent of rated
capacity between 30 and 45 degrees, and 50 percent of
rated capacity between 45 and 90 degrees
