Model LA Lifting Clamp

Name: Model LA Lifting Clamp
Price: 805.00 USD
Availability: InStock

Locking Type

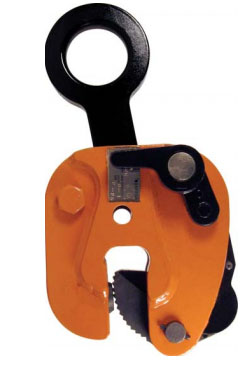

Model LA is an ergonomic vertical lifting clamp capable of
turning a single plate or member from horizontal to vertical
to horizontal through a 180 degree arc. It incorporates
a push button auxiliary lock. The “Lock Open – Lock
Closed” feature facilitates attaching and removing the
clamp from the plate.

model LA Specifications

SPECIFICATIONS (in inches)

Rated Capacity Tons	Plate Thickness A	B	C	MAX. D	E	MAX. F	G	H	J
1/2	0-5/8"	2	4 7/8	8	1 1/8	4 1/4	2 7/16	1 3/8	3/8
1	0-3/4"	2	4 7/8	8	1 1/8	4 3/8	2 7/16	1 3/8	1/2
2	0-1"	3 5/16	6 7/8	12 1/2	2 3/8	7 1/16	3 5/8	2 3/8	3/4
3	0-1"	3 7/16	10	17	3 3/8	8 1/2	3 13/16	2 3/4	3/4
No operator should engage or attempt to engage in the use of any RENFROE® product until the applicable manual has been read and fully understood. Failure to review and utilize recommended applications, operating and maintenance instructions could result in serious injury to the operator and others. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE. OTHER CAPACITIES AVAILABLE UPON REQUEST. CALL FOR PARTS 866.392.2829

Part Number	Description	Brand	Weight	Price	Quantity
LA-00.50-A	1/2 ton - Plate Thickness 0-5/8" Model LA Lifting Clamp	JC Renfroe	4 lbs	$805.00	+ -
LA-01.00-A	1 ton - Plate Thickness 0-3/4" Model LA Lifting Clamp	JC Renfroe	5 lbs	$805.00	+ -
LA-02.00-A	2 ton - Plate Thickness 0-1" Model LA Lifting Clamp	JC Renfroe	16 lbs	$1074.00	+ -
LA-03.00-A	3 ton - Plate Thickness 0-1" Model LA Lifting Clamp	JC Renfroe	32 lbs	$1291.00	+ -
