Model NMBL Lifting Clamp

Name: Model NMBL Lifting Clamp
Price: 2329.00 USD
Availability: InStock

Locking Type

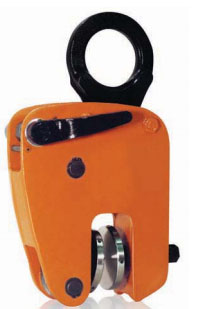

The NMBL model is used to turn plates from the
horizontal through a 180 degree arc. It is manufactured
with smooth gripping surfaces to prevent marring when
gripping stainless steel, copper, aluminum and other
polished metal plates. The NMBL incorporates a lock
open – lock closed feature to facilitate attaching and
removing the clamp from the plate.

Rated Capacity Tons (each clamp)	Plate Thickness A	B	C	D	E	MAX. F	G	H	J
1/2	0-5/8	3 5/8	8	12 5/16	2 3/8	7 5/8	4 1/4	3 7/16	1/2
1	0-3/4	3 5/8	8	11 7/8	2 3/8	7 9/16	4 1/4	3 7/16	1/2
2	0-2	4 7/8	10 7/8	17 9/16	3	12 1/32	5 1/2	5 7/16	3/4
4 (CALL)	1/4-1 1/2	7 11/64	16 3/16	23 25/32	3	6 1/4	8 1/2	8 9/64	1 1/4
No operator should engage or attempt to engage in the use of any RENFROE® product until the applicable manual has been read and fully understood. Failure to review and utilize recommended applications, operating and maintenance instructions could result in serious injury to the operator and others. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE. OTHER CAPACITIES AVAILABLE UPON REQUEST. (HOT LIFT) CLAMPS AVAILABLE- CALL FOR PARTS 866.392.2829

Part Number	Description	Brand	Weight	Price	Quantity
NMBL-00.50-A	1/2 ton - Jaw Opening 0-5/8" Model NMBL Lifting Clamp	J.C. Renfroe	16 lbs	$2329.00	+ -
NMBL-01.00-A	1 ton - Jaw Opening 0-3/4" Model NMBL Lifting Clamp	J.C. Renfroe	17 lbs	$2562.00	+ -
NMBL-02.00-A	2 ton - Jaw Opening 0-2" Model NMBL Lifting Clamp	J.C. Renfroe	31 lbs	$4658.00	+ -
