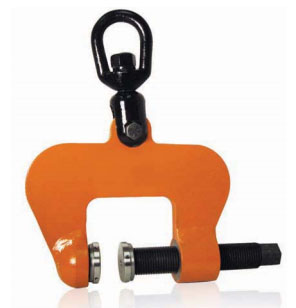

Model NMRSC Lifting Clamp

Name: Model NMRSC Lifting Clamp
Price: 2800.00 USD
Availability: InStock

Locking, Screw Type

The Model NMRSC is a lightweight screw clamp for
bench work on steel plates of large thickness, and
weighing less than 1000 lbs. Supplied with smooth
gripping surfaces to prevent marring when gripping
stainless steel, copper, aluminum and other polished
metal plates

Rated Capacity Tons (each clamp)	Plate Thickness A	B	C	D	E	F	G	H	J	K
1/2	0-3	4 5/16	8 1/16	13 3/8	1 3/4	1 9/16	2 3/8	3 3/8	10	14
1/2	1 3/8-4 1/4	4 5/16	8 1/16	13 3/8	1 3/4	1 9/16	2 3/8	3 3/8	11 3/16	15 15/16
No operator should engage or attempt to engage in the use of any RENFROE® product until the applicable manual has been read and fully understood. Failure to review and utilize recommended applications, operating and maintenance instructions could result in serious injury to the operator and others. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE. OTHER CAPACITIES AVAILABLE UPON REQUEST. (HOT LIFT) CLAMPS AVAILABLE- CALL FOR PARTS 866.392.2829

Part Number	Description	Brand	Weight	Price	Quantity
NMRSC-00.50-A	1/2 ton - Jaw Opening 0-3" Model NMRSC Lifting Clamp	J.C. Renfroe	14 lbs	$2800.00	+ -
NMRSC-00.50-B	1/2 ton - Jaw Opening 1 3/8 - 4 1/4" Model NMRSC Lifting Clamp	J.C. Renfroe	15 lbs	$2915.00	+ -
