Model PC 'Tea Cup' Pipe Carrier

PRODUCT FEATURES:

An efficient way to handle concrete water and sewer pipes.
The Caldwell 'Tea Cup' Carrier will save you time and money.
Three sizes available, to handle from 3/4" to 1-1/2" cable, and lift up to 18 tons.
Optional 'Spoon' handle allows PC-3/4 'Tea Cup' to be guided into small diameter pipes.
Designed and manufactured to ASME B30.20 and B30.9.

model PC tea cup pipe carrier

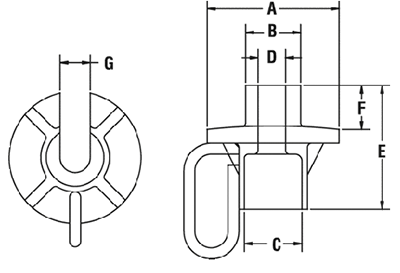

Part Number	Reference Number	Rated Capacity Tons	Dimensions in Inches							Weight (lbs.)
Part Number	Reference Number	Rated Capacity Tons	A	B	C	D	E	F	G	Weight (lbs.)
PC-3/4*	65-11	6.6	5 9/16	2	2 1/8	1 1/8	4 3/4	1 3/4	1 1/8	9
* Can use 'Spoon' handle with this model
PC-1	65-12	13	6	2 1/2	2 5/8	1 3/8	5 3/4	1 3/4	1 3/8	12
PC-1-1/2	65-13	18	8	3	3 1/4	1 5/8	7 5/8	2 3/4	1 5/8	22

Part Number	Description	Brand	Weight	Price	Quantity
PC-3/4	65-11 Model PC - 'Tea Cup' Pipe Carrier (6.6 Ton Rate Cap.)	The Caldwell Group	9 lbs	$242.00	+ -
PC-1	65-12 Model PC - 'Tea Cup' Pipe Carrier (13 Ton Rated Cap.)	The Caldwell Group	12 lbs	$278.00	+ -
PC-1-1/2	65-13 Model PC - 'Tea Cup' Pipe Carrier (18 Ton Rated Cap.)	The Caldwell Group	22 lbs	$319.00	+ -
