Model SD Lifting Clamp

Name: Model SD Lifting Clamp
Price: 2911.00 USD
Availability: InStock

Vertical Lifting, Locking

The SD is a vertical lifting clamp that incorporates
two Model S clamps into one and is used for heavy
duty work where it is desirable to spread the gripping
surfaces with two points of contact. It incorporates a
'Lock Open,' 'Lock Closed' feature which facilitates
attaching and removing the clamp from the plate.

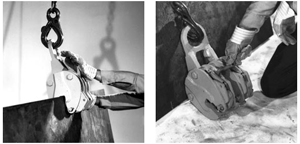

In Use
model SD lifting clamp in use

Rated Capacity Tons (each clamp)	Plate Thickness A	B	C	D	E	F	G	H	I	J
6	0-1"	3 1/4	9 1/2	15 1/2	3	7 1/2	6 1/2	2 1/8	4 1/8	3/4
6	3/4-1 1/2"	3 1/4	9 1/2	15 1/2	3	8	6 1/2	2 1/8	4 1/8	3/4
8	0-1 1/4"	4 1/2	11 1/2	17	3	8 3/4	6 3/4	3	4 1/4	1
8	1-2"	4 1/2	11 1/2	17	3	9 1/2	6 3/4	3	4 1/4	1
No operator should engage or attempt to engage in the use of any RENFROE® product until the applicable manual has been read and fully understood. Failure to review and utilize recommended applications, operating and maintenance instructions could result in serious injury to the operator and others. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE. OTHER CAPACITIES AVAILABLE UPON REQUEST. CALL FOR PARTS 866.392.2829

Part Number	Description	Brand	Weight	Price	Quantity
SD-06.00-A	6 ton - Plate Thickness 0-1" Model SD Lifting Clamp	J.C. Renfroe	60 lbs	$2911.00	+ -
SD-06.00-B	6 ton - Plate Thickness 3/4-1 1/2" Model SD Lifting Clamp	J.C. Renfroe	62 lbs	$4165.00	+ -
SD-08.00-A	8 ton - Plate Thickness 0-1 1/4" Model SD Lifting Clamp	J.C. Renfroe	77 lbs	$3691.00	+ -
SD-08.00-B	8 ton - Plate Thickness 1-2" Model SD Lifting Clamp	J.C. Renfroe	81 lbs	$5241.00	+ -

Model SD Lifting Clamp
