    • Lifting Clamps - Renfroe®
    • Vertical Clamps
    • Model TL (IN STOCK)
    • Model TL Lifting Clamp
    Model TL Lifting Clamp
    • Model TL Lifting Clamp Model TL Lifting Clamp
    Model TL Lifting Clamp

    Model TL Lifting Clamp

    • $735.00

    Vertical Lifting, Locking

    The Model TL is a vertical lifting clamp incorporating
    a 'Lock Open' and a 'Lock Closed' feature and an
    auxiliary lock. The clamp is capable of turning a
    steel plate from horizontal to vertical to horizontal
    through a 180 degree arc. The 'Lock Open', 'Lock Closed'
    feature facilitates attaching and removing the clamp from the plate.

    The Model TL is identical to the Model TLA except that is does
    not contain the auxiliary lock. The Model TL is capable of turning
    a plate from horizontal to vertical and back through the same 90 degree arc.

    *Call 866-392-2829 for availability and pricing

    • Weight
      9.0000 lbs
    • SKU
      TL-00.50-A

         In Use
    model TL lifting clamp in use

    Lifting clamps model TL specifications

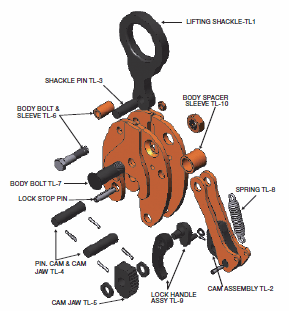

    exploded view
    Model TL Lifting Clamp

    Part
    Number
    Rated
    Capacity
    Tons
    (each clamp)
    Plate
    Thickness
    A
    B
    C
    MAX.
    D
    E
    MAX.
    F
    G
    H
    J
    TL-00.50-A
    1/2
    0-5/8
    2 3/8
    6 1/4
    11 1/8
    2 3/8
    4 3/4
    2 3/4
    1 13/16
    1/2
    TL-00.50-B*
    1/2-1
    2 3/8
    6 1/4
    11 1/8
    2 3/8
    5 1/8
    2 3/4
    1 13/16
    1/2
    TL-00.50-C*
    3/4-11/4
    2 3/8
    6 1/4
    11 1/8
    2 3/8
    5 3/8
    2 3/4
    1 13/16
    1/2
    TL-00.50-D*
    1 1/4-1 3/4
    2 3/8
    6 1/4
    11 1/8
    2 3/8
    5 7/8
    2 3/4
    1 13/16
    1/2
    TL-01.00-A
    1
    0-3/4
    3
    7 1/2
    13 1/8
    2 5/8
    6
    2 13/16
    2
    5/8
    TL-01.00-B*
    1/2-1
    3
    7 1/2
    13 1/8
    2 5/8
    6 1/4
    2 13/16
    2
    5/8
    TL-01.00-C*
    3/4-1 1/4
    3
    7 1/2
    13 1/8
    2 5/8
    6 1/2
    2 13/16
    2
    5/8
    TL-01.00-D*
    1-1 1/2
    3
    7 1/2
    13 1/8
    2 5/8
    6 3/4
    2 13/16
    2
    5/8
    TL-01.00-E*
    1 1/2-2
    3
    7 1/2
    13 1/8
    2 5/8
    7 1/4
    2 13/16
    2
    5/8
    TL-02.00-A*
    2
    0-1
    3 1/2
    9 3/8
    16 1/4
    3 5/8
    8 7/8
    3 3/4
    2 7/8
    3/4
    TL-02.00-B*
    3/4-1 1/2
    3 1/2
    9 3/8
    16 1/4
    3 5/8
    9 3/8
    3 3/4
    2 7/8
    3/4
    TL-02.00-C*
    1 1/4-2
    3 1/2
    9 3/8
    16 1/4
    3 5/8
    9 7/8
    3 3/4
    2 7/8
    3/4
    TL-02.00-D*
    2-2 3/4
    3 1/2
    9 3/8
    16 1/4
    3 5/8
    10 5/8
    3 3/4
    2 7/8
    3/4
    TL-04.00-A*
    4
    3/16-1 1/4
    4
    9 7/8
    17 5/8
    3 5/8
    9
    3 13/16
    3
    3/4
    TL-04.00-B*
    1-2
    4
    9 7/8
    17 5/8
    3 5/8
    9 3/4
    3 13/16
    3
    3/4
    TL-04.00-C*
    2-3
    4
    9 7/8
    17 5/8
    3 5/8
    10 3/4
    3 13/16
    3
    3/4
    TL-04.00-D*
    3-4
    4
    9 7/8
    17 5/8
    3 5/8
    11 3/4
    3 13/16
    3
    3/4
    TL-06.00-A*
    6
    1/4-1 3/8
    4 5/8
    11 1/8
    20 1/8
    3 1/2
    10 1/4
    3 7/8
    3 3/8
    3/4
    TL-06.00-B*
    1-2 1/8
    4 5/8
    11 1/8
    20 1/8
    3 1/2
    11
    3 7/8
    3 3/8
    3/4
    TL-06.00-C*
    2-3 1/8
    4 5/8
    11 1/8
    20 1/8
    3 1/2
    12
    3 7/8
    3 3/8
    3/4
    TL-06.00-D*
    3-4 1/8
    4 5/8
    11 1/8
    20 1/8
    3 1/2
    13
    3 7/8
    3 3/8
    3/4
    TL-08.00-A*
    8
    3/8-1 1/2
    4 13/16
    12 5/16
    21 5/16
    3 3/4
    11 1/2
    4 3/4
    3 7/8
    1
    TL-08.00-B*
    1-2 1/8
    4 13/16
    12 5/16
    21 5/16
    3 3/4
    12 1/8
    4 3/4
    3 7/8
    1
    TL-08.00-C*
    2-3 1/8
    4 13/16
    12 5/16
    21 5/16
    3 3/4
    13 1/8
    4 3/4
    3 7/8
    1
    TL-08.00-D*
    3-4 1/8
    4 13/16
    12 5/16
    21 5/16
    3 3/4
    14 1/8
    4 3/4
    3 7/8
    1
    TL-12.00-A*
    12
    1/2-2 1/2
    6 1/4
    15 1/8
    26 3/16
    3 7/8
    14 1/2
    6 3/4
    4 3/8
    1 3/4
    TL-12.00-B*
    2-4
    6 1/4
    15 1/8
    26 3/16
    3 7/8
    16
    6 3/4
    4 3/8
    1 3/4
    TL-12.00-C*
    3-5
    6 1/4
    15 1/8
    26 3/16
    3 7/8
    17
    6 3/4
    4 3/8
    1 3/4
    TL-12.00-D*
    5 1/2-7 1/2
    6 1/4
    15 1/8
    26 3/16
    3 7/8
    18
    6 3/4
    4 3/8
    1 3/4
    TL-20.00-A*
    20
    1/2-3
    8 1/8
    21 3/4
    36 11/16
    5
    20 11/16
    8 1/16
    6 3/16
    2 3/4
    TL-20.00-B*
    3-5
    8 1/8
    21 3/4
    36 11/16
    5
    22 3/16
    8 1/16
    6 3/16
    2 3/4
    TL-20.00-C*
    5-7
    8 1/8
    21 3/4
    36 11/16
    5
    22 11/16
    8 1/16
    6 3/16
    2 3/4
    TL-20.00-D*
    7-9
    8 1/8
    21 3/4
    36 11/16
    5
    24 11/16
    8 1/16
    6 3/16
    2 3/4

    No operator should engage or attempt to engage in the use of any RENFROE® product until the applicable manual has been
    read and fully understood. Failure to review and utilize recommended applications, operating and
    maintenance instructions could result in serious injury to the operator and others.

    SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.

    *Call 866-392-2829 for availability and pricing
    • Part Number
      TL-01.00-E-SS, TL-08.00-D, TL-08.00-A, TL-08.00-C, TL-08.00-B, TL-06.00-D, TL-06.00-C, TL-06.00-B, TL-06.00-A, TL-04.00-D, TL-00.50-B-SS, TL-00.50-C-SS, TL-00.50-D-SS, TL-02.00-D-SS, TL-02.00-C-SS, TL-02.00-A-SS, TL-02.00-B-SS, TL-01.00-C-SS, TL-01.00-B-SS, TL-01.00-A-SS, TL-01.00-D-SS, TL-00.50-A-SS, TL-04.00-A, TL-04.00-C, TL-01.00-E, TL-01.00-A, TL-12.00-D, TL-12.00-C, TL-12.00-B, TL-12.00-A, TL-00.50-C, TL-00.50-B, TL-00.50-D, TL-01.00-B, TL-01.00-D, TL-01.00-C, TL-04.00-B, TL-02.00-B, TL-02.00-D, TL-02.00-C, TL-02.00-A, TL-20.00-D, TL-20.00-C, TL-20.00-B, TL-20.00-A, TL-00.50-A
    • Description
      Stainless 2 ton - Plate Thickness 2-2 3/4" Model TL Lifting Clamp, 20 ton - Plate Thickness 7-9" Model TL Lifting Clamp, 20 ton - Plate Thickness 5-7" Model TL Lifting Clamp, 20 ton - Plate Thickness 3-5" Model TL Lifting Clamp, 20 ton - Plate Thickness 1/2-3" Model TL Lifting Clamp, 12 ton - Plate Thickness 5 1/2-7 1/2" Model TL Lifting Clamp, 12 ton - Plate Thickness 3-5" Model TL Lifting Clamp, 12 ton - Plate Thickness 2-4" Model TL Lifting Clamp, 12 ton - Plate Thickness 1/2-2 1/2" Model TL Lifting Clamp, 8 ton - Plate Thickness 3-4 1/8" Model TL Lifting Clamp, Stainless 1/2 ton - Plate Thickness 0-5/8" Model TL Lifting Clamp, Stainless 1/2 ton - Plate Thickness 1/2-1" Model TL Lifting Clamp, Stainless 1/2 ton - Plate Thickness 3/4-1 1/4" Model TL Lifting Clamp, Stainless 2 ton - Plate Thickness 1 1/4-2" Model TL Lifting Clamp, Stainless 2 ton - Plate Thickness 3/4-1 1/2" Model TL Lifting Clamp, Stainless 2 ton - Plate Thickness 0-1" Model TL Lifting Clamp, Stainless 1 ton - Plate Thickness 1 1/2-2" Model TL Lifting Clamp, Stainless 1 ton - Plate Thickness 1-1 1/2" Model TL Lifting Clamp, Stainless 1 ton - Plate Thickness 3/4-1 1/4" Model TL Lifting Clamp, Stainless 1 ton - Plate Thickness 1/2-1" Model TL Lifting Clamp, Stainless 1 ton - Plate Thickness 0-3/4" Model TL Lifting Clamp, Stainless 1/2 ton - Plate Thickness 1 1/4-1 3/4" Model TL Lifting Clamp, 8 ton - Plate Thickness 2-3 1/8" Model TL Lifting Clamp, 8 ton - Plate Thickness 1-2 1/8" Model TL Lifting Clamp, 2 ton - Plate Thickness 0-1" Model TL Lifting Clamp, 1 ton - Plate Thickness 1 1/2-2" Model TL Lifting Clamp, 1 ton - Plate Thickness 1-1 1/2" Model TL Lifting Clamp, 1 ton - Plate Thickness 3/4-1 1/4" Model TL Lifting Clamp, 1 ton - Plate Thickness 1/2-1" Model TL Lifting Clamp, 1 ton - Plate Thickness 0-3/4" Model TL Lifting Clamp, 1/2 ton - Plate Thickness 1 1/4-1 3/4" Model TL Lifting Clamp, 1/2 ton - Plate Thickness 3/4-1 1/4" Model TL Lifting Clamp, 1/2 ton - Plate Thickness 1/2-1" Model TL Lifting Clamp, 2 ton - Plate Thickness 3/4-1 1/2" Model TL Lifting Clamp, 2 ton - Plate Thickness 1 1/4-2" Model TL Lifting Clamp, 2 ton - Plate Thickness 2-2 3/4" Model TL Lifting Clamp, 8 ton - Plate Thickness 3/8-1 1/2" Model TL Lifting Clamp, 6 ton - Plate Thickness 3-4 1/8" Model TL Lifting Clamp, 6 ton - Plate Thickness 2-3 1/8" Model TL Lifting Clamp, 6 ton - Plate Thickness 1-2 1/8" Model TL Lifting Clamp, 6 ton - Plate Thickness 1/4-1 3/8" Model TL Lifting Clamp, 4 ton - Plate Thickness 3-4" Model TL Lifting Clamp, 4 ton - Plate Thickness 2-31" Model TL Lifting Clamp, 4 ton - Plate Thickness 1-2" Model TL Lifting Clamp, 4 ton - Plate Thickness 3/16-1 1/4" Model TL Lifting Clamp, 1/2 ton - Plate Thickness 0-5/8" Model TL Lifting Clamp
    • Brand
      J.C. Renfroe, Made in the USA
    Part Number Description Brand Weight Price Quantity
    TL-00.50-A 1/2 ton - Plate Thickness 0-5/8" Model TL Lifting Clamp J.C. Renfroe 9 lbs $735.00 + -
    TL-01.00-A 1 ton - Plate Thickness 0-3/4" Model TL Lifting Clamp J.C. Renfroe 14 lbs $852.00 + -
    • $735.00
