Screw Pin Anchor Shackle Hex Head Pin No. 264

Skookum

Skookum Gold Standard Forgings
All sizes are forged, quenched and tempered
Standard Painted Finish (zinc plate or galvanized finish) are available upon request
Custom sized & materials (stainless steel, etc..) are available upon request
Superior strength, hardness & uniformity
Size & working load permanently imprinted
Material heat codes imprinted on bale and pin
Short Tons - Design factor is 5 to 1
Specifications subject to change without notice

Skookum All Alloy Anchor Shackles

Made in the USA!

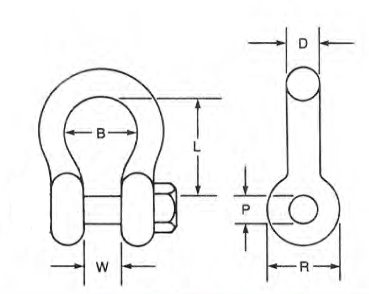

Part Number	WLL (tons)	Size	DIMENSIONS								Weight
Part Number	WLL (tons)	Size	D	W	(W) Tolerance +	L	(L) Tolerance +	B	R	P	Weight
626404	5	1/2"	0.63	0.41	0.63	1.88	0.13	1.28	1.44	0.63	1.00
626405	7	5/8"	0.75	1.06	0.63	2.50	0.13	1.75	1.63	0.75	2.00
626406	9	3/4"	0.88	1.25	0.63	2.88	0.25	2.00	1.84	0.88	3.00
626407	12	7/8"	1.00	1.44	0.63	3.31	0.25	2.28	2.13	1.00	4.00
626408	16	1"	1.13	1.69	0.63	3.75	0.25	2.69	2.25	1.13	5.50
626409	18	1-1/8"	1.13	1.81	0.63	4.25	0.25	2.94	2.63	1.25	8.00
626410	21	1-1/4"	1.25	2.03	0.63	4.63	0.25	3.25	3.00	1.38	11.00
626411	26	1-3/8"	1.38	2.25	0.13	5.25	0.25	3.63	3.25	1.50	14.00
626412	31	1-1/2"	1.50	2.38	0.13	5.75	0.25	3.88	3.44	1.63	18.00
626413	35	1-5/8"	1.63	2.63	0.13	6.25	0.25	4.63	4.00	1.75	23.00
626414	41	1-3/4"	1.75	2.88	0.13	7.00	0.25	5.00	4.25	2.00	30.00
626416	52	2"	2.00	3.25	0.13	7.75	0.50	5.75	5.00	2.25	42.00
