    • Lifting/Spreader Beams
    • Lifting Beams
    • Non-Conductive
    • Non-Conductive Lifting Beam
    Non-Conductive Lifting Beam
    • Non-Conductive Lifting Beam Non-Conductive Lifting Beam
    Non-Conductive Lifting Beam

    Non-Conductive Lifting Beam

    • $2239.49
    • Manufactured to exceed all ASME B30.20 and OSHA regulations.
    • Painted safety yellow for increased visibility.
    • ALL Lifting Beams proof loaded and shipped with certification paperwork.
    • Durable construction ideally suited to jobsite or warehouse use.
    • Made in U.S.A.
    • Custom lettering available - call for details.
    • Custom designs available - call for engineering.
    • ALL lifting equipment individually proof loaded per OSHA requirements.
    • All dimensions in inches unless otherwise noted.
    • Quick and easy adjustment of unbalanced loads.
    • Ideally suited to handle large batteries
    • Natural spark proof insulation
    • Optional Hooks and Lug connections available
    • Weight
      70.0000 lbs
    • SKU
      17171

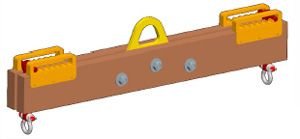

    M & W non conductive lifting beam
    American Flag
    Made in the USA!

    Part
    Number
    Working Load Limit
    in Pounds*

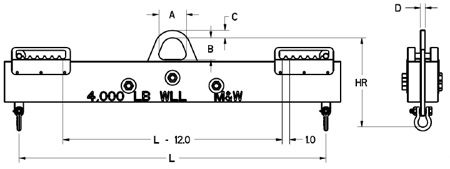

    A
    B
    C
    D
    HR
    L min
    L max
    Weight
    lbs
    17441
    2,000
    3.8
    3.0
    1.0
    0.63
    10.15
    18.0
    30.0
    55
    17442
    2,000
    3.8
    3.0
    1.0
    0.63
    10.15
    30.0
    42.0
    67
    17443
    4,000
    3.8
    3.0
    1.0
    0.63
    12.20
    18.0
    30.0
    57
    17171
    4,000
    3.8
    3.0
    1.0
    0.63
    12.20
    30.0
    42.0
    70
    * Call for specifications on larger sizes and capacities 866.392.2829
    17171 17443 17442 17441
    17171 17443 17442 17441
    • Part Number
      17171, 17441, 17442, 17443, 22094
    • Description
      2,000 lbs. WLL Non Conductive Lifting Beam, 4,000 lbs. WLL Non Conductive Lifting Beam, Battery J Hook - Sold Each
    • Brand
      M&W, Made in the USA
    Part Number Description Brand Weight Price Quantity
    17171 4,000 lbs. WLL Non Conductive Lifting Beam M&W 70 lbs $2239.49 + -
    17441 2,000 lbs. WLL Non Conductive Lifting Beam M&W 55 lbs $1772.36 + -
    17442 2,000 lbs. WLL Non Conductive Lifting Beam M&W 67 lbs $1896.01 + -
    17443 4,000 lbs. WLL Non Conductive Lifting Beam M&W 57 lbs $2115.84 + -
    22094 Battery J Hook - Sold Each M&W 2 lbs $225.06 + -
    • $2239.49
