Plate Clamp - Straight

Non-welded Construction.
No Minimum Load
Camming Stationary Jaw
Camming Stationary Jaw Automatically Returns to Preload Position
Self Locking Jaw Closed Mechanism
Self Locking Jaw Open Mechanism
0 – 180 Degree Turning Permissible
Clamp can be mounted to the work piece without the need
for the operator to put hands in the fall path of the work piece
Designed with a 5 –1 Design Factor Criteria

ASME B30.20 Operation Compliant
ASME B30.BTH -1 Design Compliant
Working Load Limit (WLL) Clearly
and Legibly Marked on the Clamp
Serial Number Clearly and Legibly Marked on the Clamp
Materials of Manufacture Remain Stable Under Load
Clamps Can Be Used to Lift Materials with a
Surface Hardness of up to 400 Brinell.
Clamps must be used in accordance with the
Instructions in the Operator Manual.
Operating temperature -40 to 170° Fahrenheit.

plate clamps

Part Number	Description	Brand	Weight	Price	Quantity
21336	Jaw 0 - 0.5 Straight Plate Clamp WLL 0 - 1,100 lbs.	M&W	6.1 lbs	$741.92	+ -
21716	Jaw 0.5 - 1.0 Straight Plate Clamp WLL 0 - 1,100 lbs.	M&W	6.4 lbs	$769.40	+ -
21717	Jaw 1.0 - 1.5 Straight Plate Clamp WLL 0 - 1,100 lbs.	M&W	6.7 lbs	$796.87	+ -

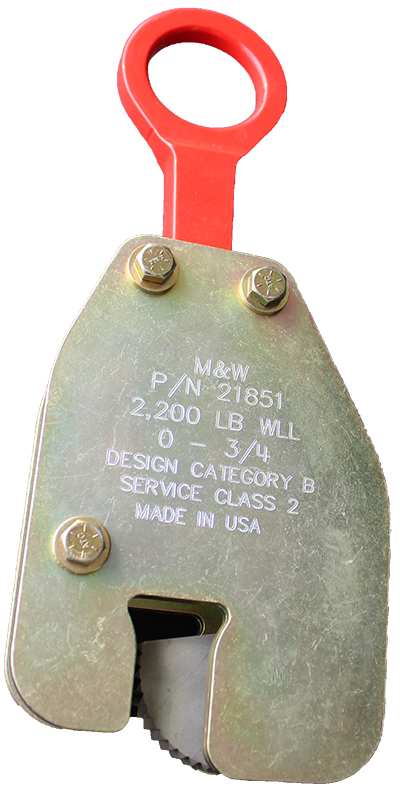

21851	Jaw 0 - 0.75 Straight Plate Clamp WLL 0 - 2,200 lbs.	M&W	11.2 lbs	$1002.96	+ -
21852	Jaw 0.75 - 1.5 Straight Plate Clamp WLL 0 - 2,200 lbs.	M&W	11.9 lbs	$1030.44	+ -
21853	Jaw 1.5 - 2.25 Straight Plate Clamp WLL 0 - 2,200 lbs.	M&W	12.6 lbs	$1057.92	+ -
21912	Jaw 0 - 1.0 Straight Plate Clamp WLL 0 - 4,400 lbs.	M&W	19.8 lbs	$1065.34	+ -
21913	Jaw 1.0 - 2.0 Straight Plate Clamp WLL 0 - 4,400 lbs.	M&W	21.5 lbs	$1138.43	+ -
21914	Jaw 2.0 - 3.0 Straight Plate Clamp WLL 0 - 4,400 lbs.	M&W	24 lbs	$1211.80	+ -
22685	Jaw 0 - 1.0 Straight Plate Clamp WLL 0 - 11,000 lbs.	M&W	66 lbs	$3022.63	+ -
22686	Jaw 1.5 - 3.0 Straight Plate Clamp WLL 0 - 11,000 lbs.	M&W	70 lbs	$3074.97	+ -
22687	Jaw 3.0 - 4.5 Straight Plate Clamp WLL 0 - 11,000 lbs.	M&W	74 lbs	$3127.31	+ -
