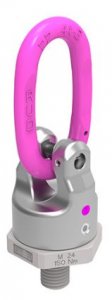

PP-B PowerPoint® (Eye) Ring Connection

The first generation of lifting points with a double ball bearing for jerk -
free turning, swiveling and tilting.
The optimised design prevents the lifting points as well as the load from being damaged.
Even under full load, can be turned in a 90° position from the bolt centre line.
Not suitable for permanent swiveling under full load.

Maximum WLL with the smallest thread diameter. Thread length : 18 mm
Version PP-B: The ring connection for hook assemblies.

Easy identification of WLL
Loadable in any direction: Safety factor 4:1
Double ballbearing for free turning and soft winding
Cr, Ni, Mo-steel special quenched and tempered
All parts 100% crack detectedl Max. load limit at smallest thread diameter
Variable screw lengths available
Can also be used for through holes
Surface: pink powder coated
Fast amortization because of easy handling
Can be turned under full load even in a 90° position from the bolt centre line.
Not suitable for permanent swivelling under full load

*Not all sizes are stocked in the US.

Type	Part Number	WLL (Lbs)	DIMENSIONS INCHES
"Metric" Threaded
Type	Part Number	WLL (Lbs)	A	B	C	D	T	F	G	M	E
PP-B-0.63t-M12	7989522*	1,385 Lbs	0.38"	2.56"	1.38"	1.56"	4.13"	0.69"	1.63"	M12	1.50"
PP-B-1.5t-M16	7989523	3,300 Lbs	0.44"	2.56"	1.38"	1.81"	4.53"	0.94"	2.00"	M16	1.63"
PP-B-2.5t-M20	7989081*	5,500 Lbs	0.50"	2.94"	1.56"	2.41"	5.31"	1.19"	2.41"	M20	2.16"
PP-B-4t-M24	7989082*	8,800 Lbs	0.63"	3.75"	1.75"	3.06"	6.75"	1.41"	3.06"	M24	2.75"
PP-B-5t-M30	7989524*	11,000 Lbs	0.88"	5.13"	2.38"	3.75"	8.75"	1.81"	3.63"	M30	3.34"
PP-B-8t-M36	7989083*	17,600 Lbs	1.00"	5.50"	2.56"	3.94"	9.50"	2.13"	4.00"	M36	3.56"
"UNC" Threaded
Type	Part Number	WLL (Lbs)	DIMENSIONS INCHES
Type	Part Number	WLL (Lbs)	A	B	C	D	T	F	G	M(UNC)	E
PP-B-0.63t-1/2-13UNC	8600591*	1,385 Lbs	0.38"	2.56"	1.38"	1.56"	4.13"	0.69"	1.63"	1/2"	1.50"
PP-B-1.5t--5/8-11UNC	8600592*	3,300 Lbs	0.44"	2.56"	1.38"	1.81"	4.53"	0.94"	2.00"	5/8"	1.63"
PP-B-2.5t-3/4-10UNC	8600593	5,500 Lbs	0.50"	2.94"	1.56"	2.41"	5.31"	1.19"	2.41"	3/4"	2.16"
PP-B-4t-1-8UNC	8600594*	8,800 Lbs	0.63"	3.75"	1.75"	3.06"	6.75"	1.41"	3.06"	1"	2.75"
PP-B-5t-1-1/4-7UNC	8600595*	11,000 Lbs	0.88"	5.13"	2.38"	3.75"	8.75"	1.81"	3.63"	1-1/4"	3.34"

*Call 866-392-2829 for availability and pricing - Not stocked in the US.

Part Number	Description	Brand	Weight	Price	Quantity
7989523	PP-B-1.5t-M16 PP-B PowerPoint Ring/Eye Connection	RUD	1.5 lbs	$303.00	+ -
8600593	PP-B-2.5t-3/4-10UNC PP-B PowerPoint Ring/Eye Connection	RUD	2.43 lbs	$303.00	+ -
