PP-B PowerPoint® Ring Connection

The first generation of lifting points with a double
ball bearing for jerk - free turning, swiveling and tilting.
The optimised design prevents the lifting points as
well as the load from being damaged.
Even under full load, can be turned in a 90° position
from the bolt centre line.
Not suitable for permanent swiveling under full load.

Maximum WLL with the smallest thread diameter. Thread length : 18 mm
Version PP-B: The ring connection for hook assemblies.

Easy identification of WLL
Loadable in any direction: Safety factor 4:1
Double ballbearing for free turning and soft winding
Cr, Ni, Mo-steel special quenched and tempered
All parts 100% crack detectedl Max. load limit at smallest thread diameter
Variable screw lengths available
Can also be used for through holes
Surface: pink powder coated
Fast amortization because of easy handling
Can be turned under full load even in a 90° position from the bolt centre line.
Not suitable for permanent swivelling under full load

RUD Chain

Lifting Points Logo

Loadable in any direction

All RUD - CAD files
available upon request.

DXF 2d CAD File
IGES 3D CAD File
STEP 3D CAD File

Call for special order 866-392-2829

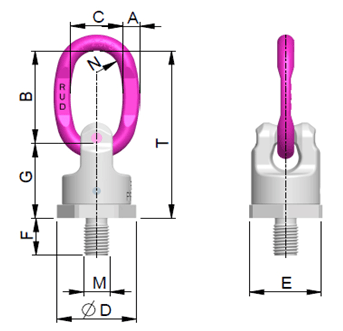

PP B Specifications drawing

All types in special thread lengths available.

Download WLL
(324 kb)

Click above for
working load limit at various
angle & ring configurations

A .pdf reader is required.

Type	Part Number	WLL (Lbs)	DIMENSIONS INCHES
"Metric" Threaded
Type	Part Number	WLL (Lbs)	A	B	C	D	T	F	G	M	E
PP-B-0.63t-M12	7989522	1,385 Lbs	0.38"	2.56"	1.38"	1.56"	4.13"	0.69"	1.63"	M12	1.50"
PP-B-1.5t-M16	7989523	3,300 Lbs	0.44"	2.56"	1.38"	1.81"	4.53"	0.94"	2.00"	M16	1.63"
PP-B-2.5t-M20	7989081	5,500 Lbs	0.50"	2.94"	1.56"	2.41"	5.31"	1.19"	2.41"	M20	2.16"
PP-B-4t-M24	7989082	8,800 Lbs	0.63"	3.75"	1.75"	3.06"	6.75"	1.41"	3.06"	M24	2.75"
PP-B-5t-M30	7989524	11,000 Lbs	0.88"	5.13"	2.38"	3.75"	8.75"	1.81"	3.63"	M30	3.34"
PP-B-8t-M36	7989083	17,600 Lbs	1.00"	5.50"	2.56"	3.94"	9.50"	2.13"	4.00"	M36	3.56"
"UNC" Threaded
Type	Part Number	WLL (Lbs)	DIMENSIONS INCHES
Type	Part Number	WLL (Lbs)	A	B	C	D	T	F	G	M(UNC)	E
PP-B-0.63t-1/2-13UNC	7989901	1,385 Lbs	0.38"	2.56"	1.38"	1.56"	4.13"	0.69"	1.63"	1/2"	1.50"
PP-B-1.5t--5/8-11UNC	7989902	3,300 Lbs	0.44"	2.56"	1.38"	1.81"	4.53"	0.94"	2.00"	5/8"	1.63"
PP-B-2.5t-3/4-10UNC	7989903	5,500 Lbs	0.50"	2.94"	1.56"	2.41"	5.31"	1.19"	2.41"	3/4"	2.16"
PP-B-2.5t-7/8-9UNC	7989904	5,500 Lbs	0.50"	2.94"	1.56"	2.41"	5.31"	1.19"	2.41"	7/8"	2.16"
PP-B-4t-1-8UNC	7989905	8,800 Lbs	0.63"	3.75"	1.75"	3.06"	6.75"	1.41"	3.06"	1"	2.75"
PP-B-5t-1-1/4-7UNC	7989906	11,000 Lbs	0.88"	5.13"	2.38"	3.75"	8.75"	1.81"	3.63"	1-1/4"	3.34"
PP-B-8t-1-1/2-6UNC	7989907	17,600 Lbs	1.00"	5.50"	2.56"	3.94"	9.50"	2.13"	4.00"	1-1/2"	3.56"

Part Number	Description	Brand	Weight	Price	Quantity
7989081	PP-B-2.5t-M20 PP-B PowerPoint Ring Connection	RUD	2.5 lbs	$363.30	+ -
7989082	PP-B-4t-M24 PP-B PP-B PowerPoint Ring Connection	RUD	5.5 lbs	$505.05	+ -
7989083	PP-B-8t-M36 PP-B PP-B PowerPoint Ring Connection	RUD	14 lbs	$1023.75	+ -
7989522	PP-B-0.63t-M12 PP-B PowerPoint Ring Connection	RUD	0.8 lbs	$213.15	+ -
7989523	PP-B-1.5t-M16 PP-B PowerPoint Ring Connection	RUD	1.5 lbs	$228.90	+ -
7989524	PP-B-5t-M30 PP-B PP-B PowerPoint Ring Connection	RUD	11.5 lbs	$660.45	+ -
7989901	PP-B-0.63t-1/2-13UNC PP-B PowerPoint Ring Connection	RUD	0.8 lbs	$235.20	+ -
7989902	PP-B-1.5t--5/8-11UNC PP-B PowerPoint Ring Connection	RUD	1.5 lbs	$247.80	+ -
7989903	PP-B-2.5t-3/4-10UNC PP-B PowerPoint Ring Connection	RUD	2.4 lbs	$392.70	+ -
7989905	PP-B-4t-1-8UNC PP-B PowerPoint Ring Connection	RUD	5.5 lbs	$548.10	+ -
7989906	PP-B-5t-1-1/4-7UNC PP-B PowerPoint Ring Connection	RUD	11.5 lbs	$710.85	+ -
7989907	PP-B-5t-1-1/4-7UNC PP-B PowerPoint Ring Connection	RUD	14 lbs	$1095.15	+ -
7989904	PP-B-2.5t-7/8-9UNC PP-B PowerPoint Ring Connection	RUD	5.5 lbs	$392.70	+ -
