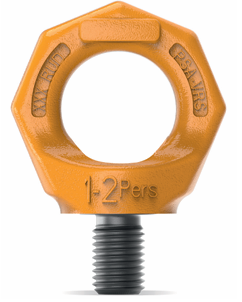

PSA-VRS-Starpoint

PSA-VRS-Starpoint operating temperature is -40°F (-40°C)
to a maximum of 212°F (100°C)

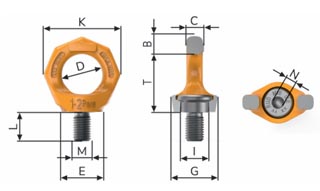

PSA-VRS Spec image In Stock Program

Part Number	Description	WLL (Persons)	DIMENSIONS (mm)											Weight (lbs)
Part Number	Description	WLL (Persons)	T	B	C	D	E	G	I	K	L	M	N	Weight (lbs)
PSA-VRS-Starpoint – Metric Thread
7997100	PSA-VRS-STARPOINT M12	1	42	13	10	30	30	34	19.8	56	18	M12	8	.44
7997854	PSA-VRS-STARPOINT M16	1-2	49	15	15	35	35	40	23.5	65	24	M16	10	.75
7900920	PSA-VRS-STARPOINT M20	1-2	58	18	17	40	42	54	29.3	75	30	M20	12	1.23
8600400*	PSA-VRS-STARPOINT M12 w/ max. length = 150	1	42	13	10	30	30	34	19.8	56	19-150	M12	8	.77
8600401*	PSA-VRS-STARPOINT M16 w/ max. length = 120	1-2	49	15	15	35	35	40	23.5	65	25-120	M16	10	1.06
PSA-VRS-Starpoint – UNC Inch Thread
7997103	PSA-VRS-STARPOINT 1/2"-13UNC	1	42	13	10	30	30	34	19.8	56	18	1/2"-13UNC	5/16"	.44
7998659*	PSA-VRS-STARPOINT 5/8"-11UNC	1-2	49	15	15	35	35	40	23.5	65	24	5/8"-11UNC	3/8"	.73
7903367*	PSA-VRS-STARPOINT 3/4"-10UNC	1-2	58	18	17	40	42	54	29.3	75	30	3/4"-10UNC	1/2"	1.23

Weight depends on the design. Subject to technical changes!

*Call 866-392-2829 for availability and pricing - Not stocked in the US.

Part Number	Description	Brand	Weight	Price	Quantity
7997100	PSA-VRS-STARPOINT M12	RUD	0.44 lbs	$156.00	+ -
7997854	PSA-VRS-STARPOINT M16	RUD	0.75 lbs	$169.00	+ -
7900920	PSA-VRS-STARPOINT M20	RUD	1.23 lbs	$233.00	+ -
7997103	PSA-VRS-STARPOINT 1/2"-13UNC	RUD	0.44 lbs	$156.00	+ -
